Home >> Isuzu >> 2000 >> Hombre S Regular Cab 2WD L4-2.2L CPC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams

Data Link Connector: Diagrams

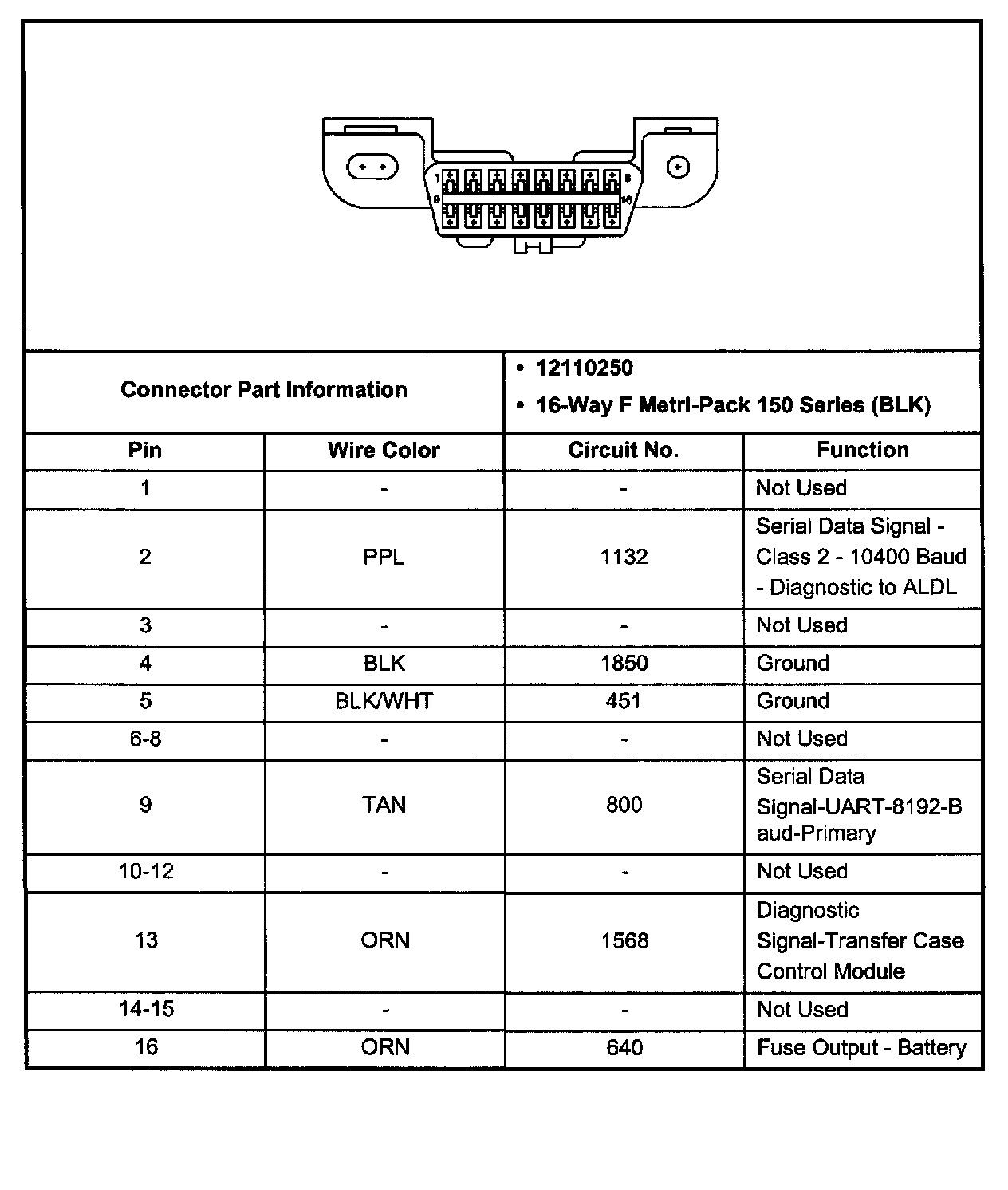

Data Link Connector:
