Automatic Transmission/Transaxle

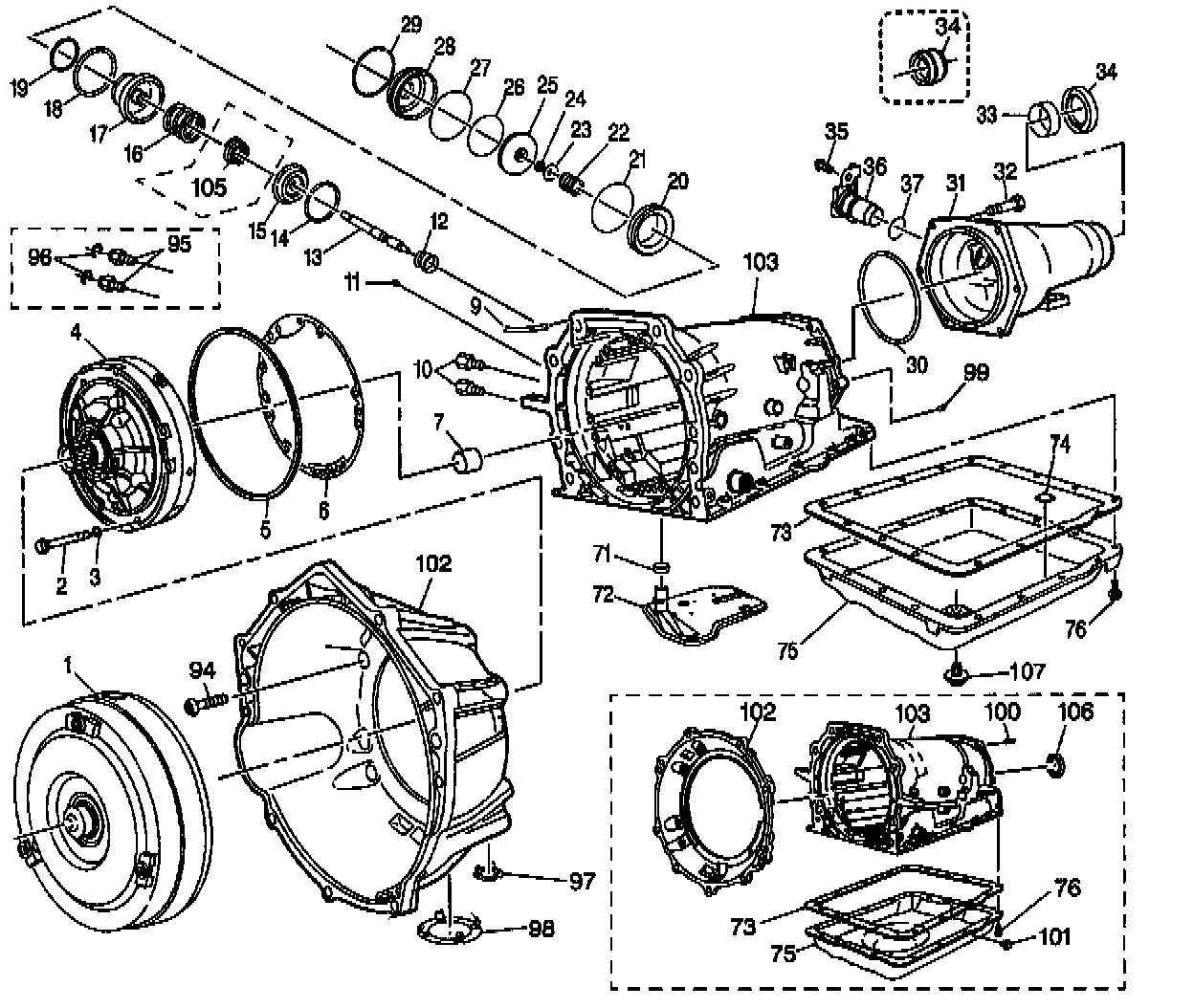

Case and Associated Parts (1 of 2)

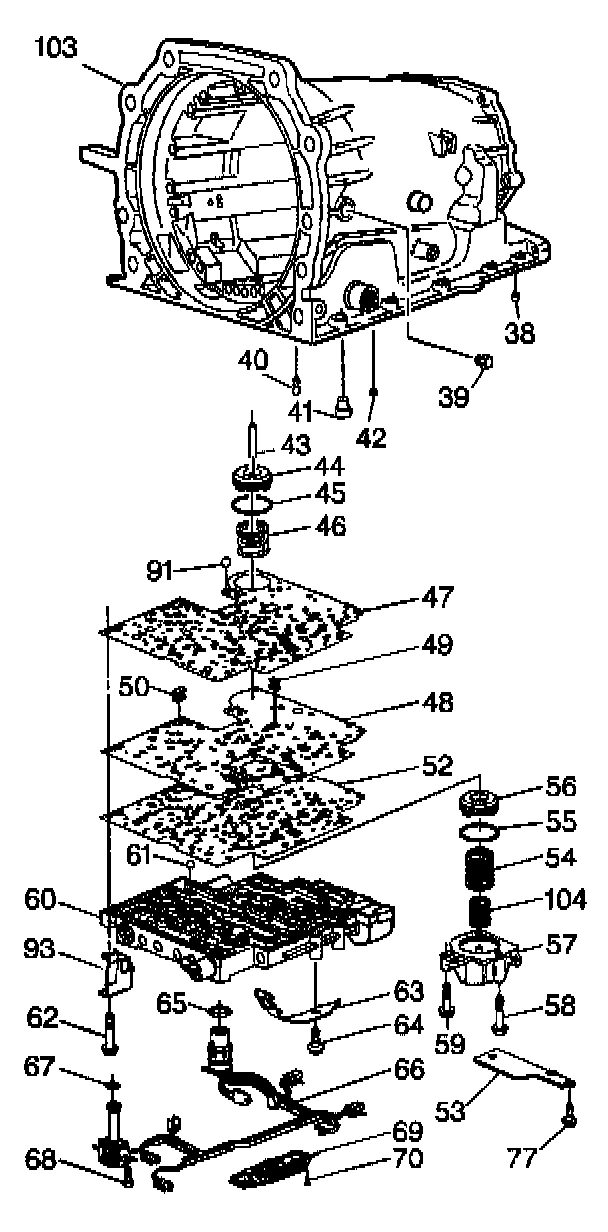

Case and Associated Parts (2 of 2)

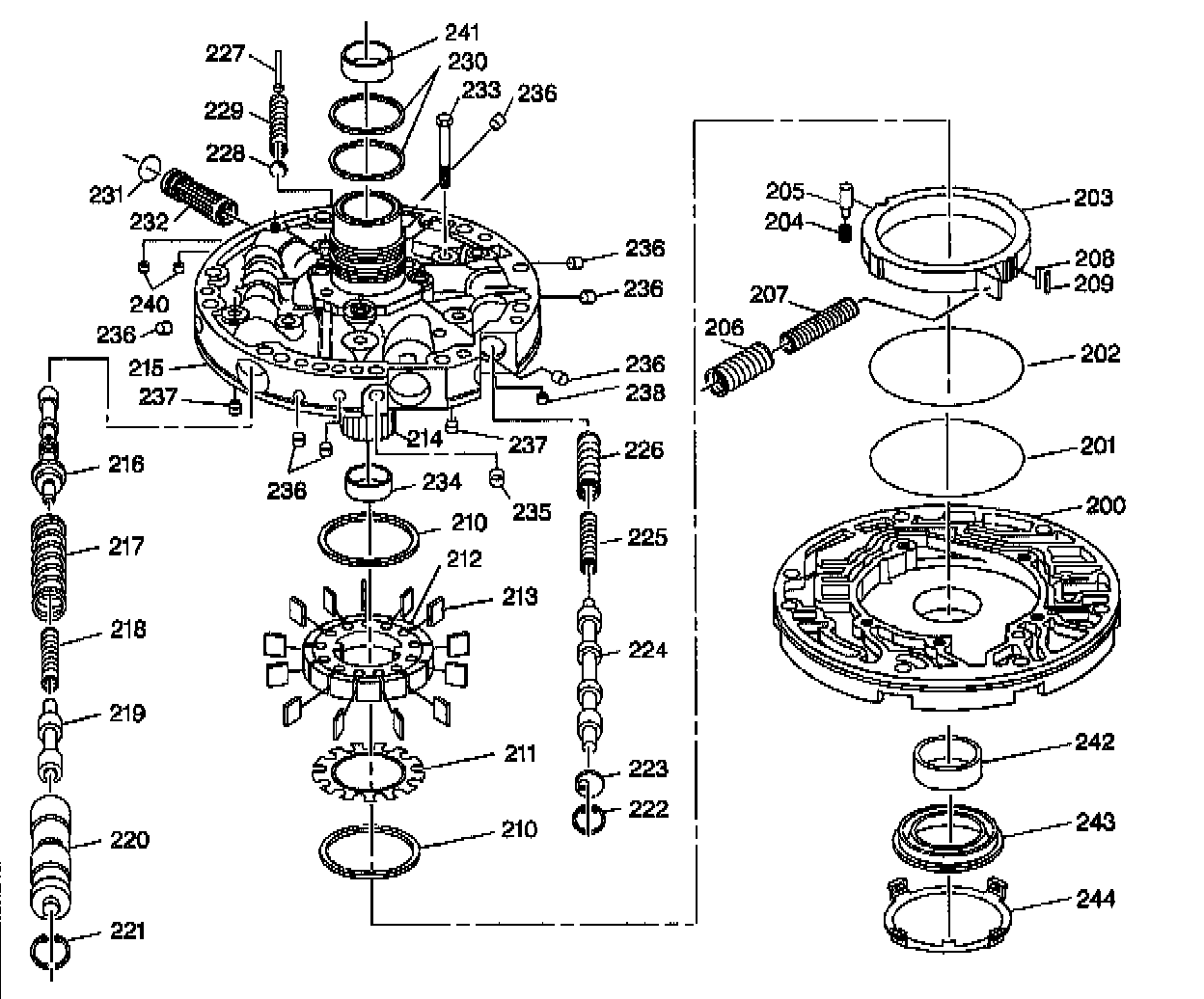

Oil Pump Assembly

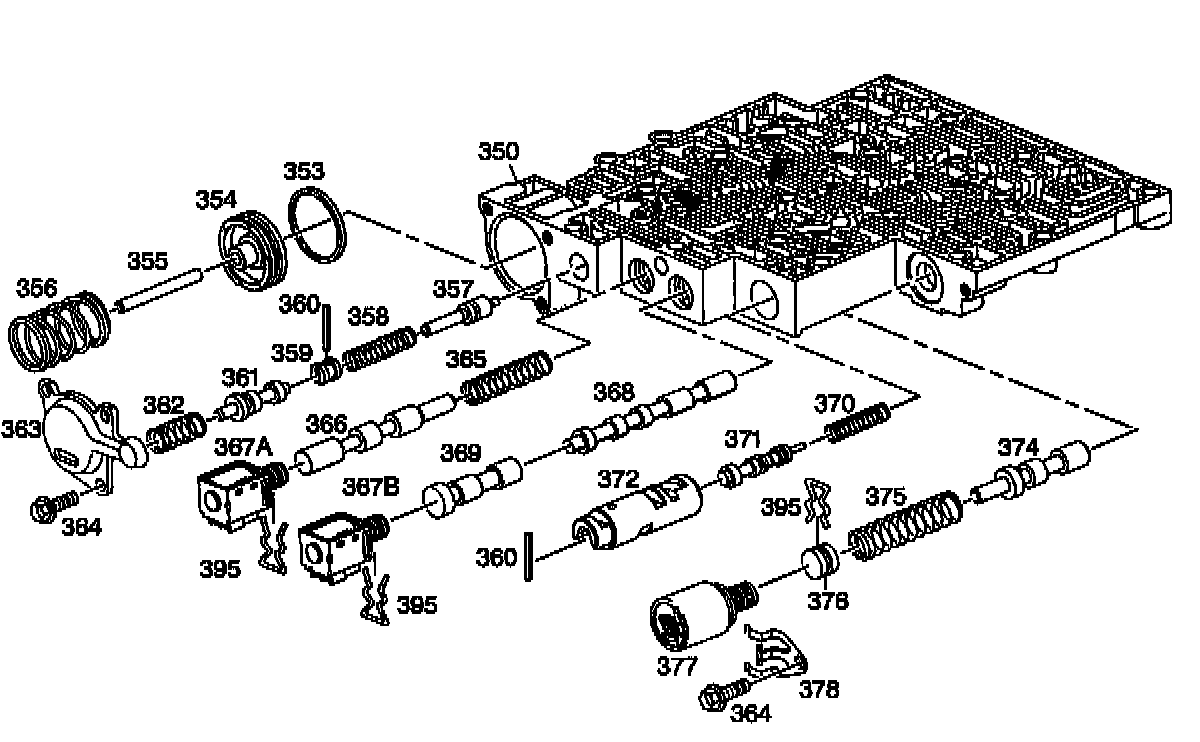

Control Valve Body Assembly (1 of 2)

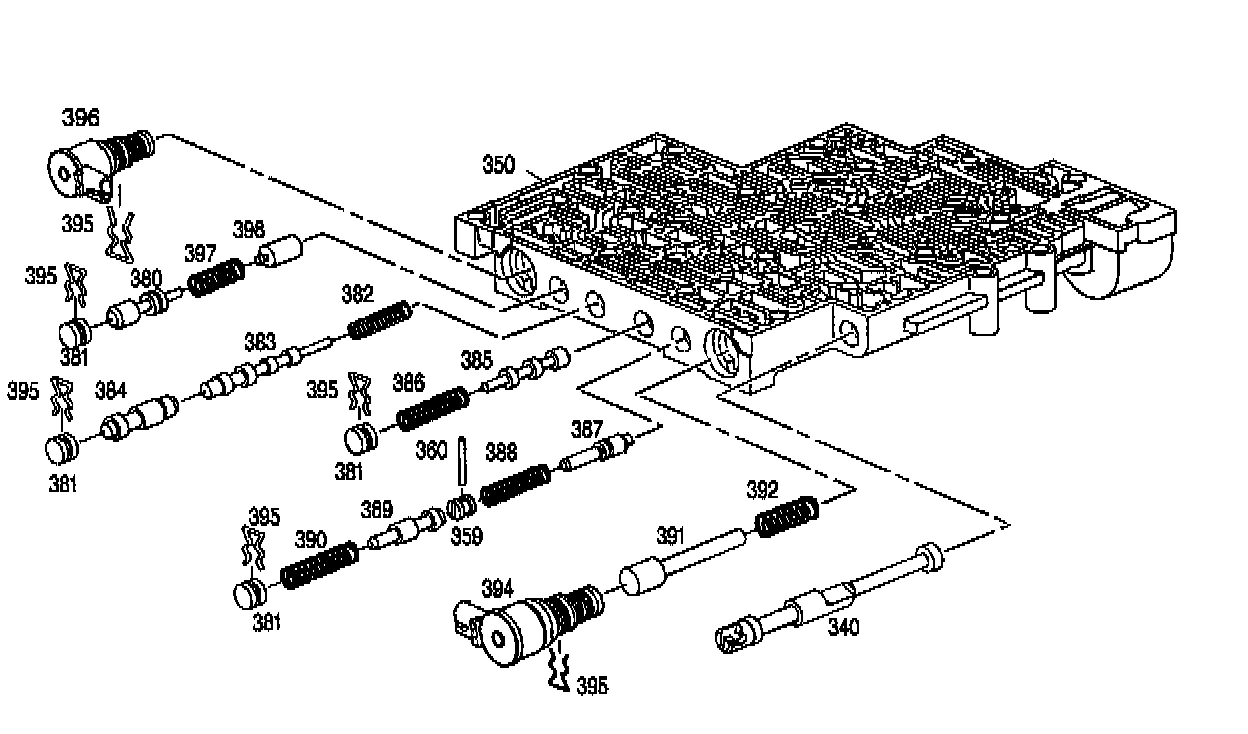

Control Valve Body Assembly (2 of 2)

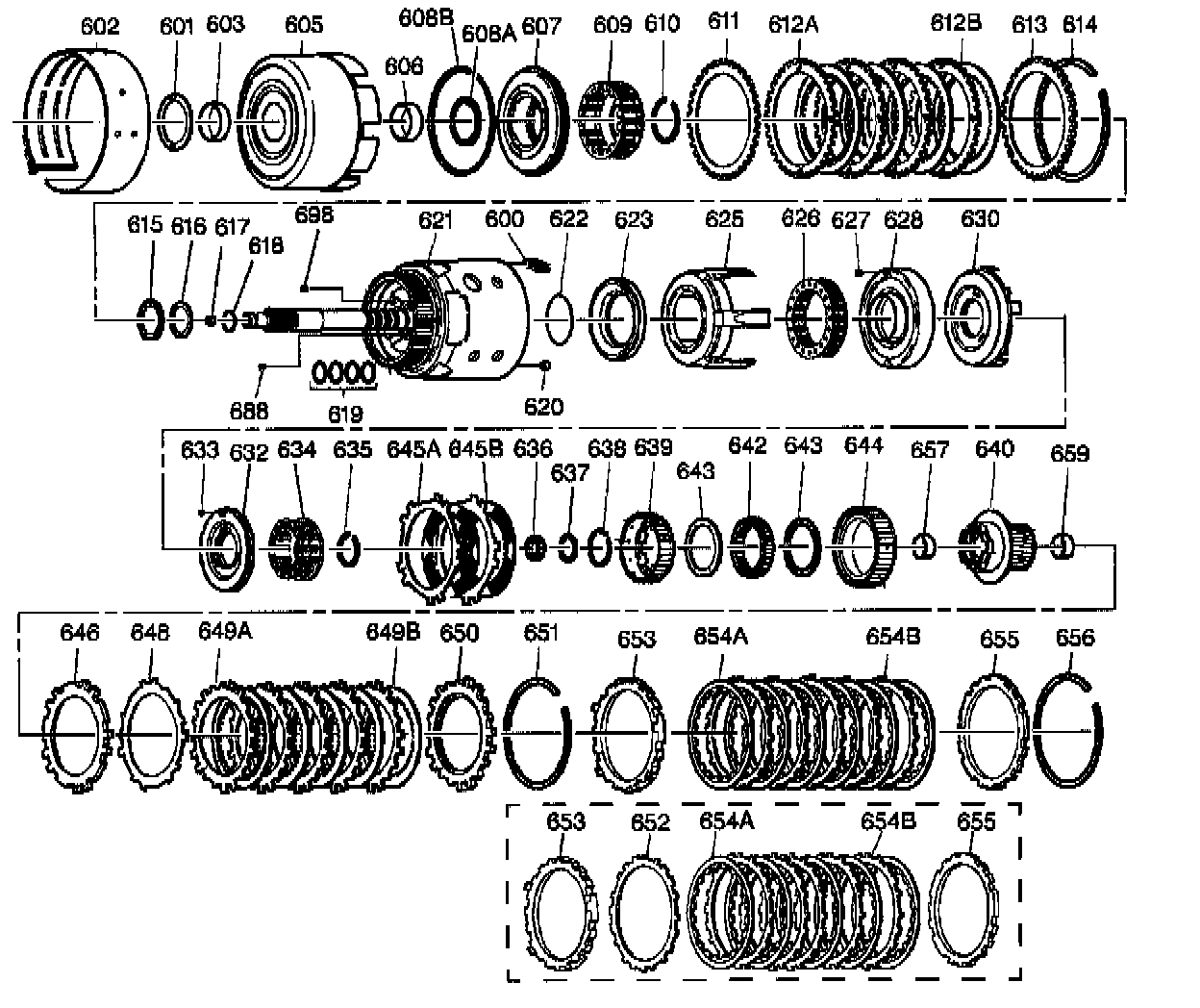

Internal Parts (1 of 2)

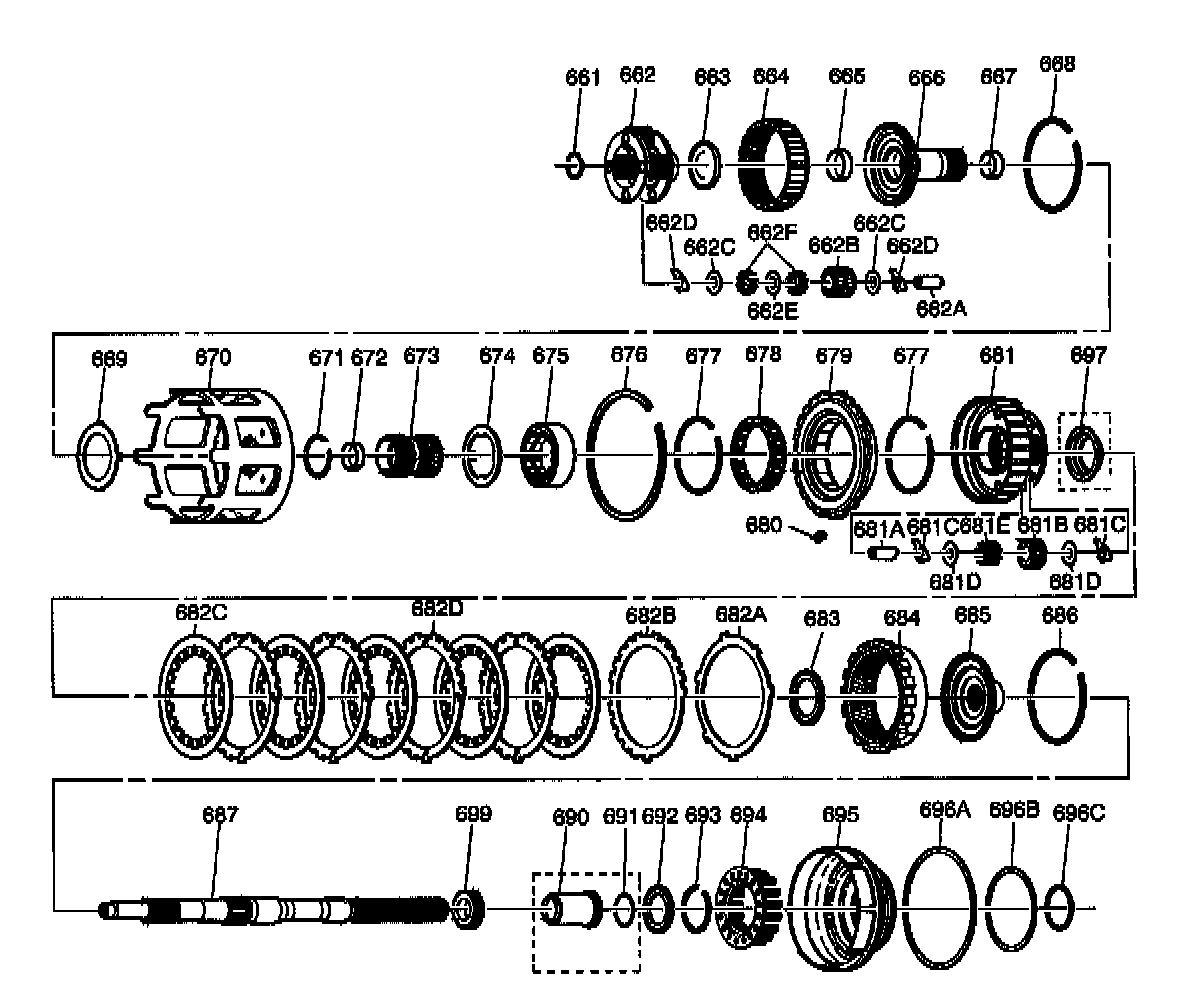

Internal Parts (2 of 2)





Parking Lock and Manual Shift Shaft Assembly
