Home >> Isuzu >> 1999 >> VehiCROSS 4WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Control Arm >> Lower

Lower

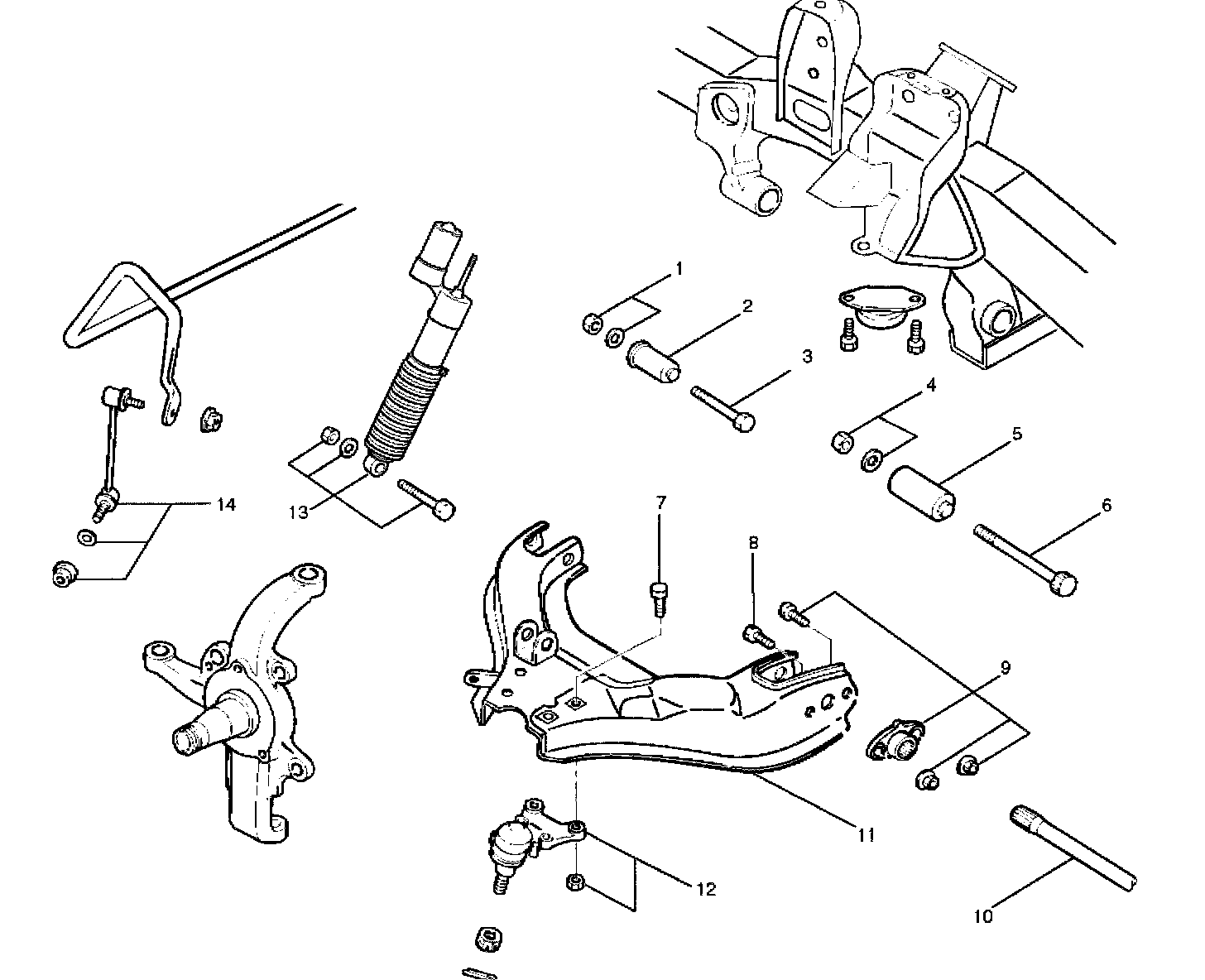

LOWER CONTROL ARM AND ASSOCIATED PARTS





Part 1 of 2





Part 2 of 2
