Automatic Transmission/Transaxle

4L30-E Parts List

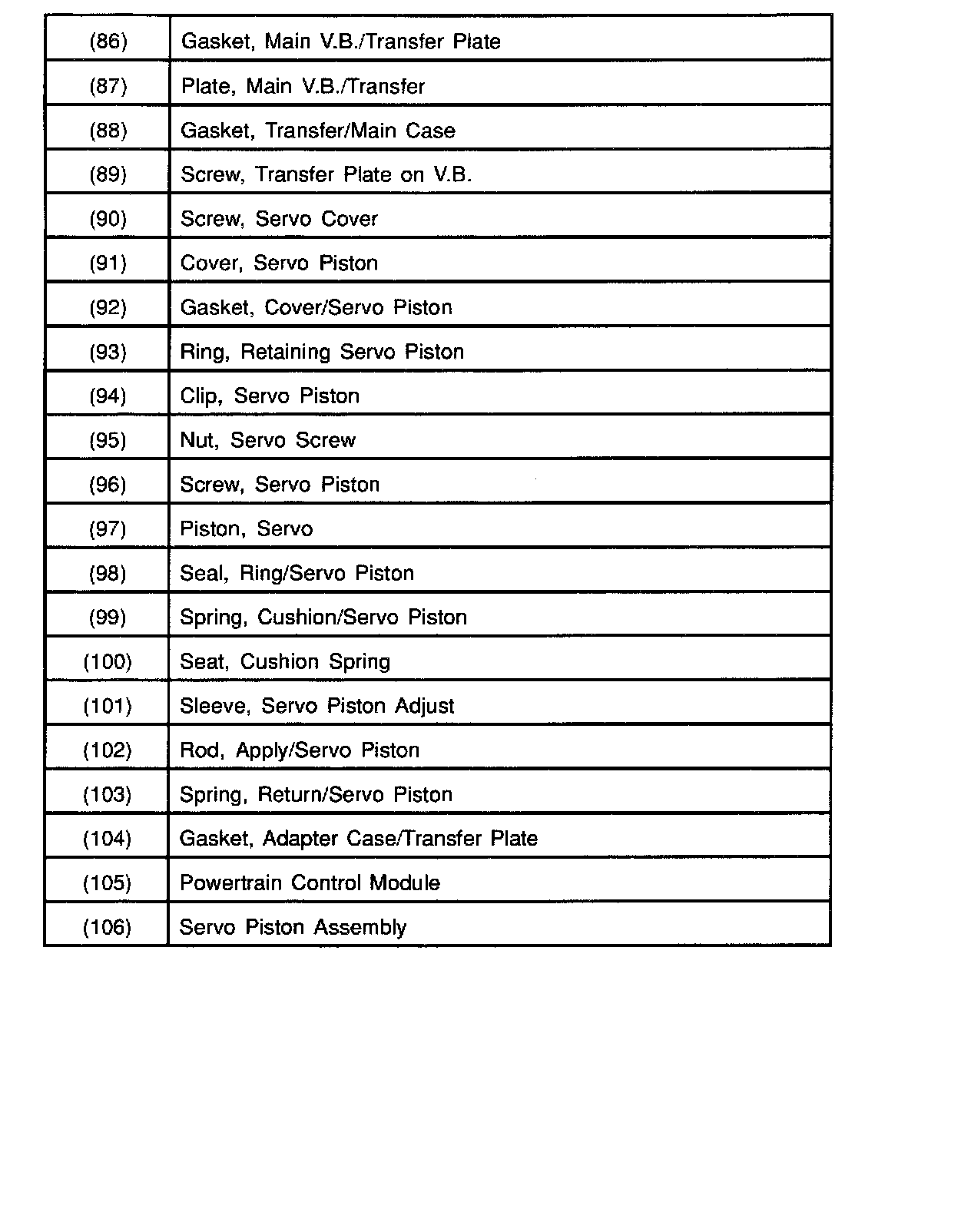

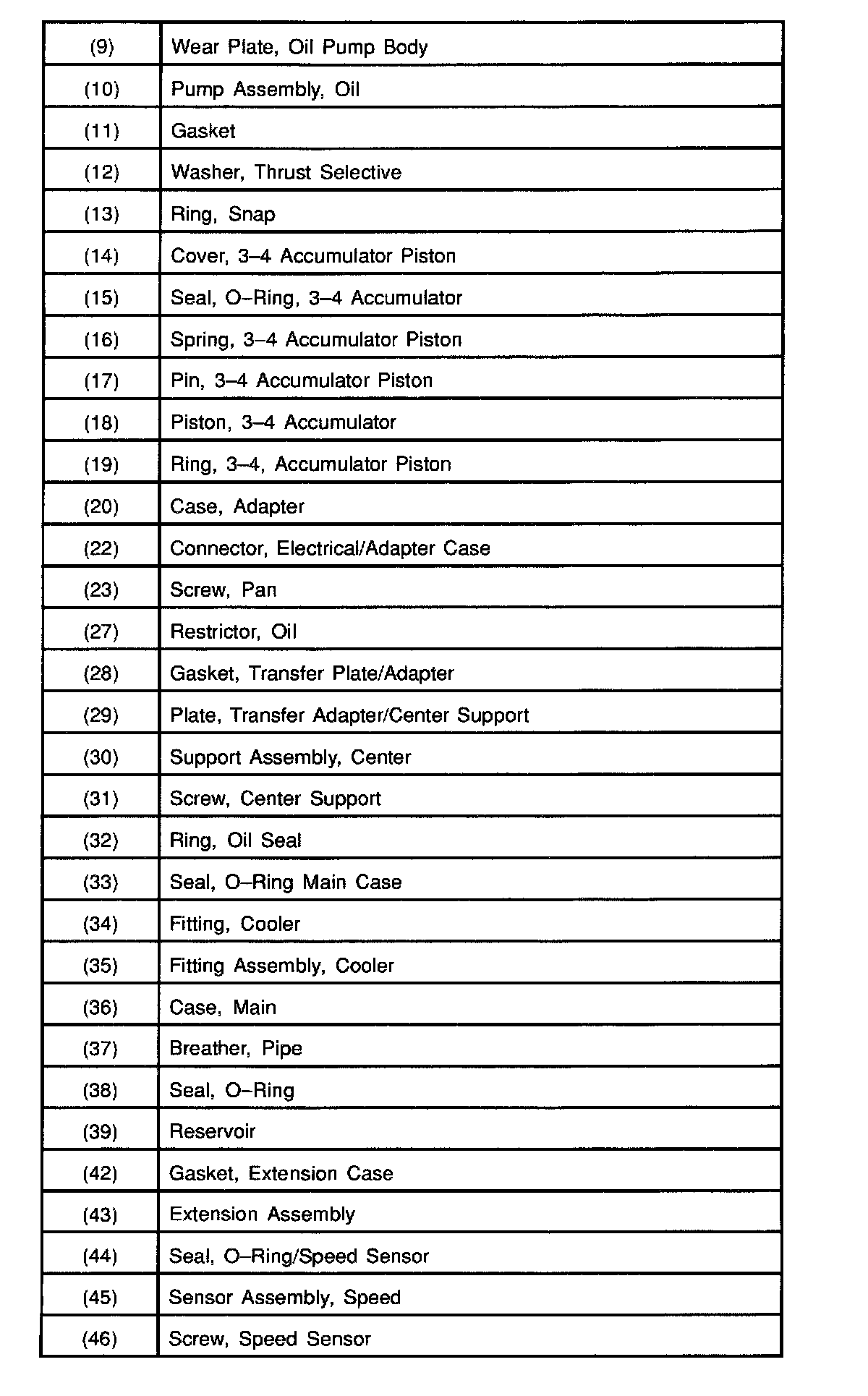

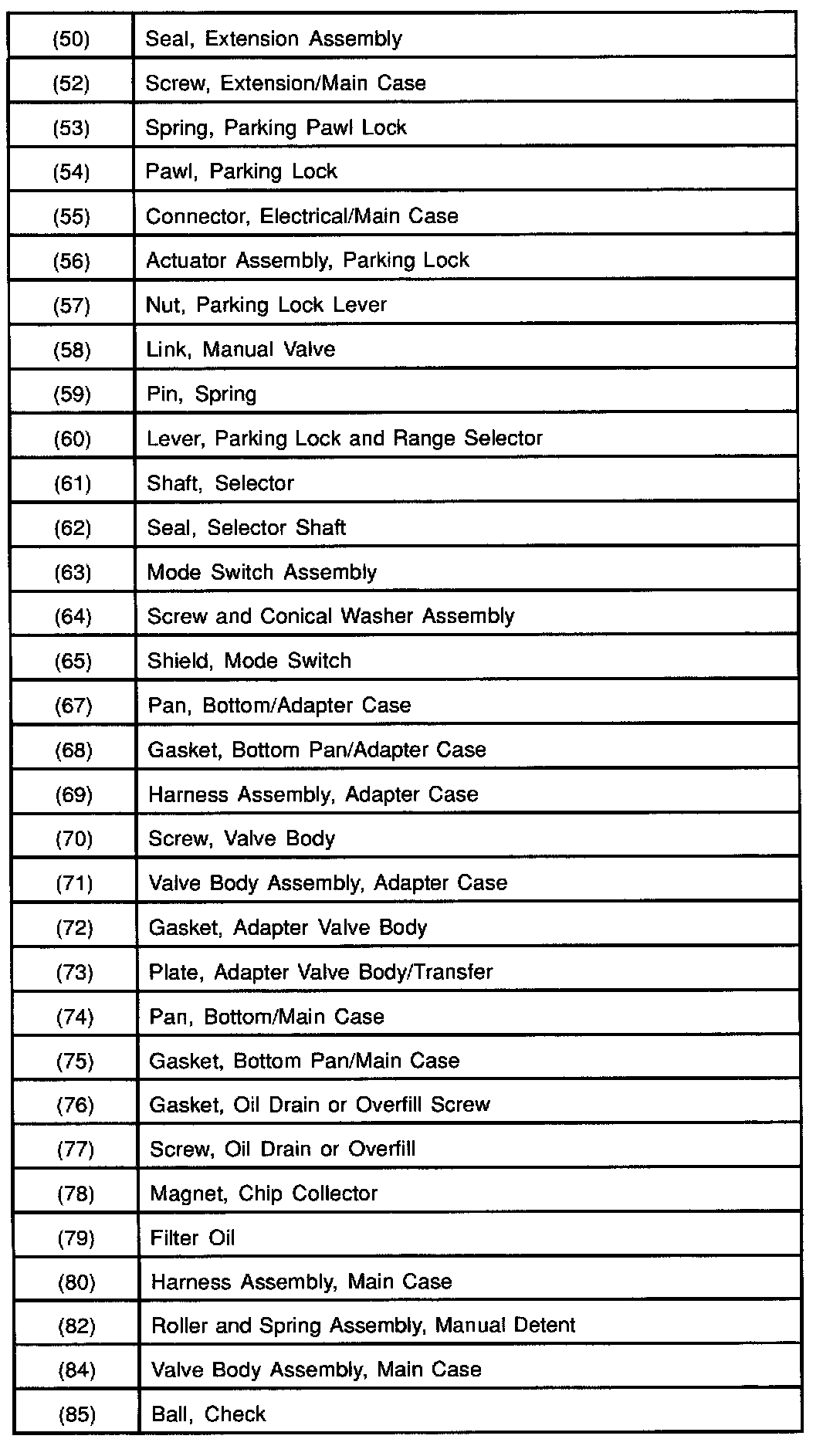

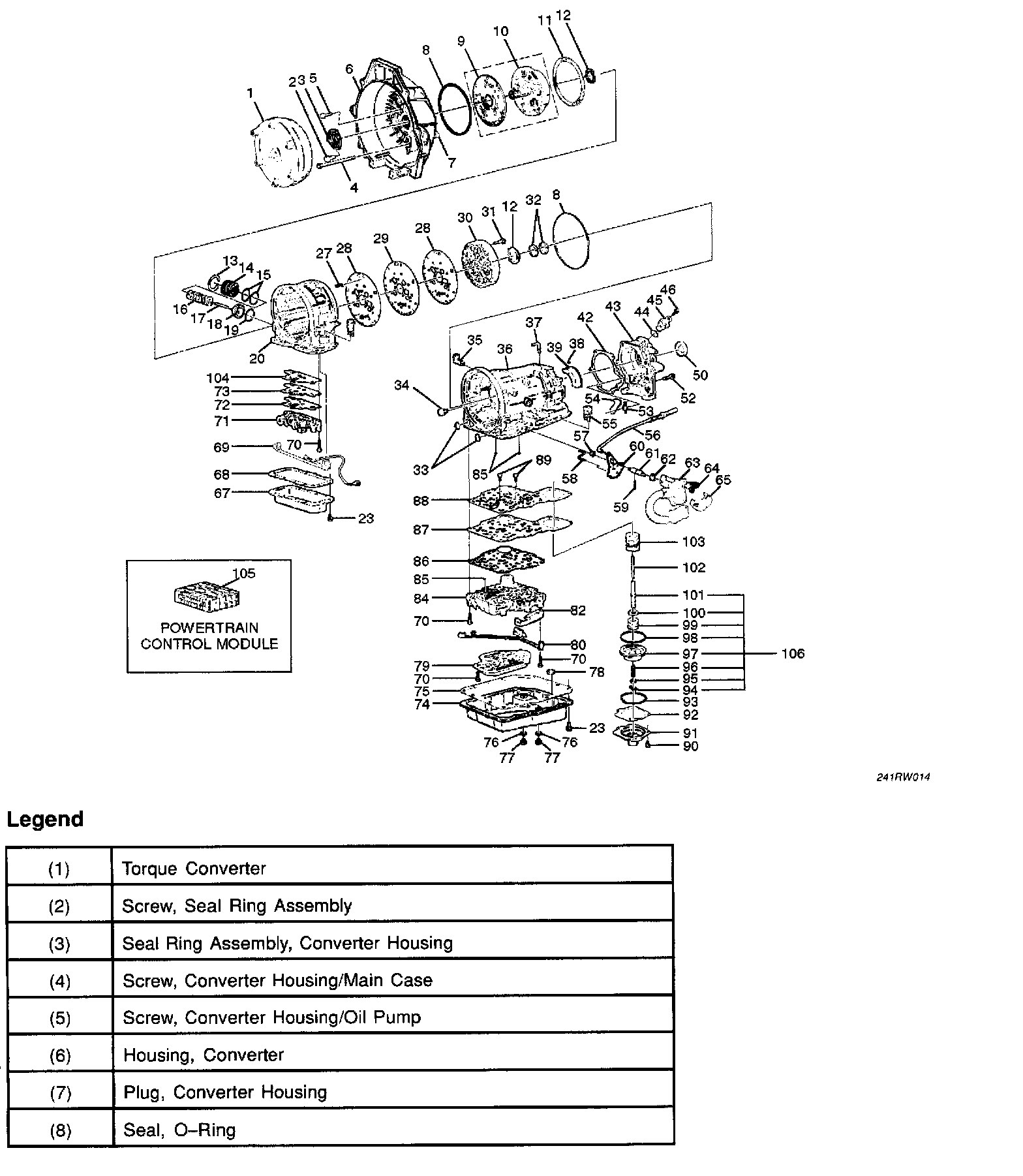

Case And Associated Parts

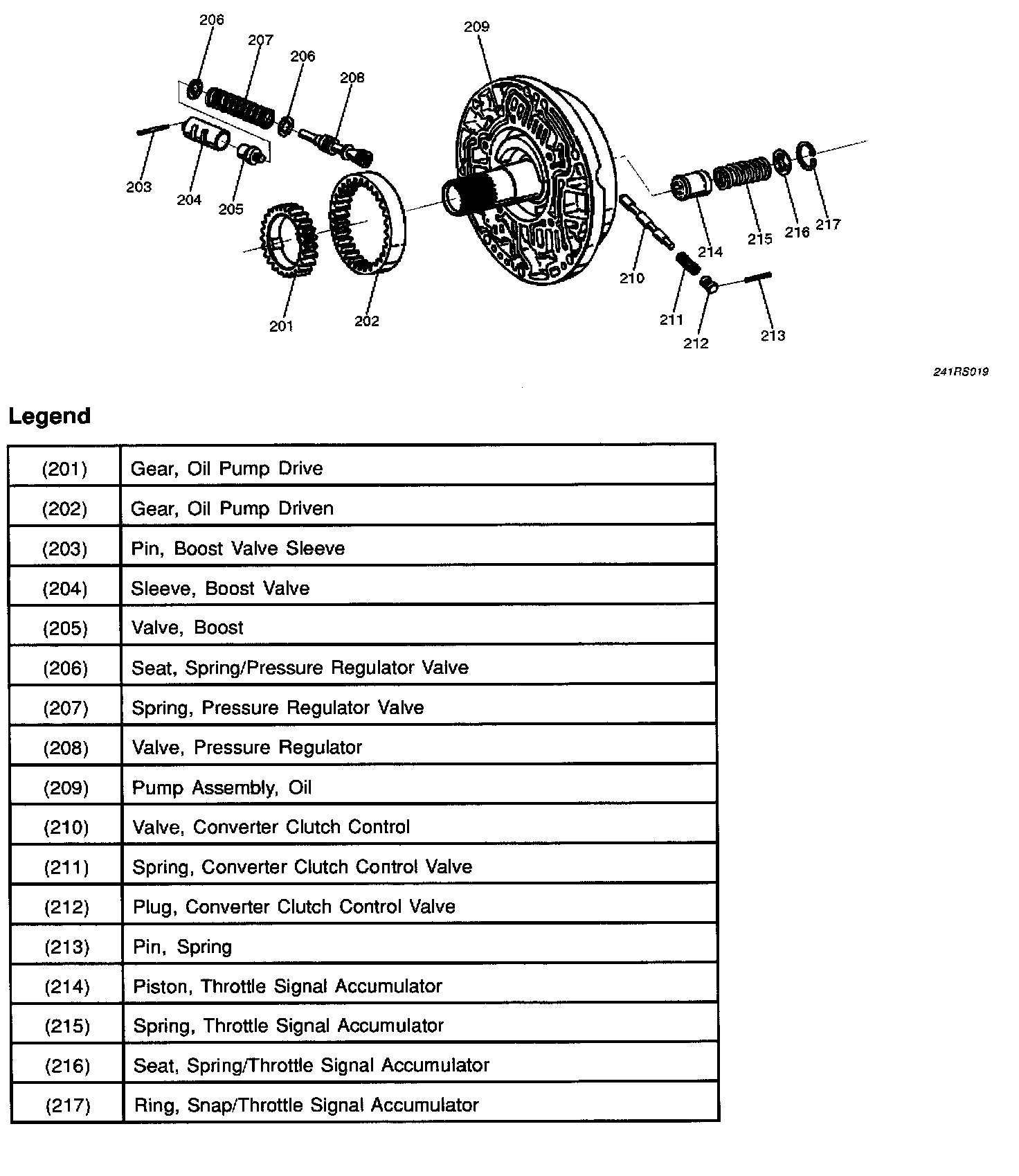

Pump Assembly

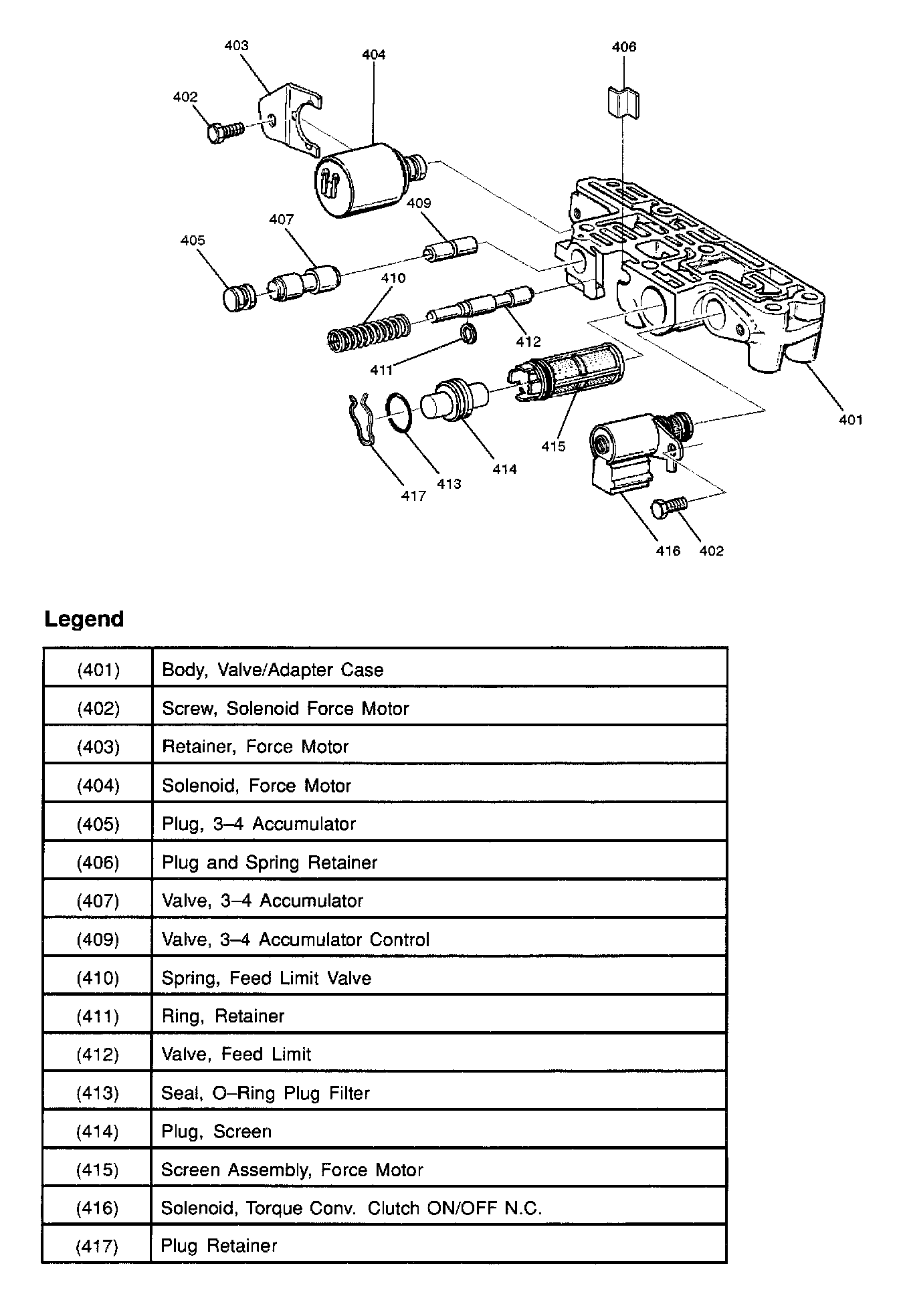

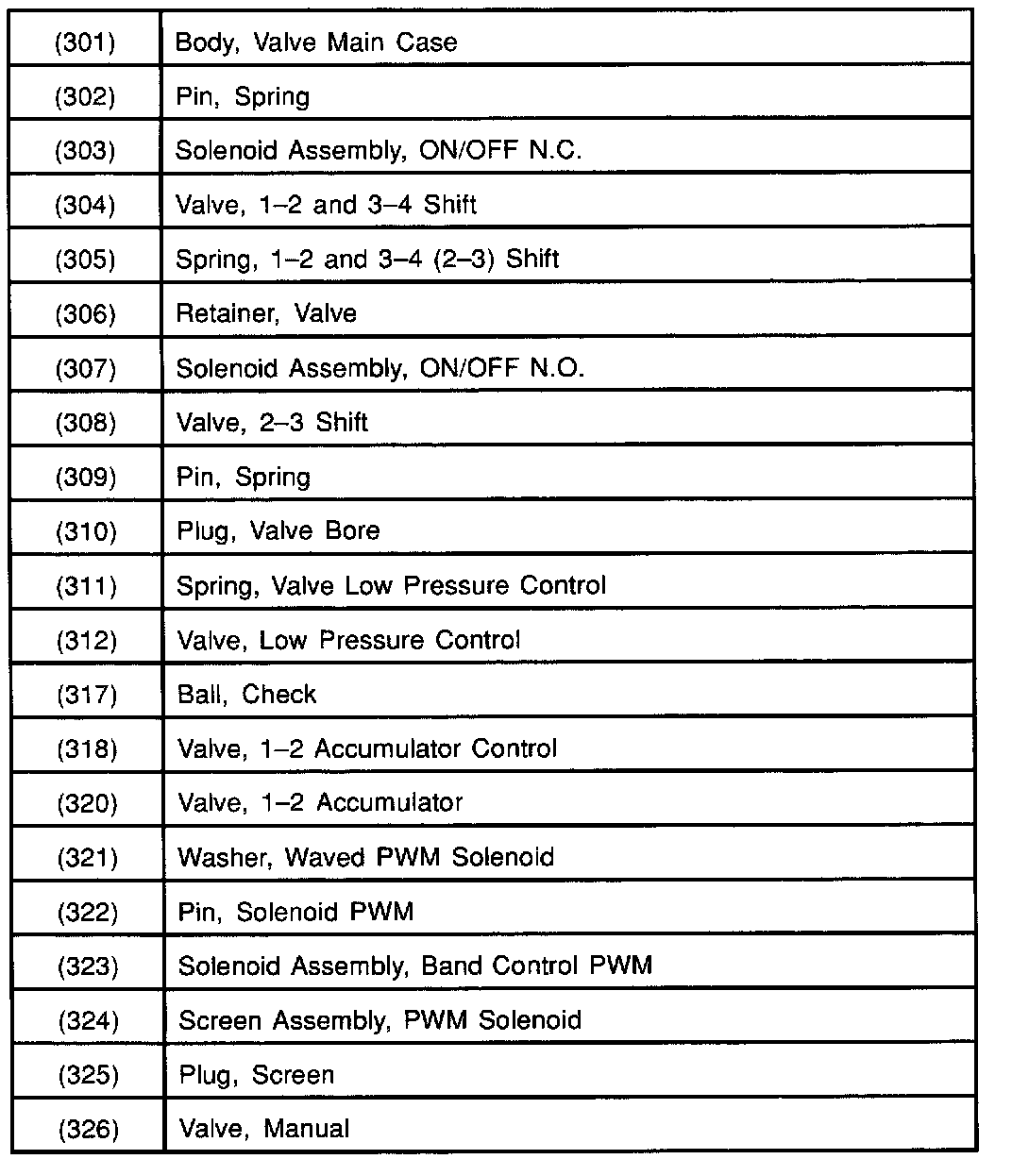

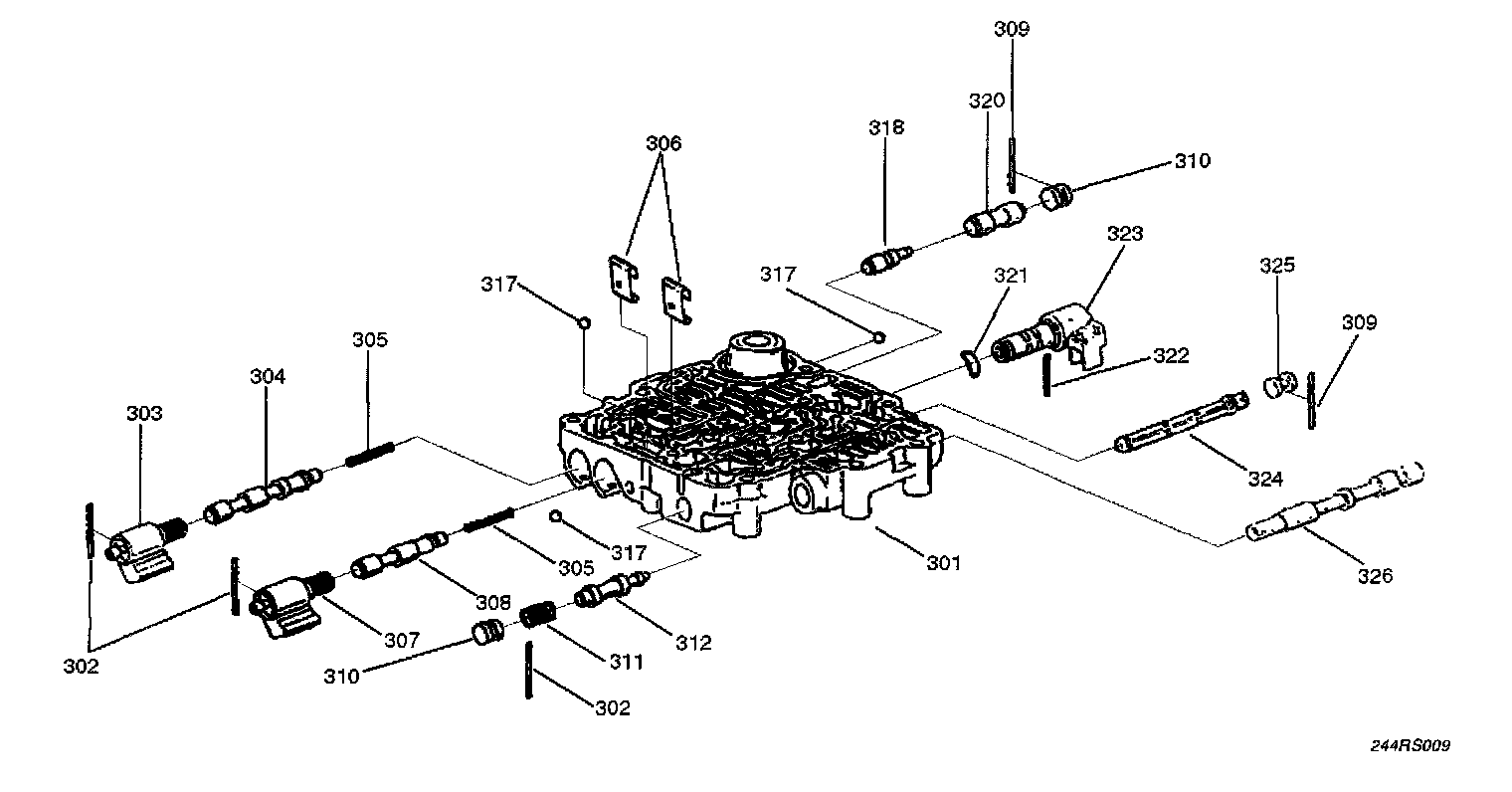

Valve Body Assemblies

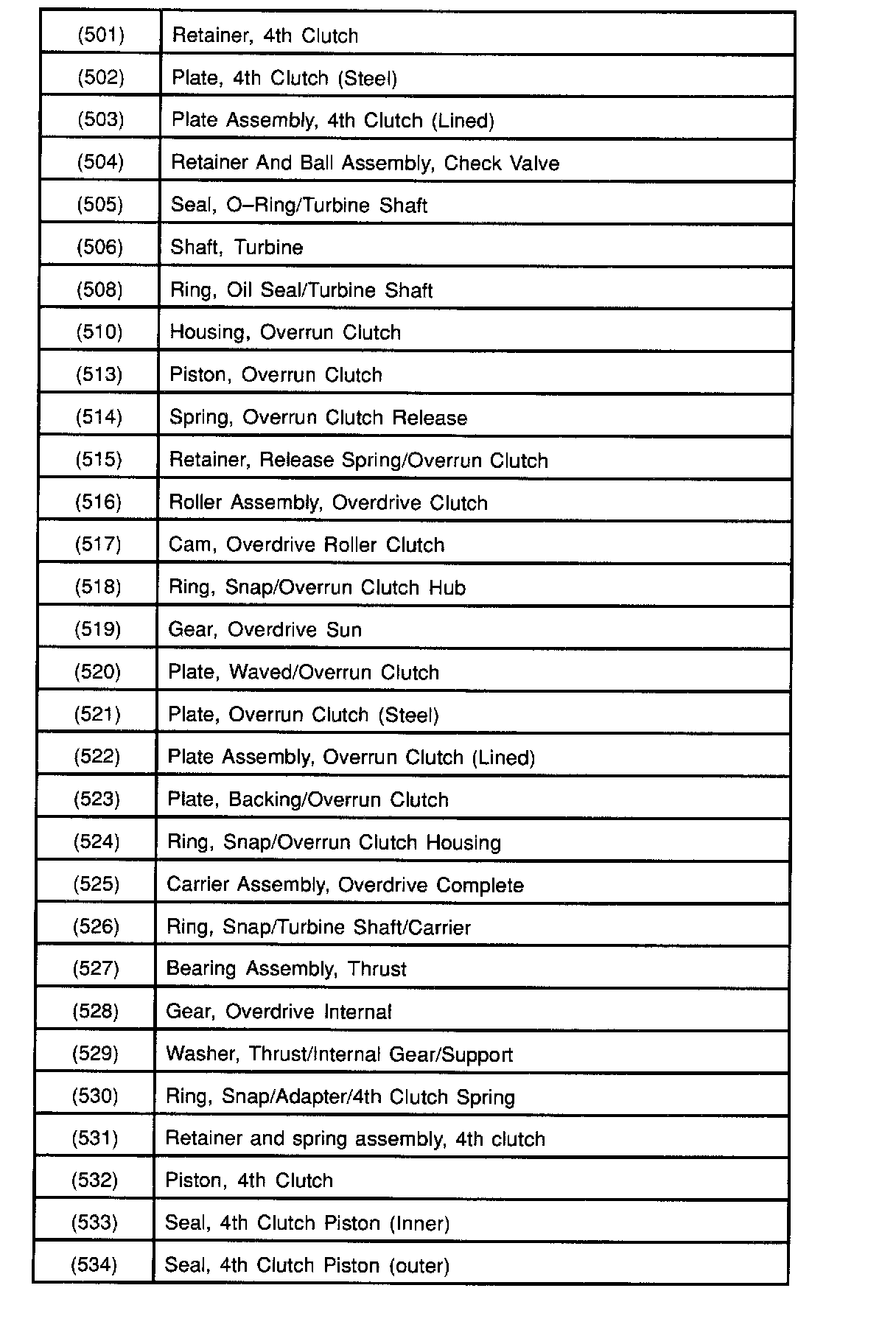

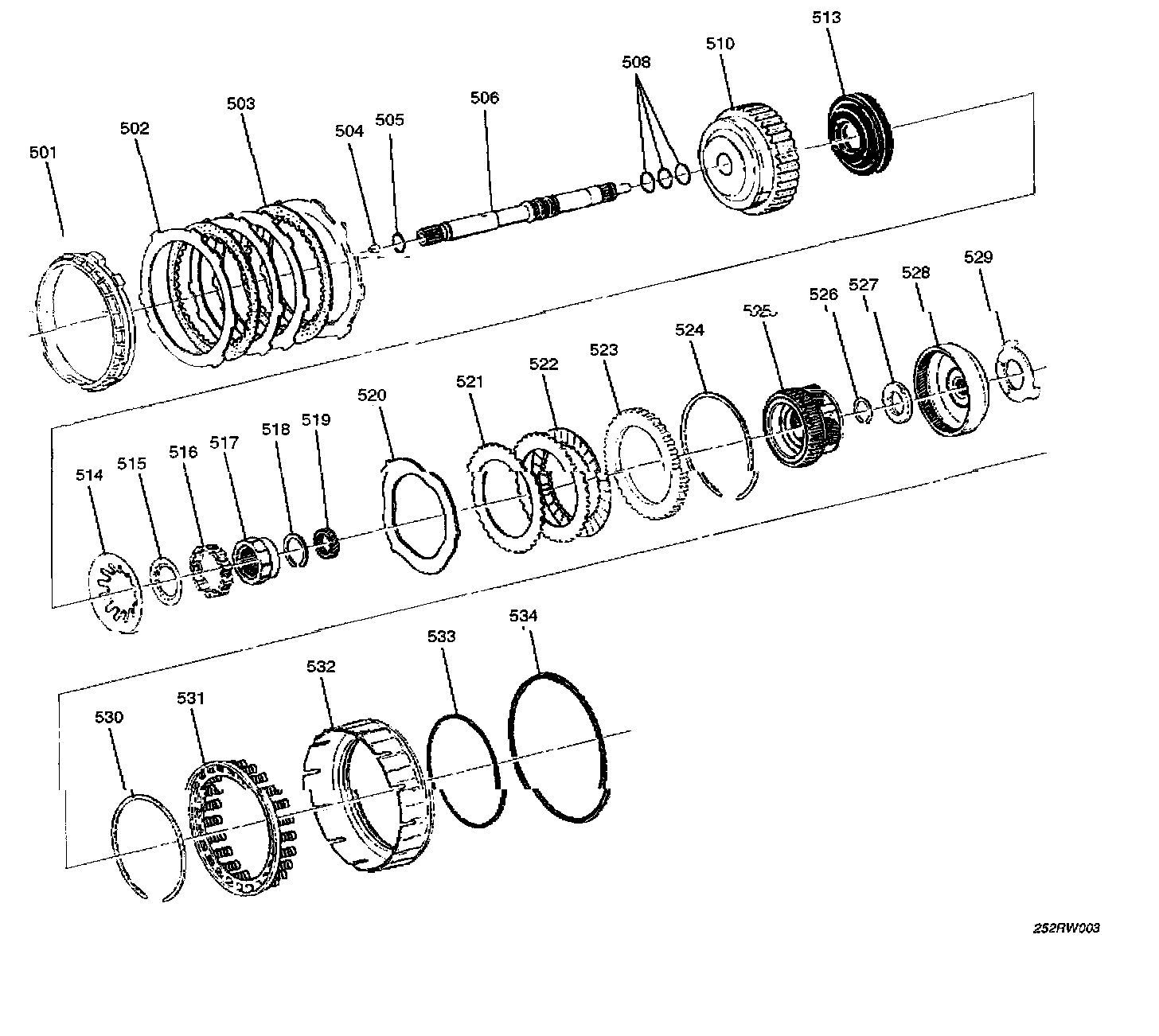

Overdrive Internal Components

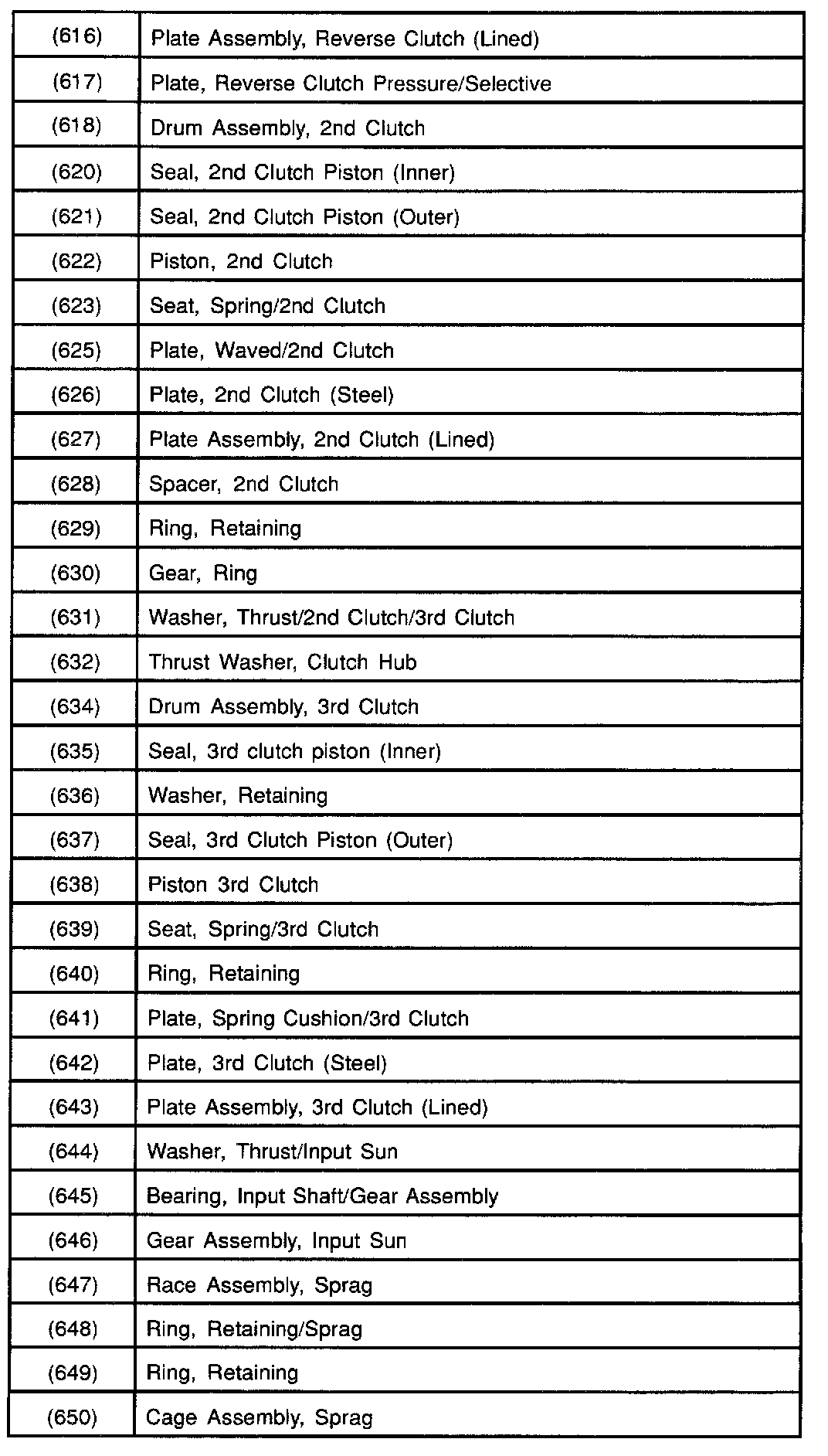

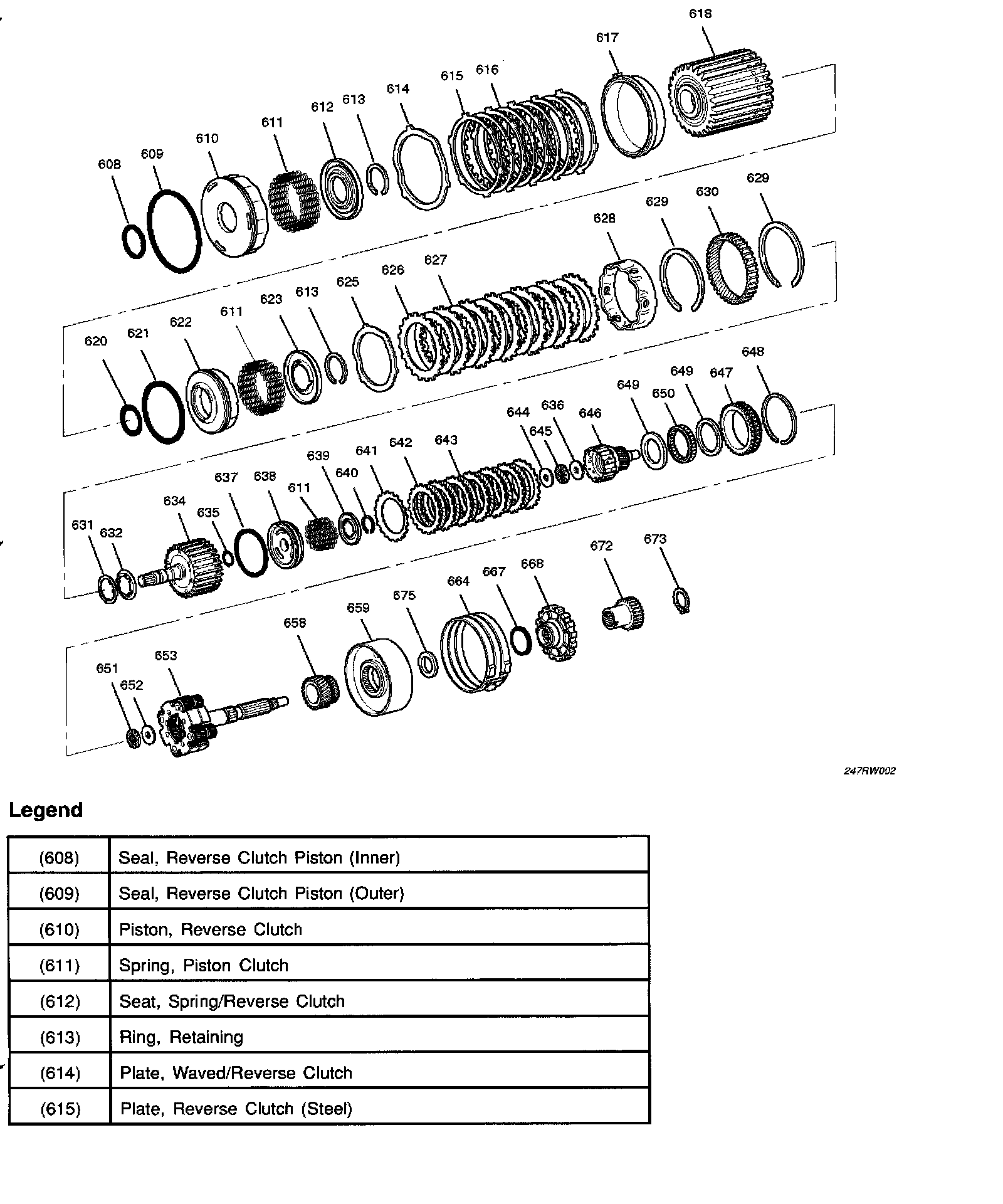

Internal Components





Center Support Assembly
