Isuzu
>>
1999
>>
VehiCROSS 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
Relay Box

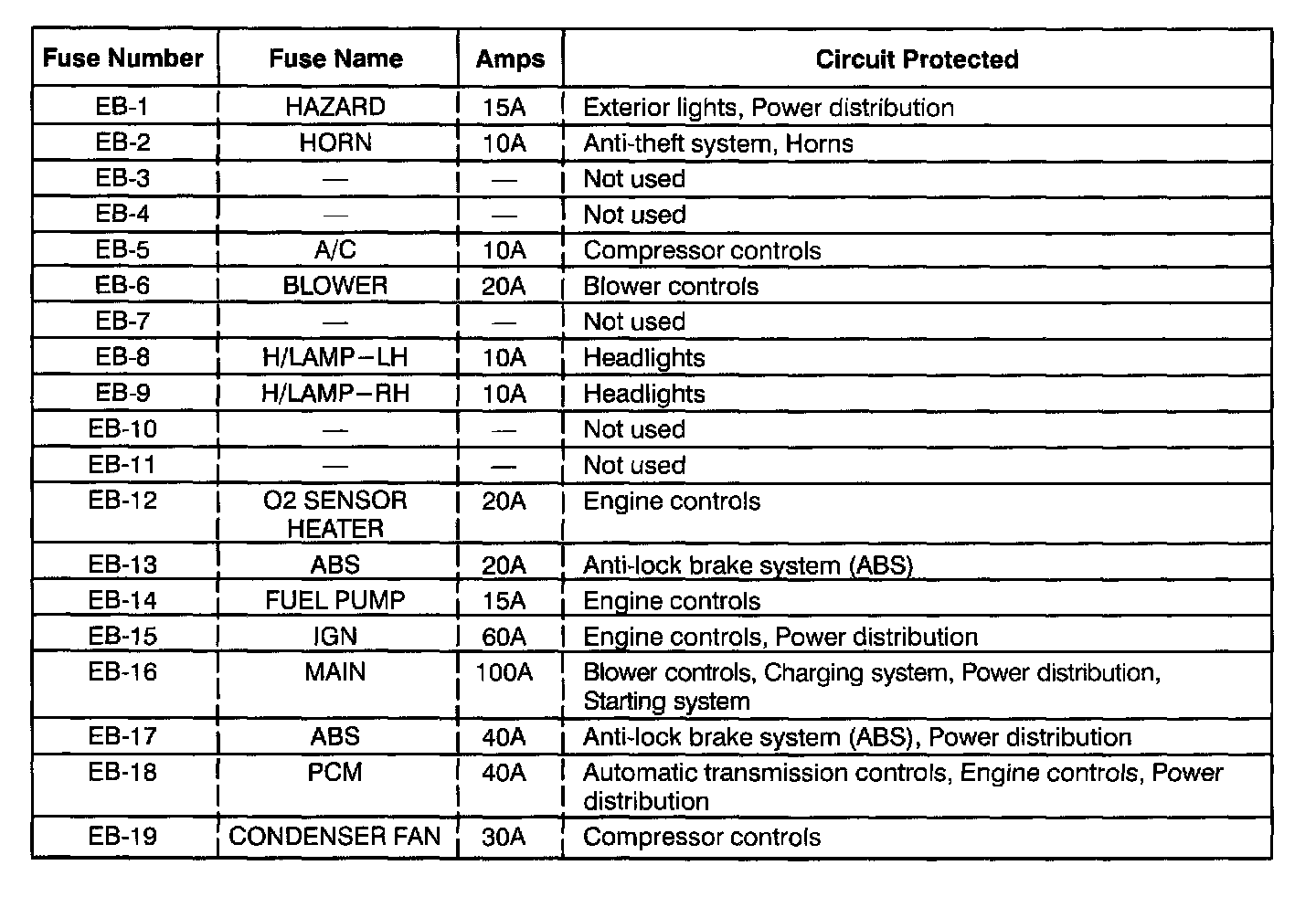

Fuse/Relay Box:
Fuse/Relay Box:
