Backfire

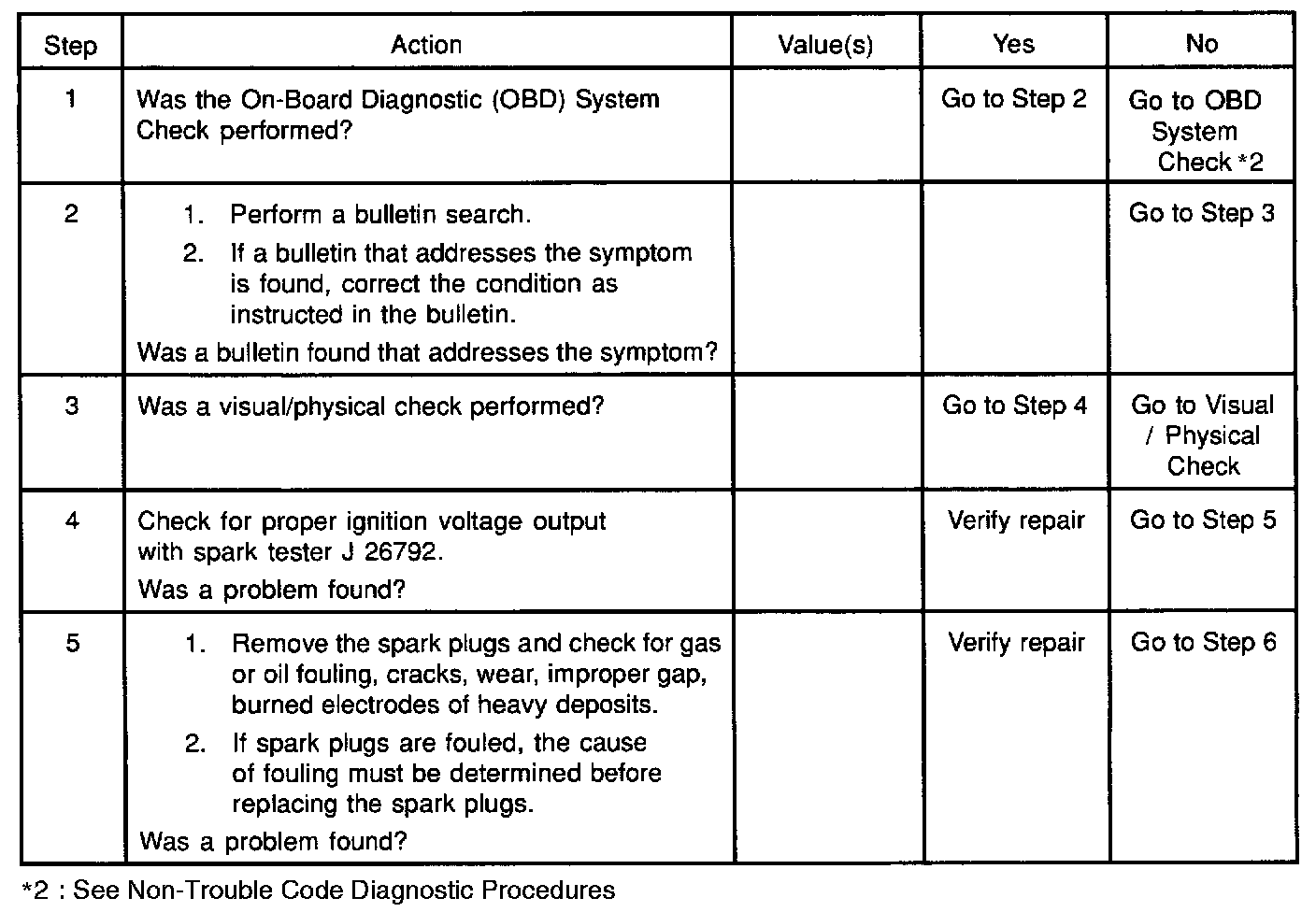

Steps 1 - 5:

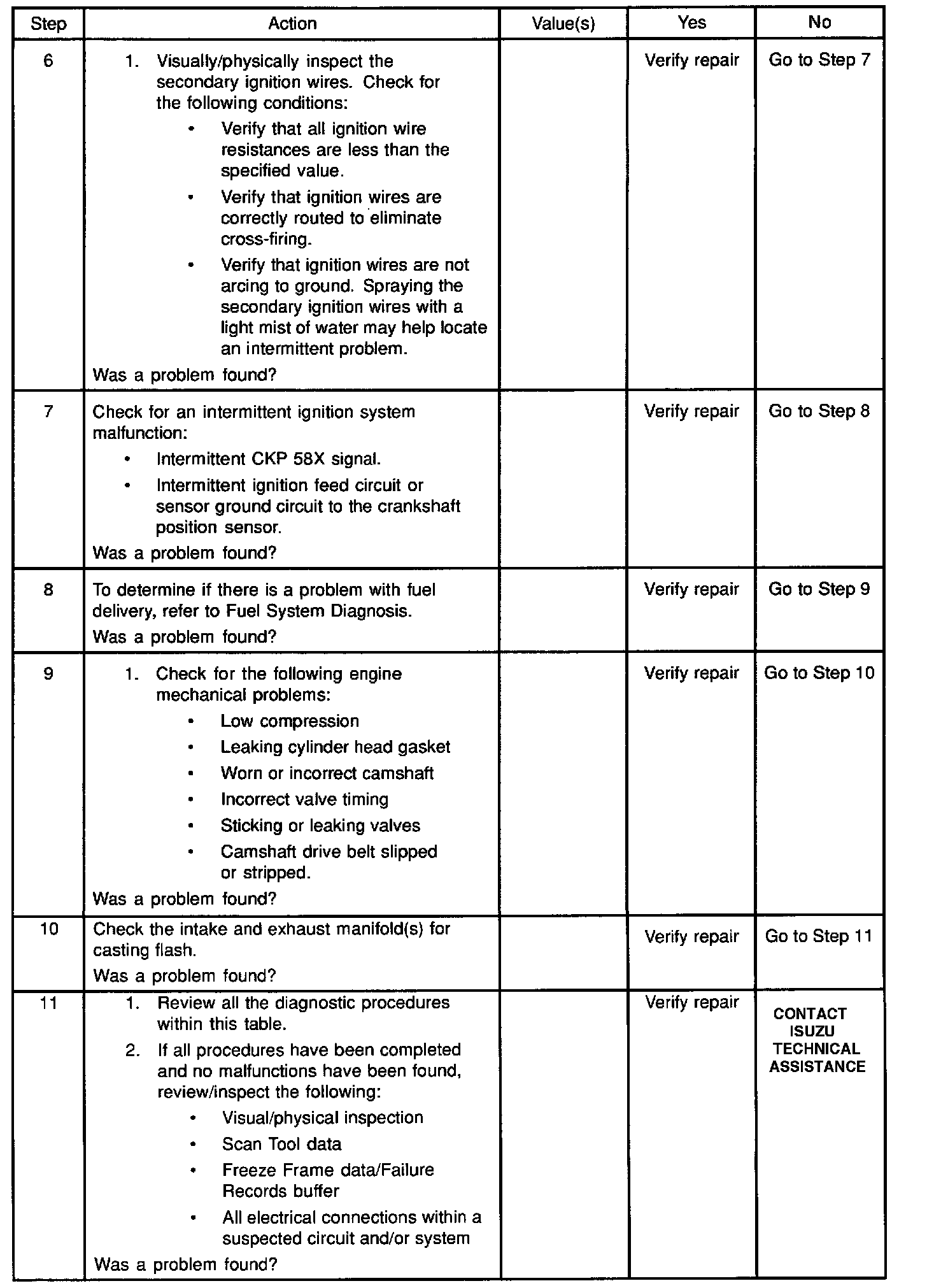

Steps 6 - 9:




Steps 10 - 11:




DEFINITION: Steady pulsation or jerking that follows engine speed, usually more pronounced as engine load increases.
