Home >> Isuzu >> 1999 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Grounding Point >> Testing and Inspection

Grounding Point: Testing and Inspection

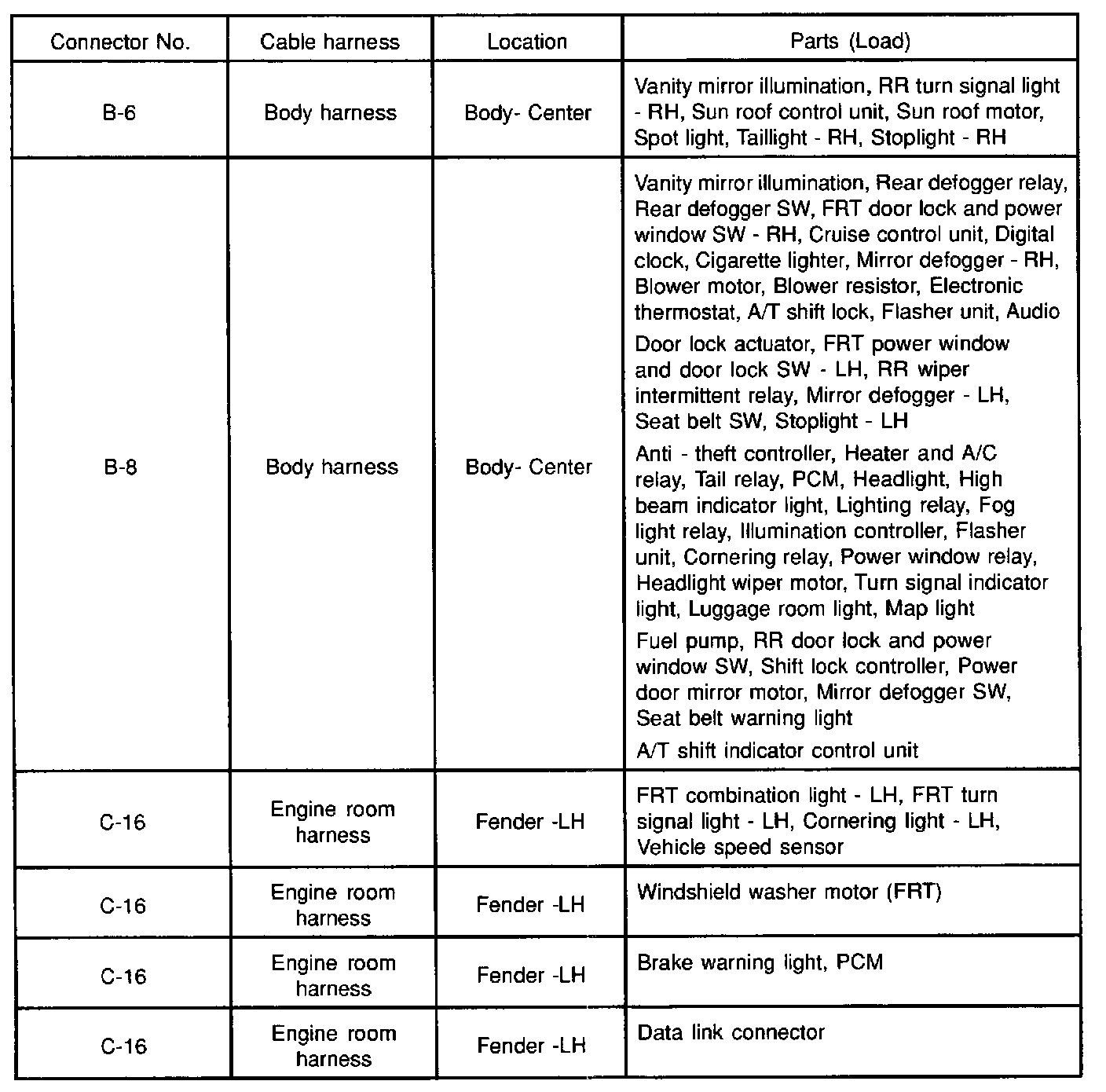

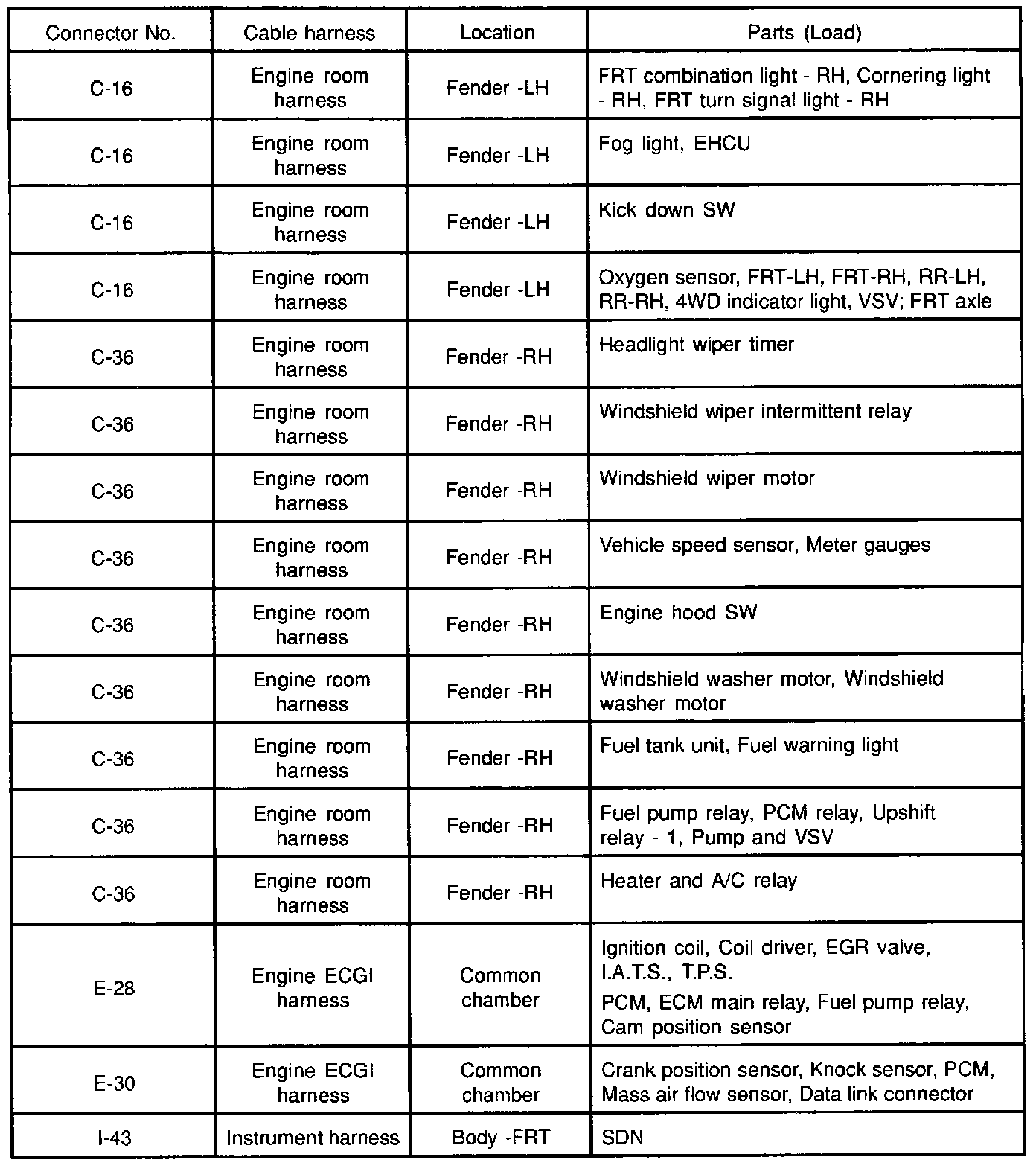

Reference Table

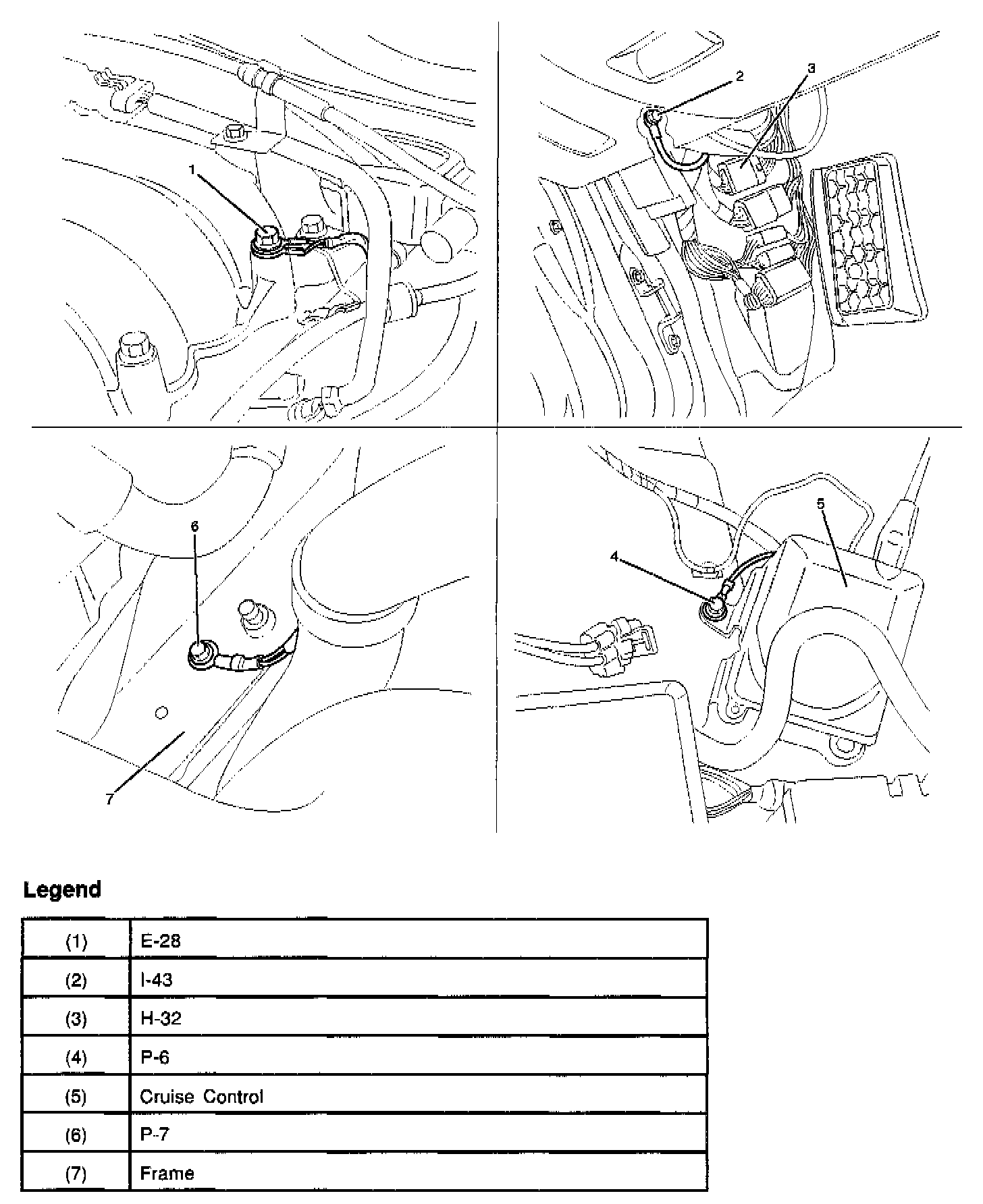

Location - 1

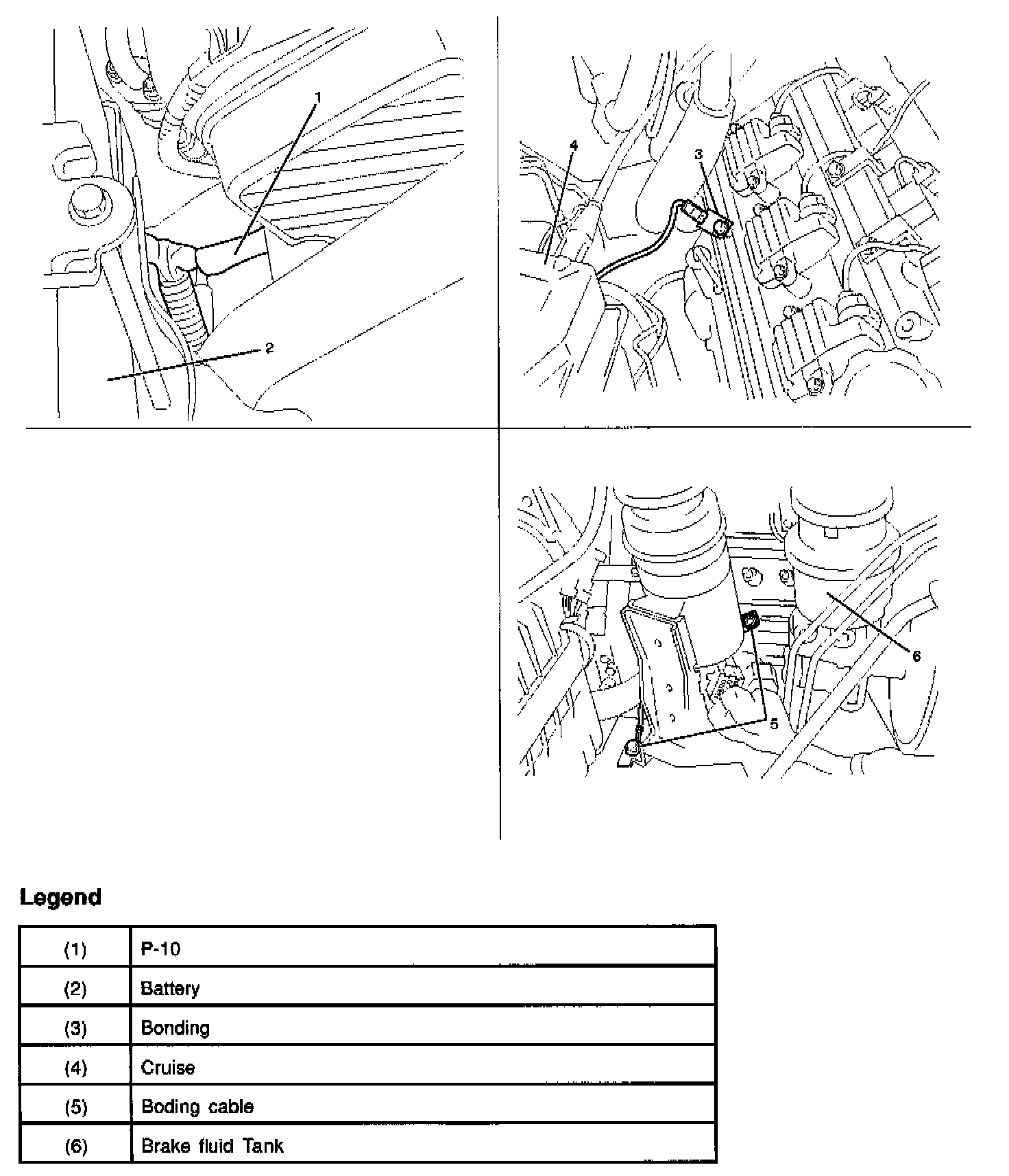

Location - 2

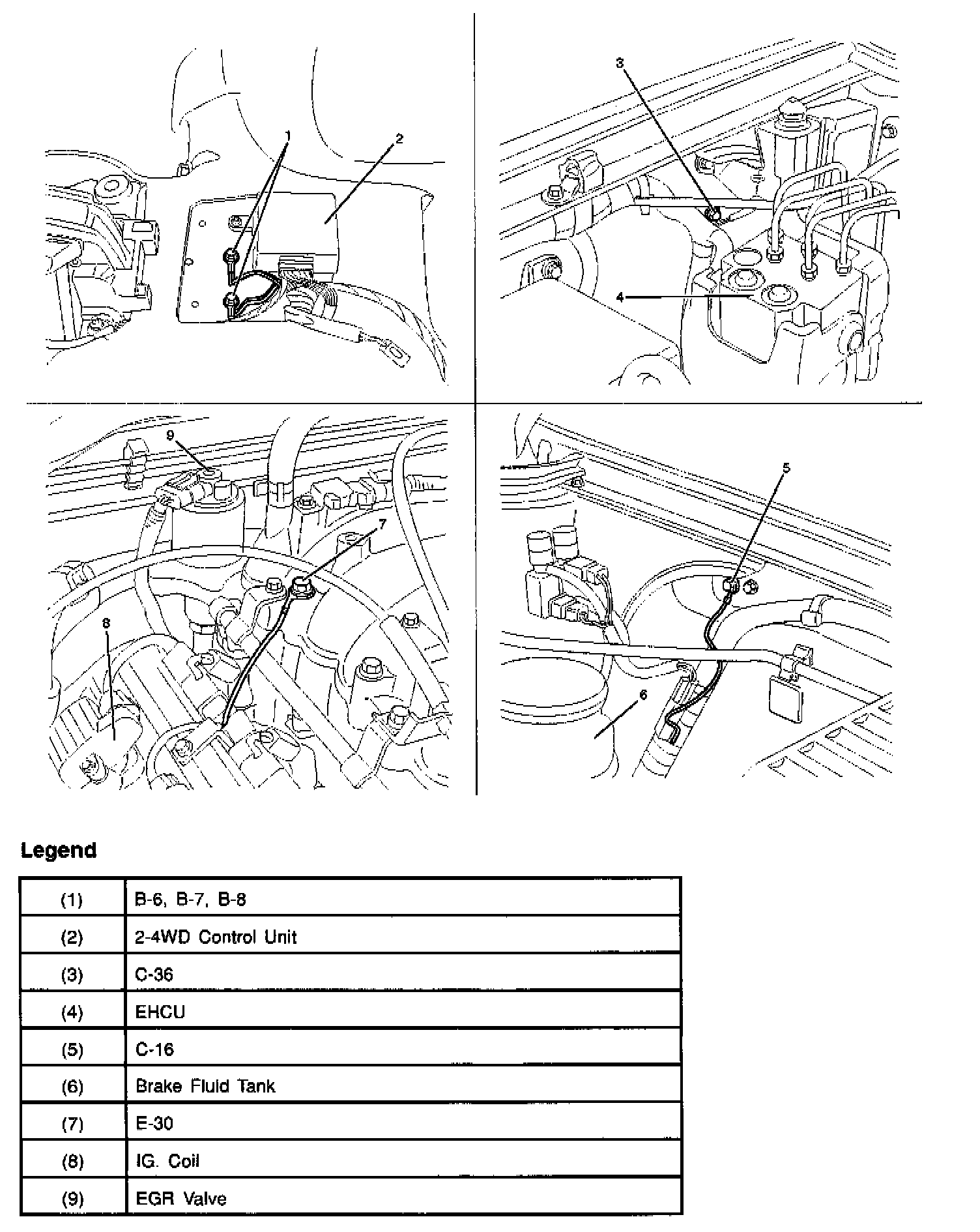

Location - 3
