Diode: Application and ID

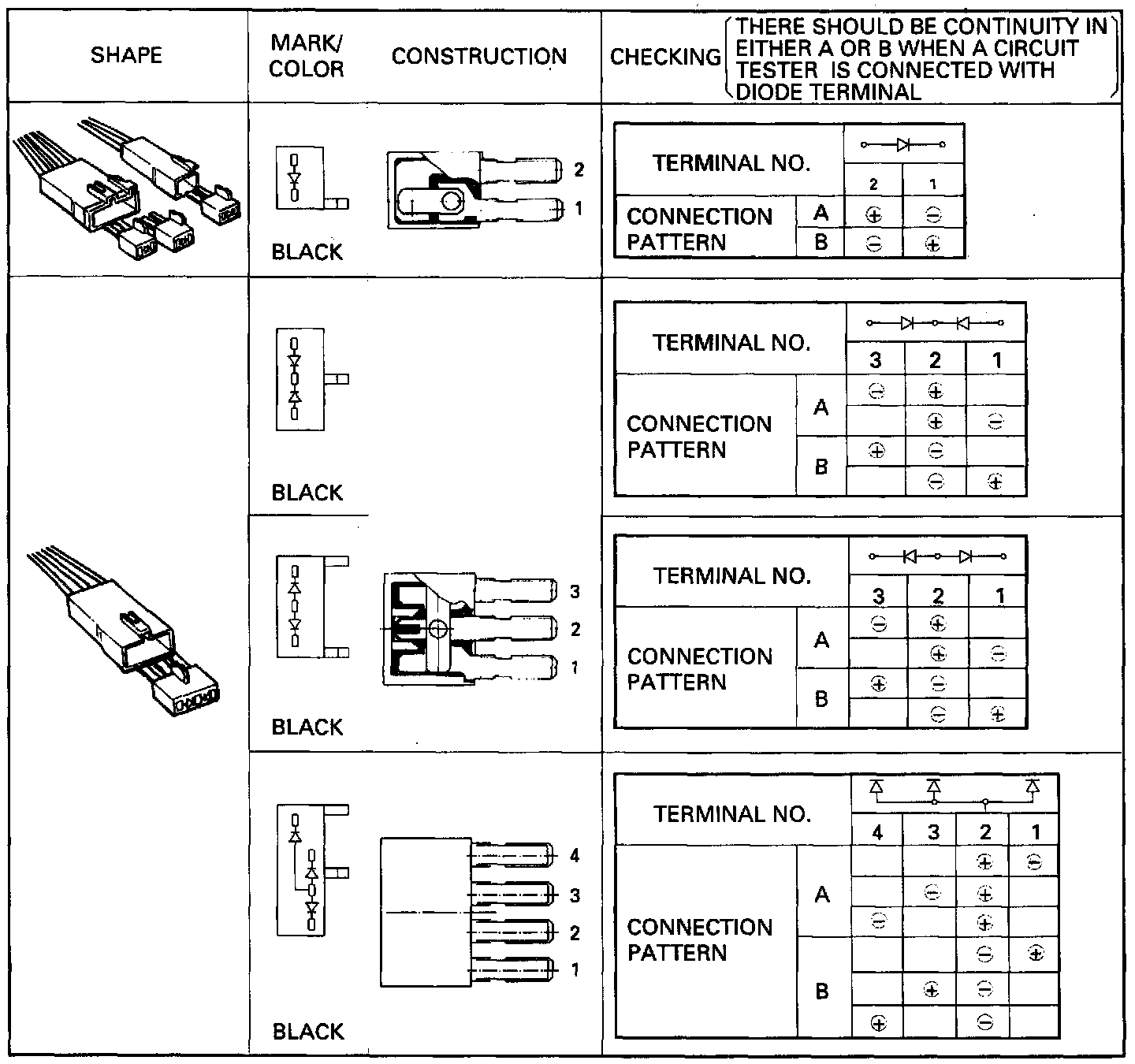

Diode Specifications and Configurations




Maximum Rating (Temp. = 77 °F (25 °C))
