Home >> Isuzu >> 1998 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Locations >> Ground Locations >> Ground-to-Components Index

Ground-to-Components Index

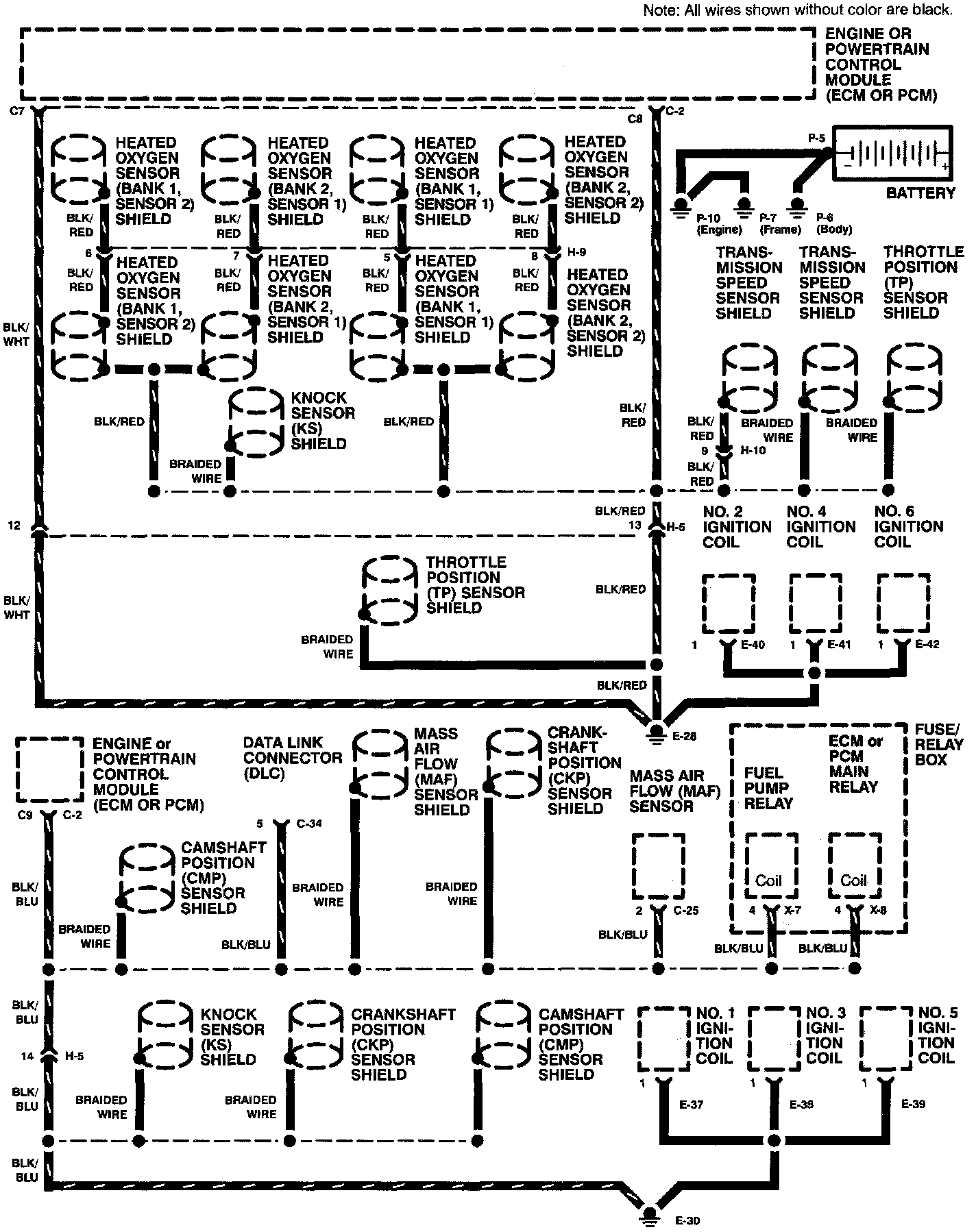

Ground Distribution 1 Of 5:

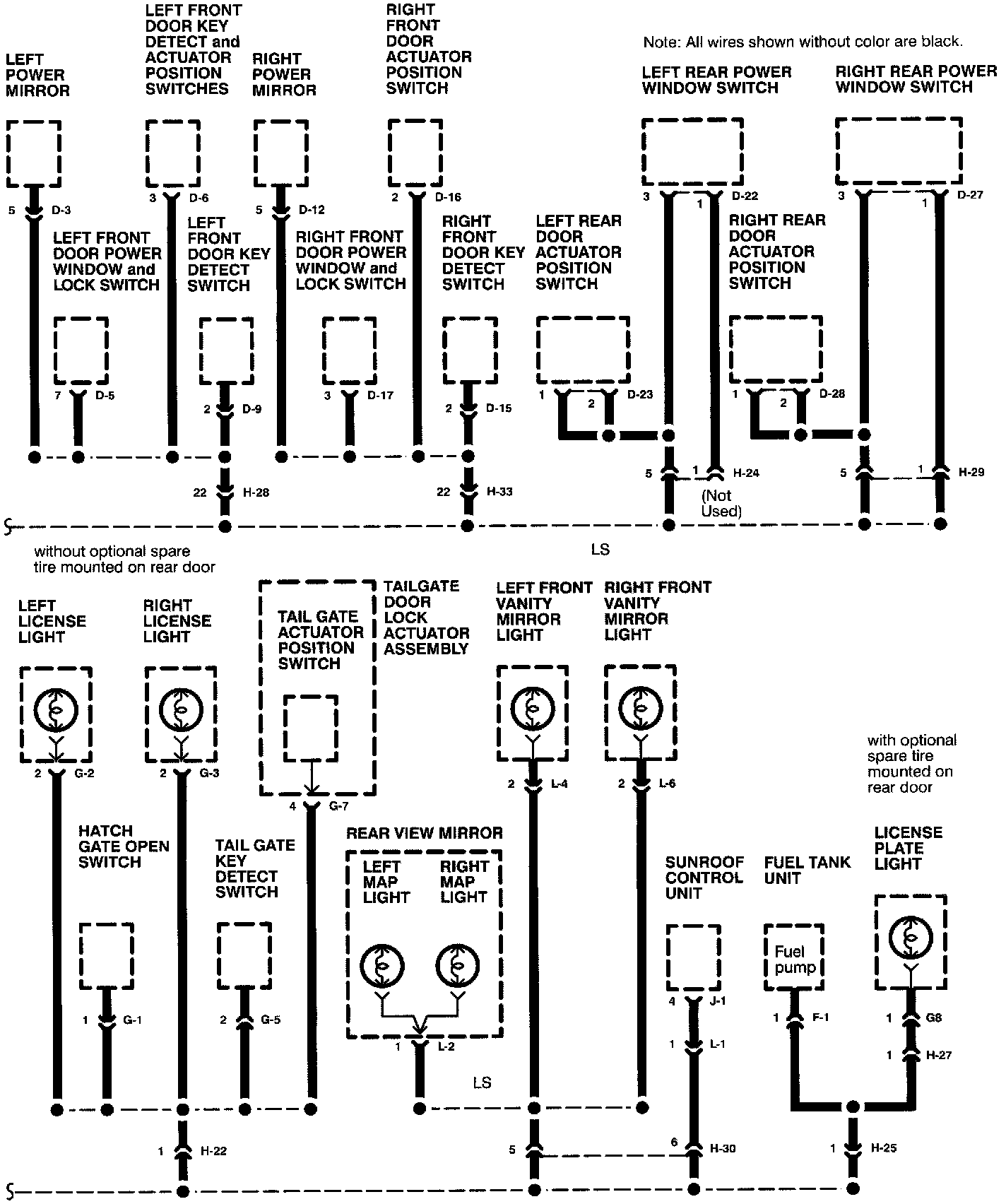

Ground Distribution 2 Of 5:

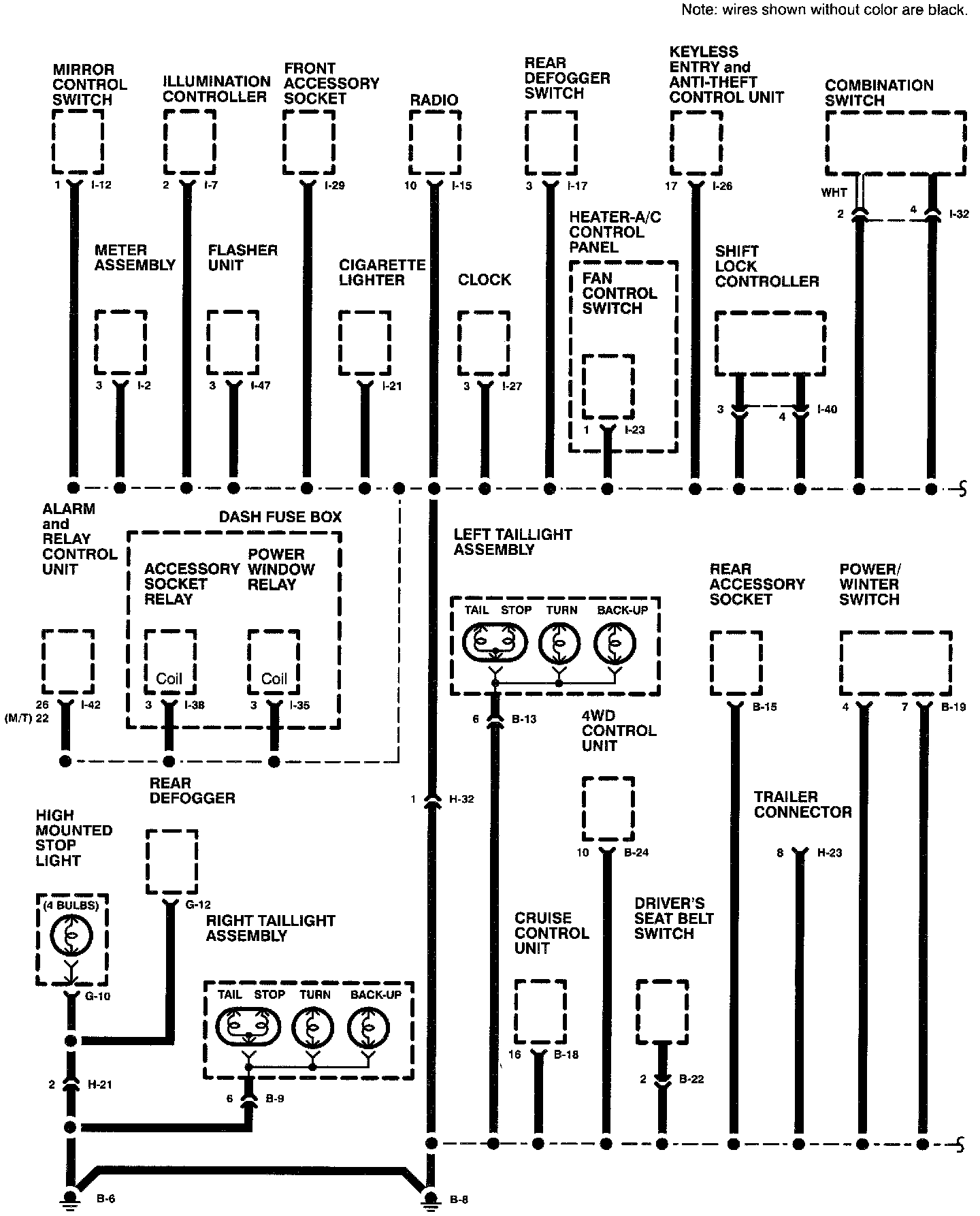

Ground Distribution 3 Of 5:

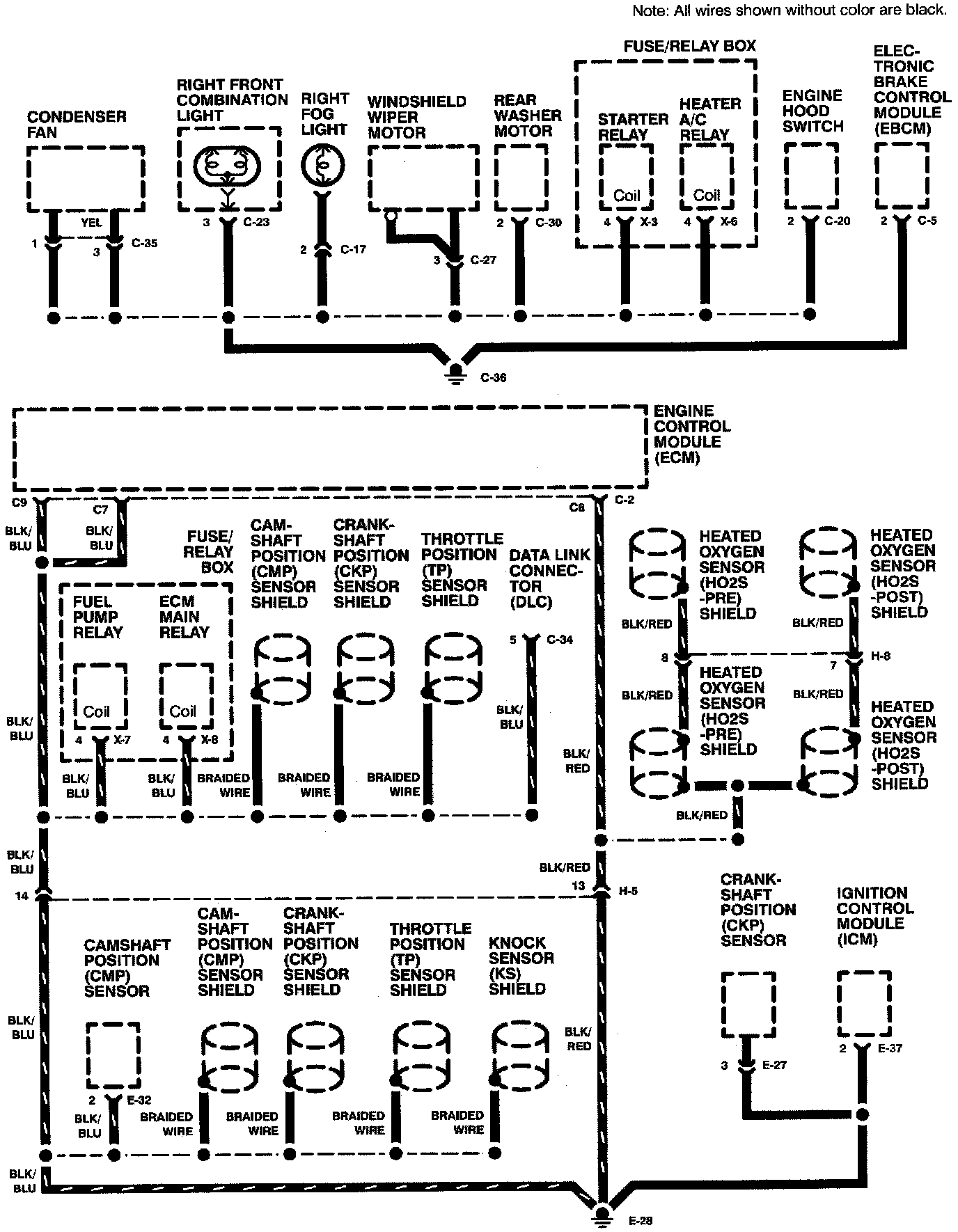

Ground Distribution 4 Of 5:

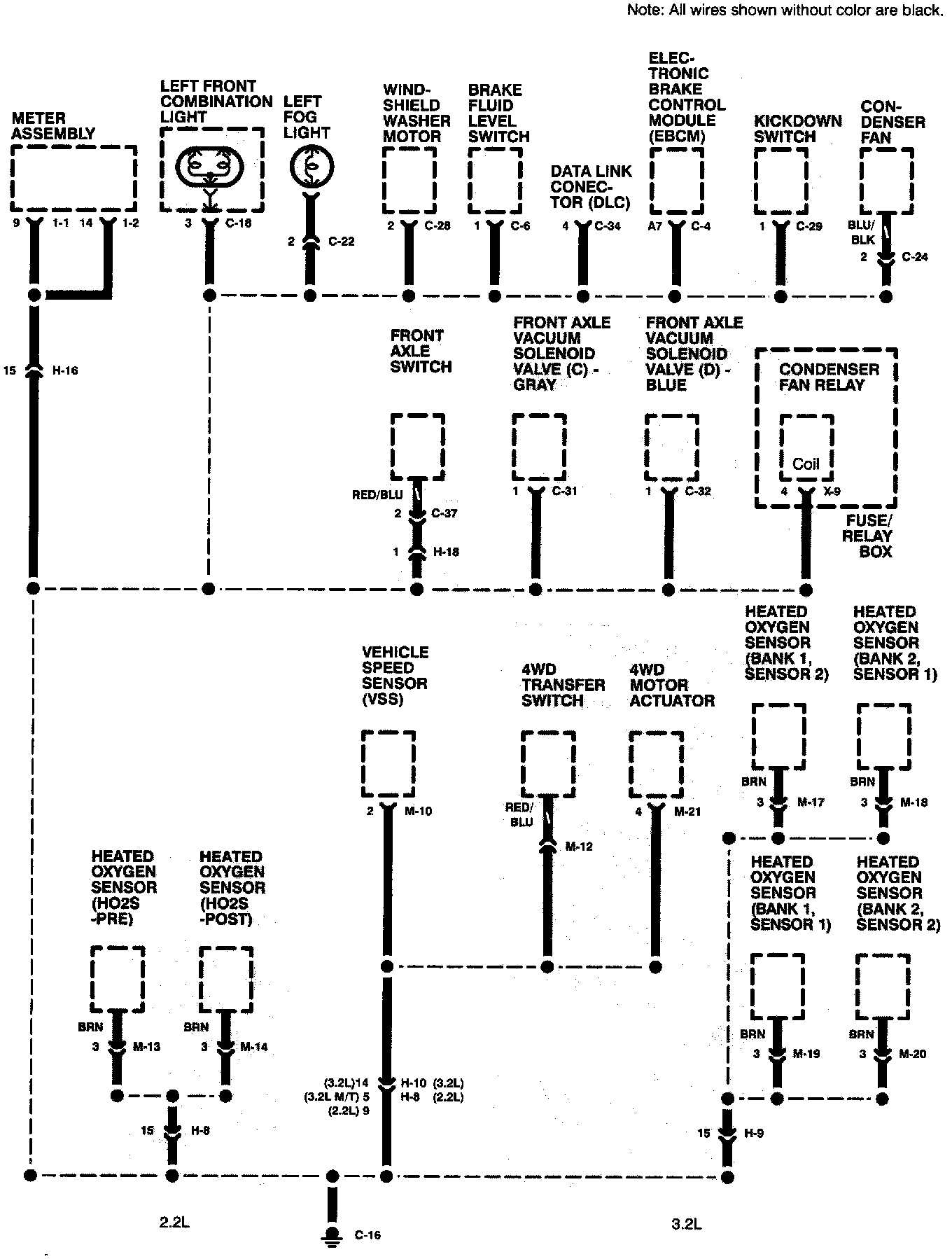

Ground Distribution 5 Of 5:
