Home >> Isuzu >> 1997 >> Hombre S Regular Cab L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> System Diagram

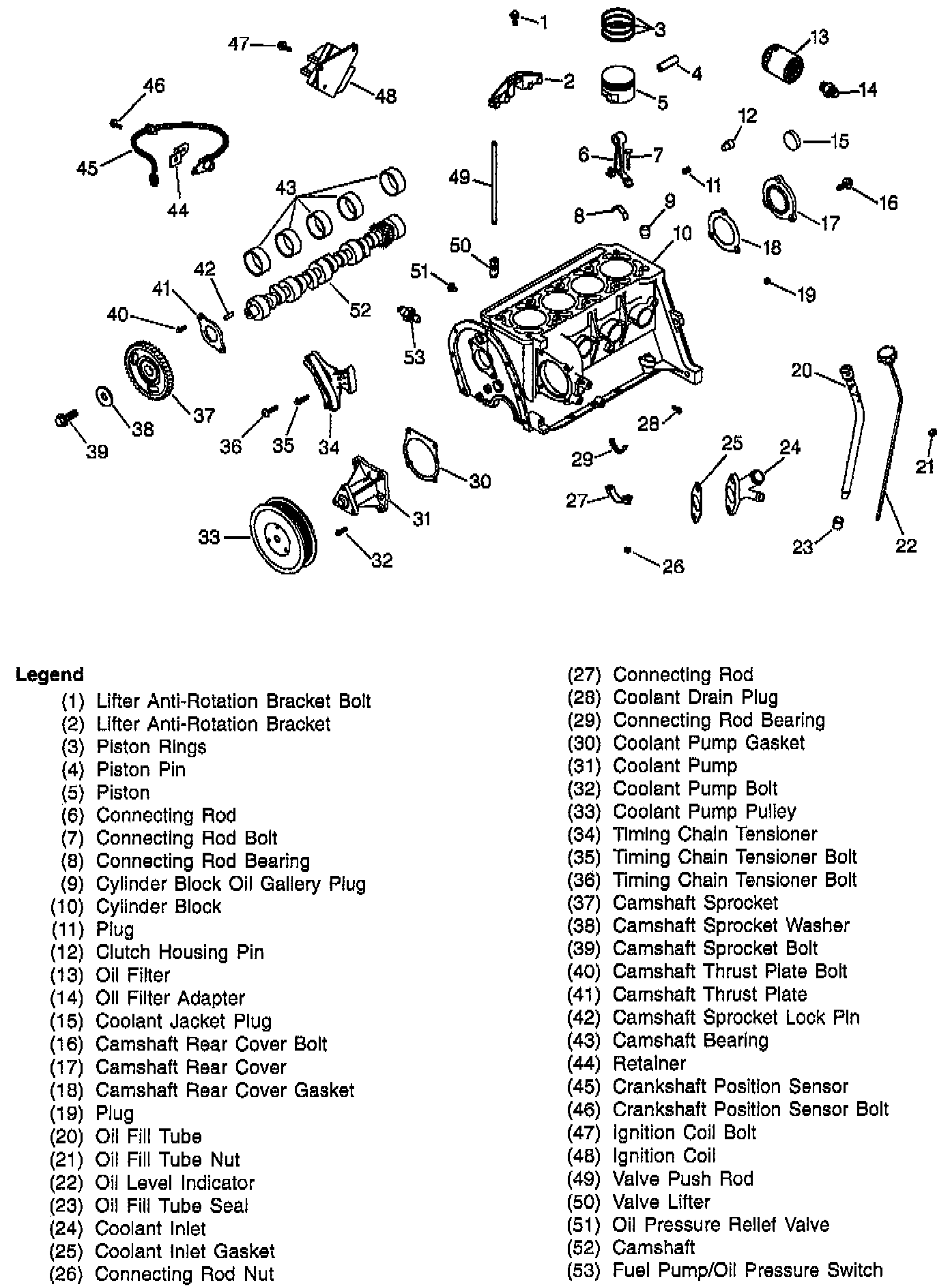

System Diagram
