Home >> Isuzu >> 1996 >> Hombre L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Data Link Connector

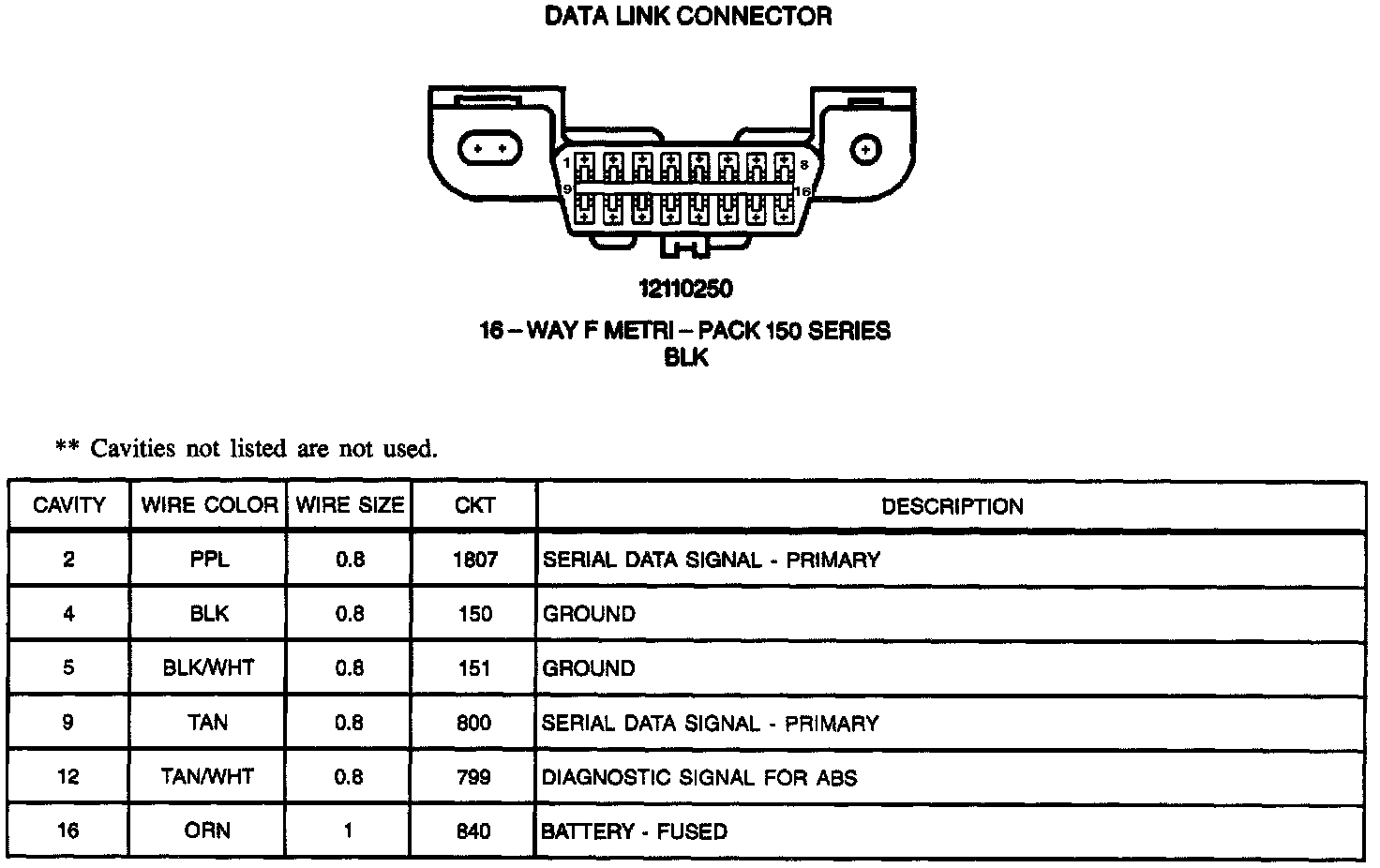

Data Link Connector

Data Link Connector:
