Home >> Isuzu >> 1996 >> Hombre L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag Control Module

Air Bag Control Module

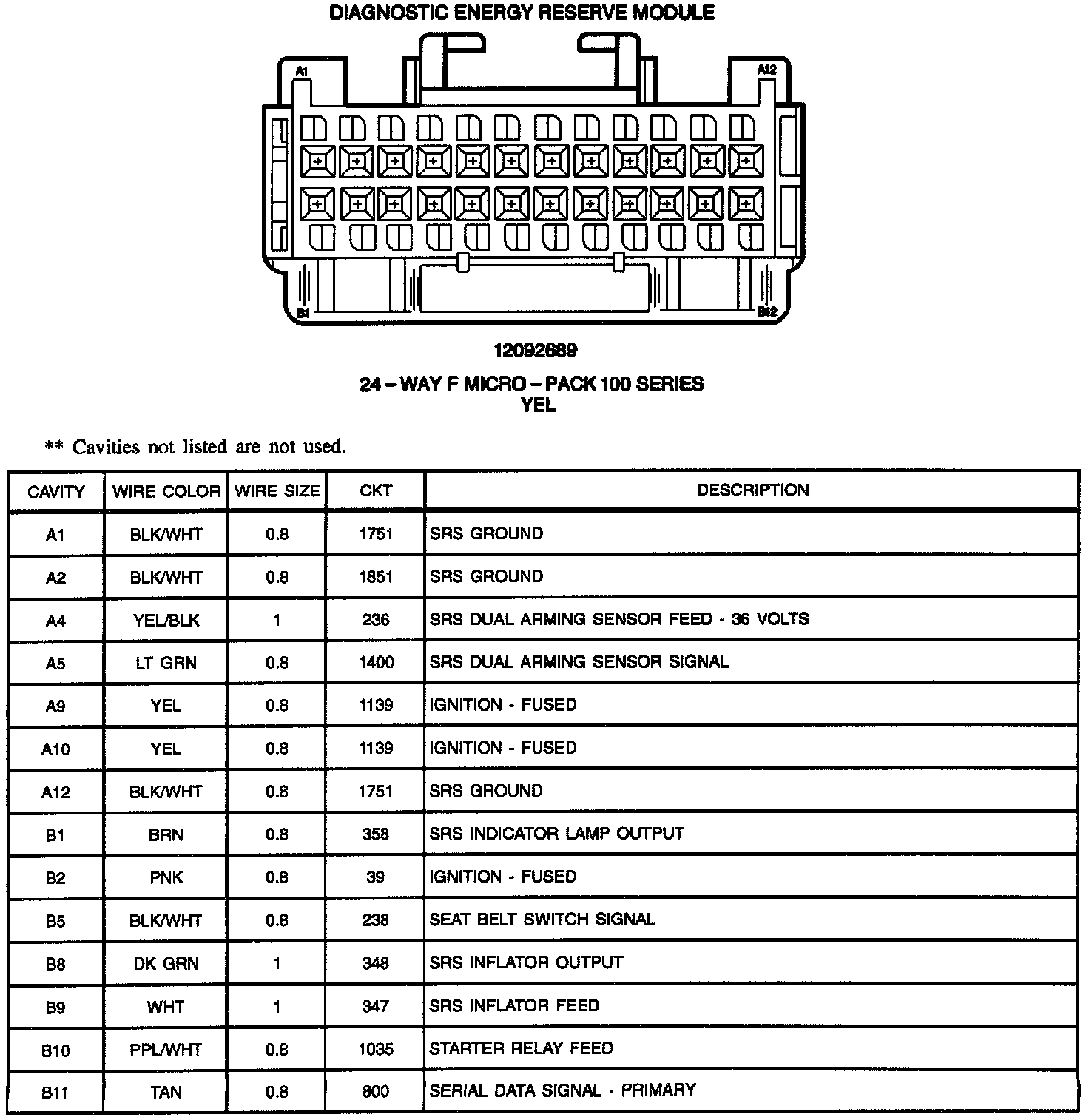

Diagnostic Energy Reserve Module:
