Home >> Isuzu >> 1996 >> Hombre L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Discriminating Sensor, LH/RH

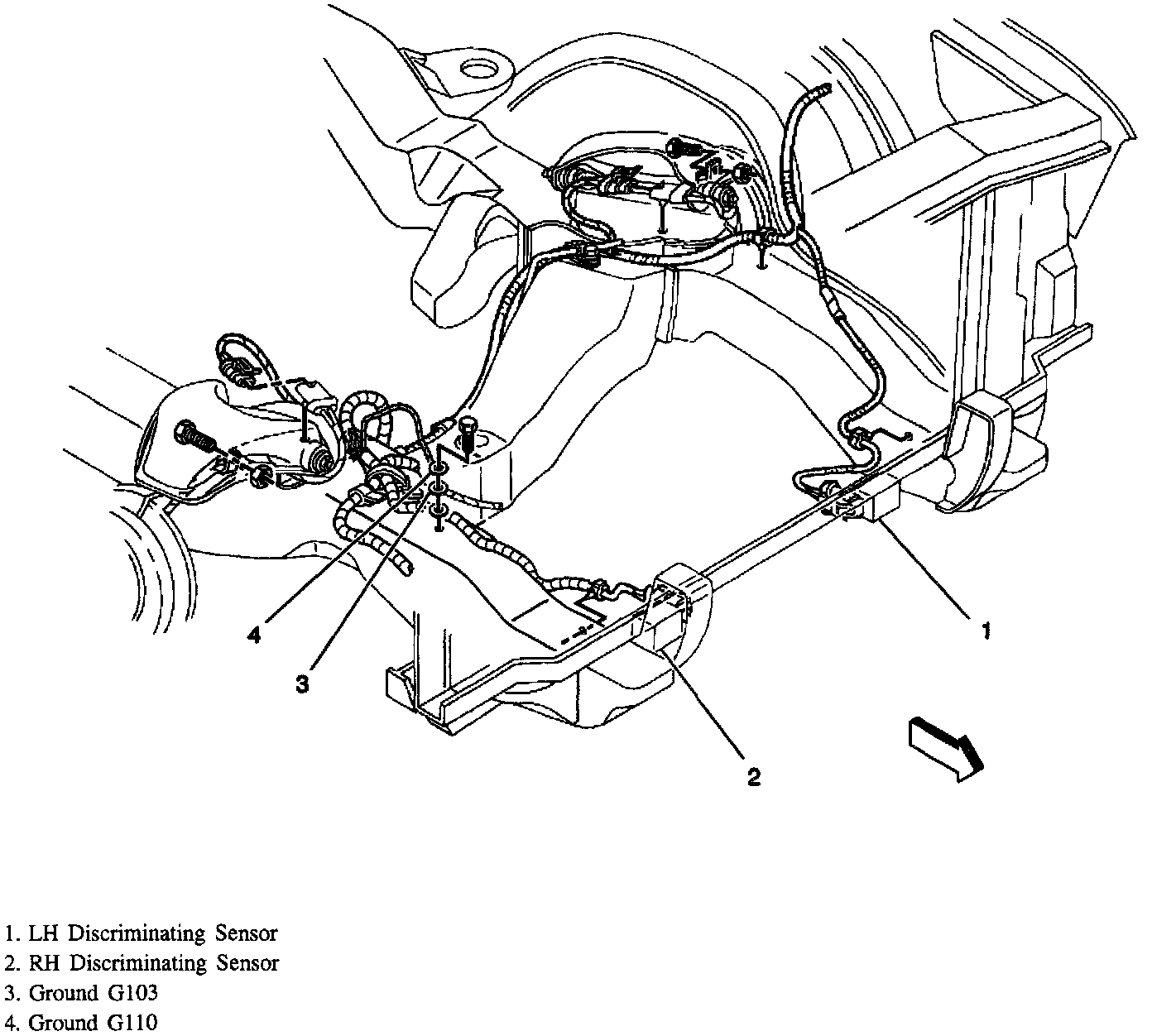

Discriminating Sensor, LH/RH

Front Chassis Wiring:
