Throttle Full Close Switch
>>
Testing and Inspection
Throttle Full Close Switch: Testing and Inspection

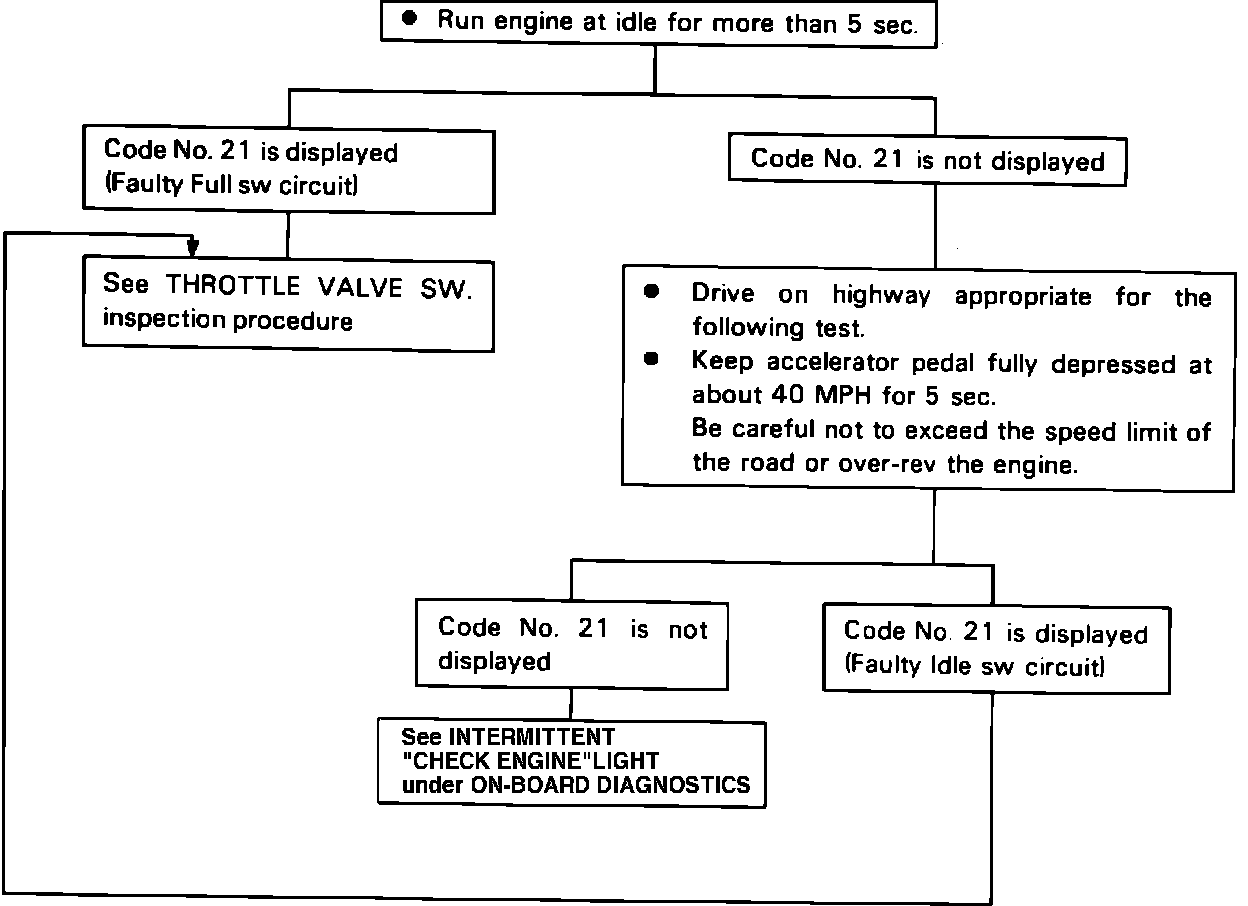

DIAGNOSTIC CHART
Code 21 Diagnostic Chart:

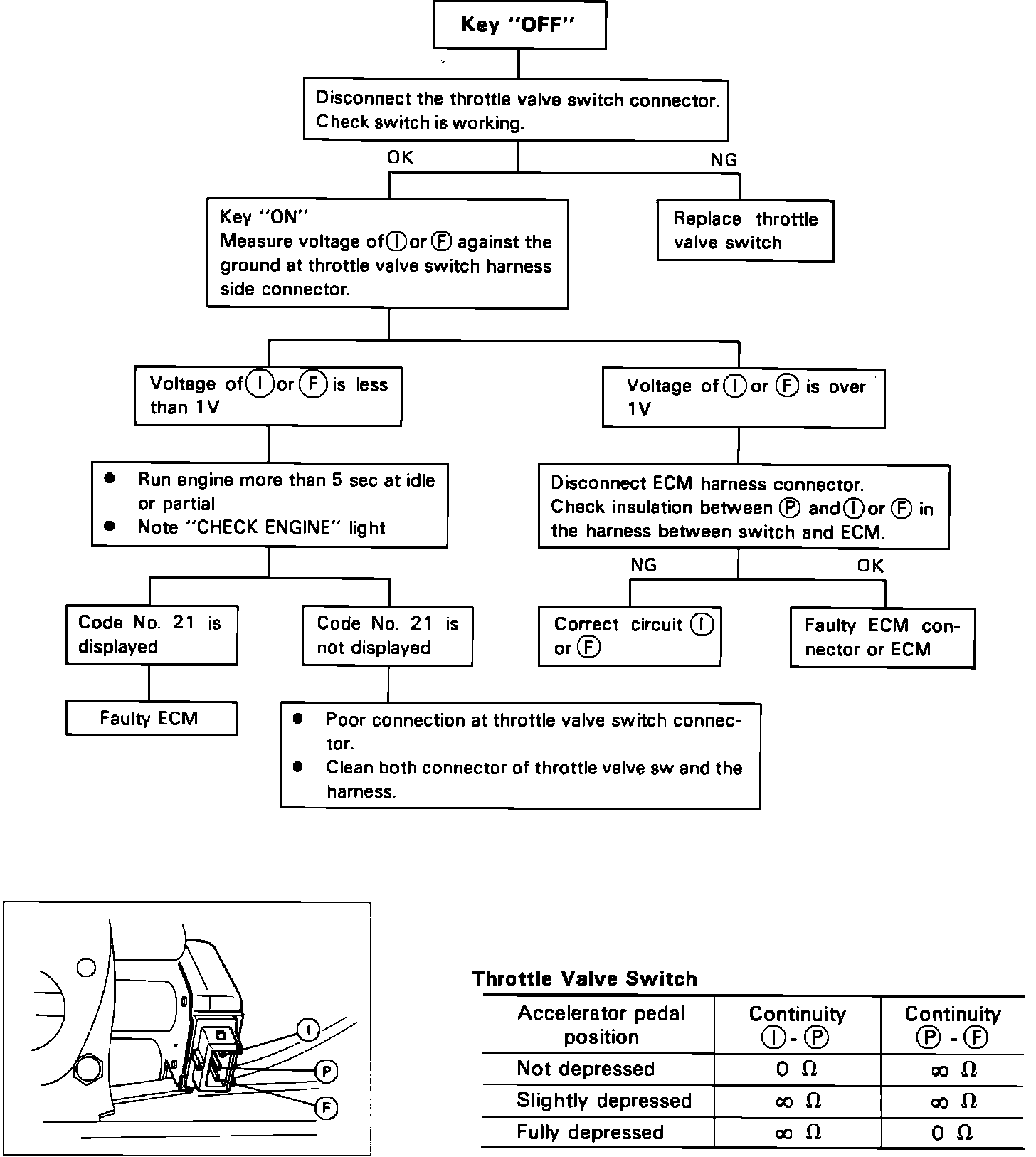

THROTTLE VALVE SWITCH INSPECTION PROCEDURE
Throttle Valve Switch Inspection Procedure:
