Mixture Control Solenoid: Testing and Inspection

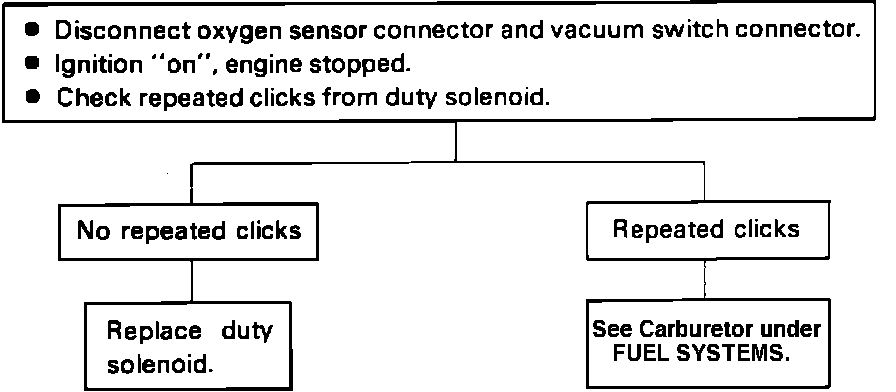

Duty Solenoid Diagnostic Chart:

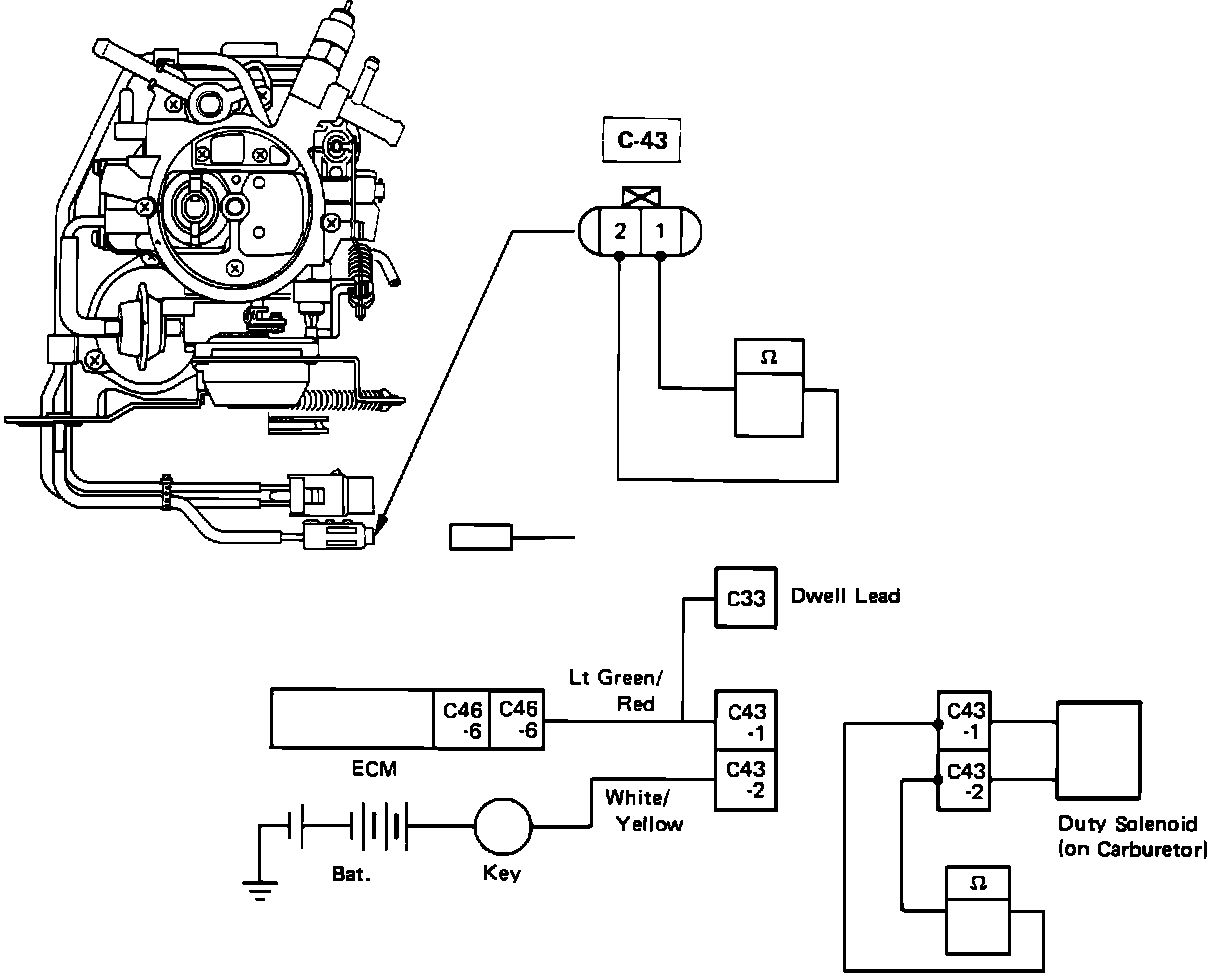

Check Duty Solenoid Resistance:
Disconnect duty solenoid connector and check solenoid resistance. It should be above 20 ohms.
Disconnect duty solenoid connector and check solenoid resistance. It should be above 20 ohms.
