Isuzu
>>
1993
>>
Pickup 2WD L4-2.3L (4ZD1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
Computers and Control Systems

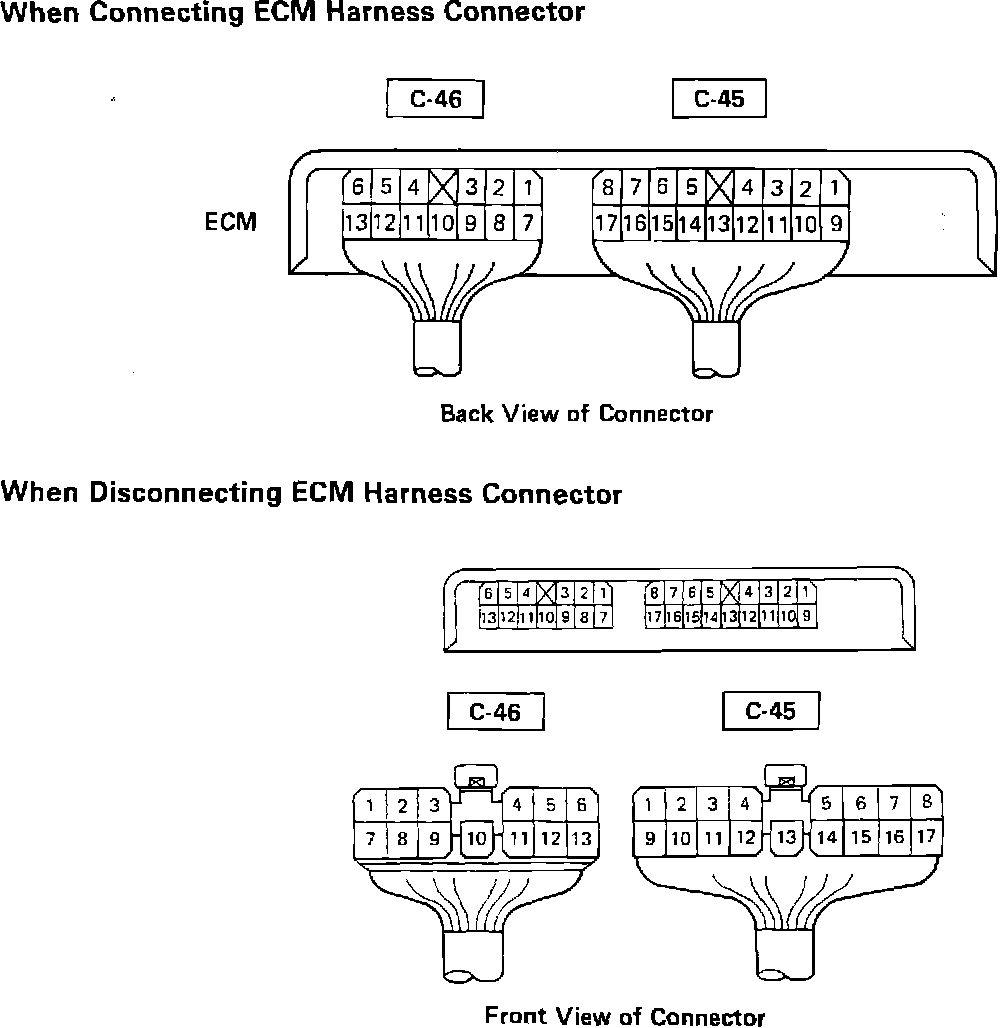

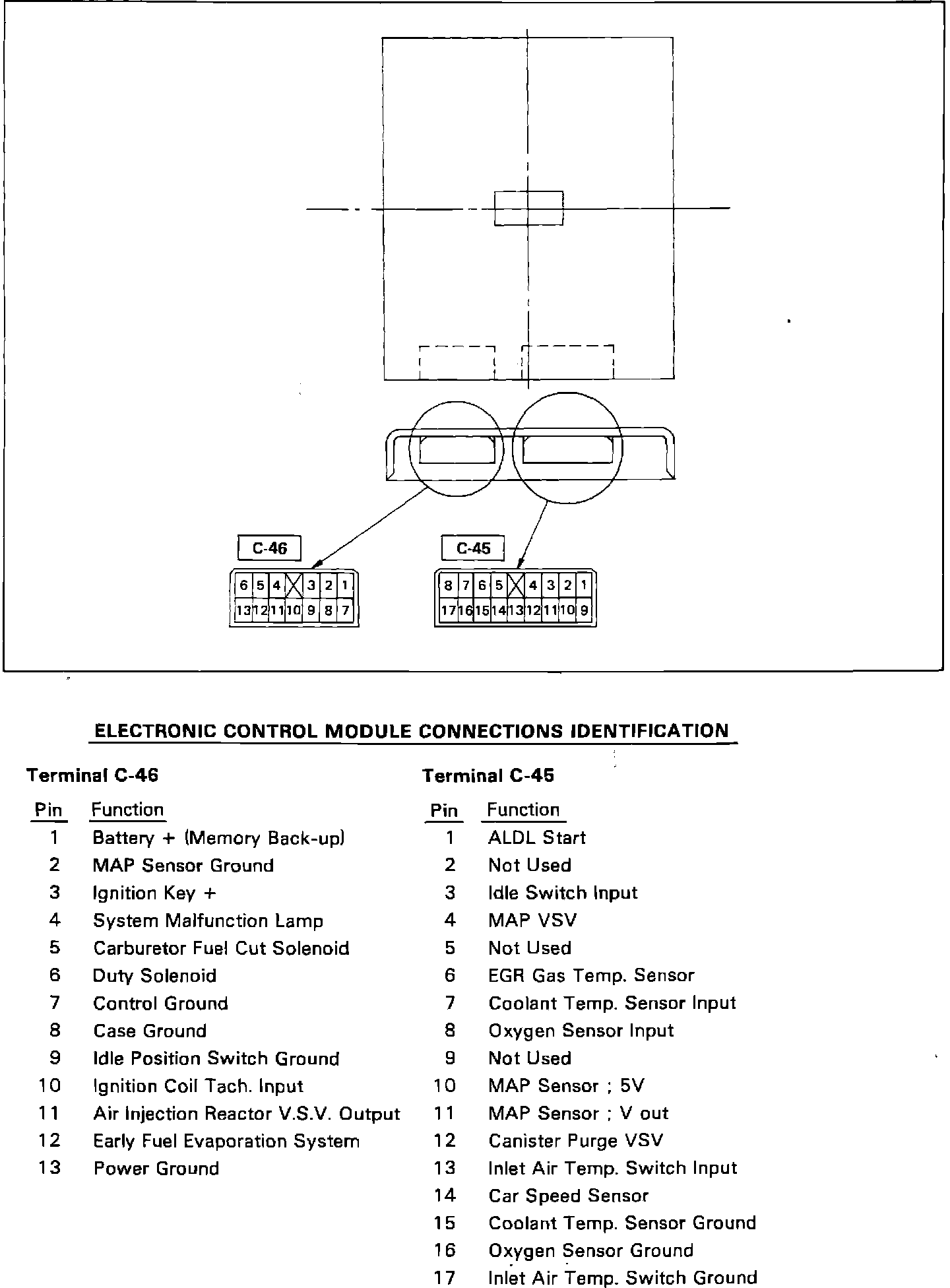

ECM Terminal Identification:
ECM Terminal Identification:
