Home >> Isuzu >> 1991 >> Trooper II V6-2827cc 2.8L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Automatic Transmission Control >> Barometer Sensor

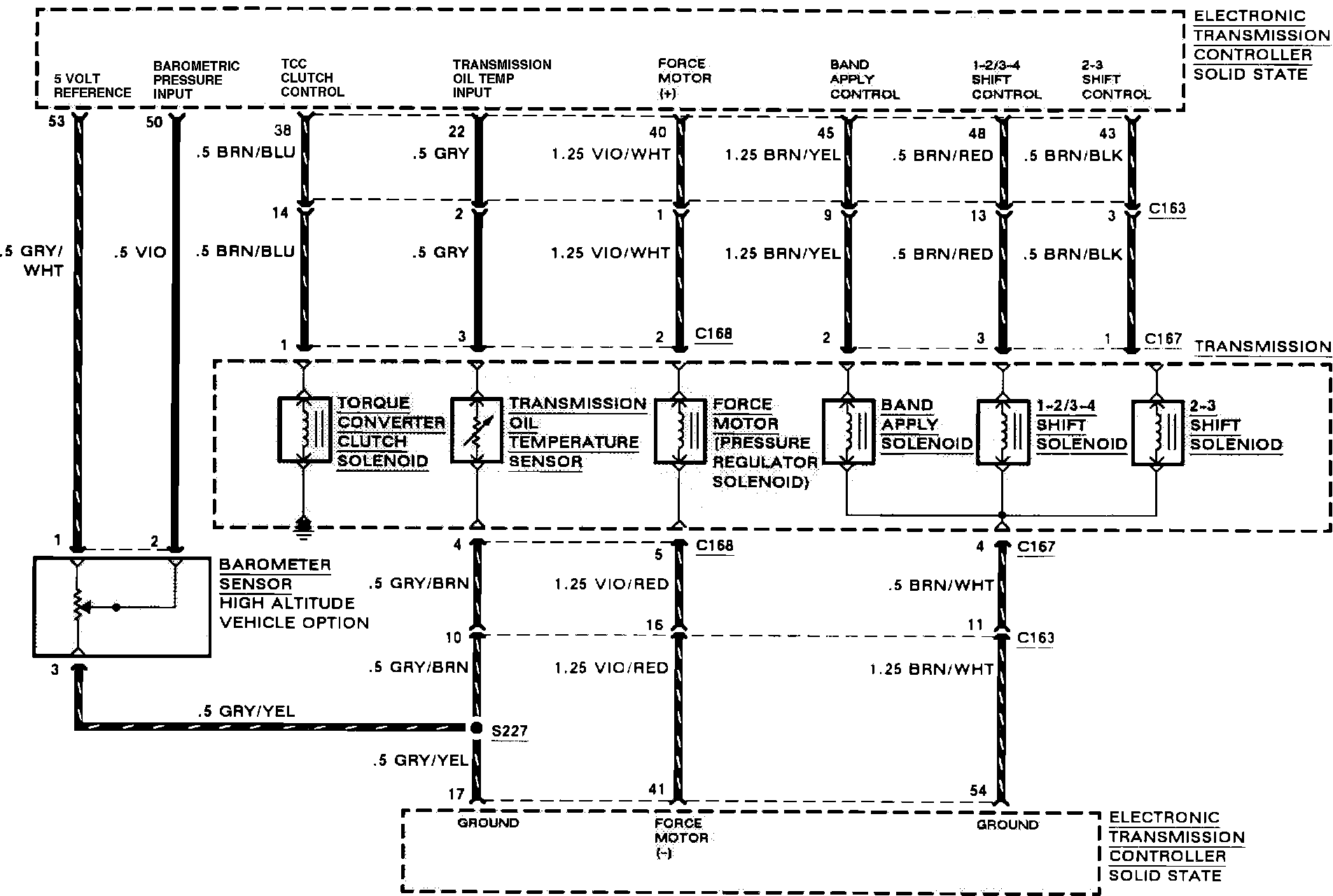

Barometer Sensor

Automatic Transmission Control: Internal Electronic Transmission Controls:
