Manifold Pressure/Vacuum Sensor: Testing and Inspection
MAP SENSOR OUTPUT CHECK

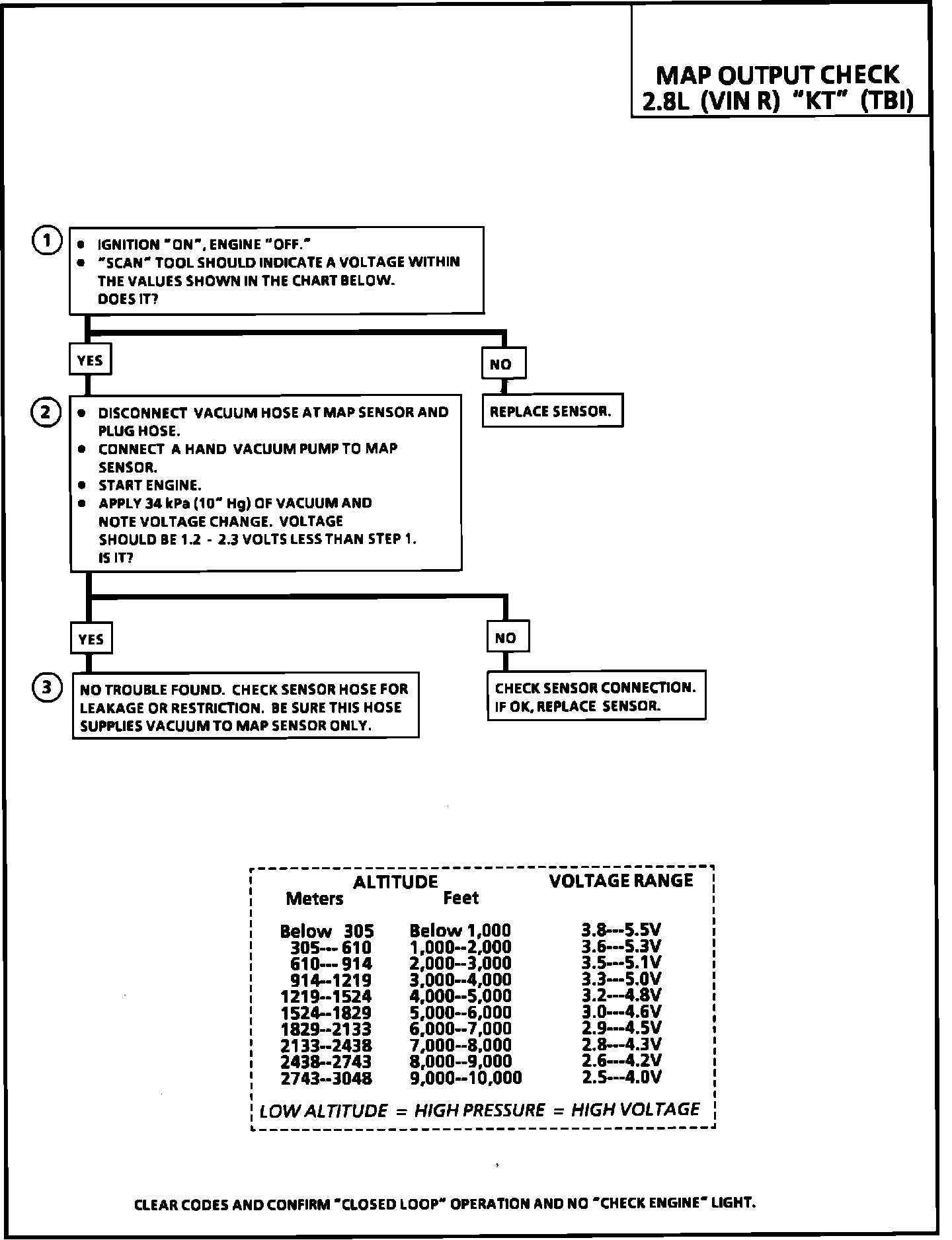

DIAGNOSTIC CHART
MAP Output Diagnostic Chart:

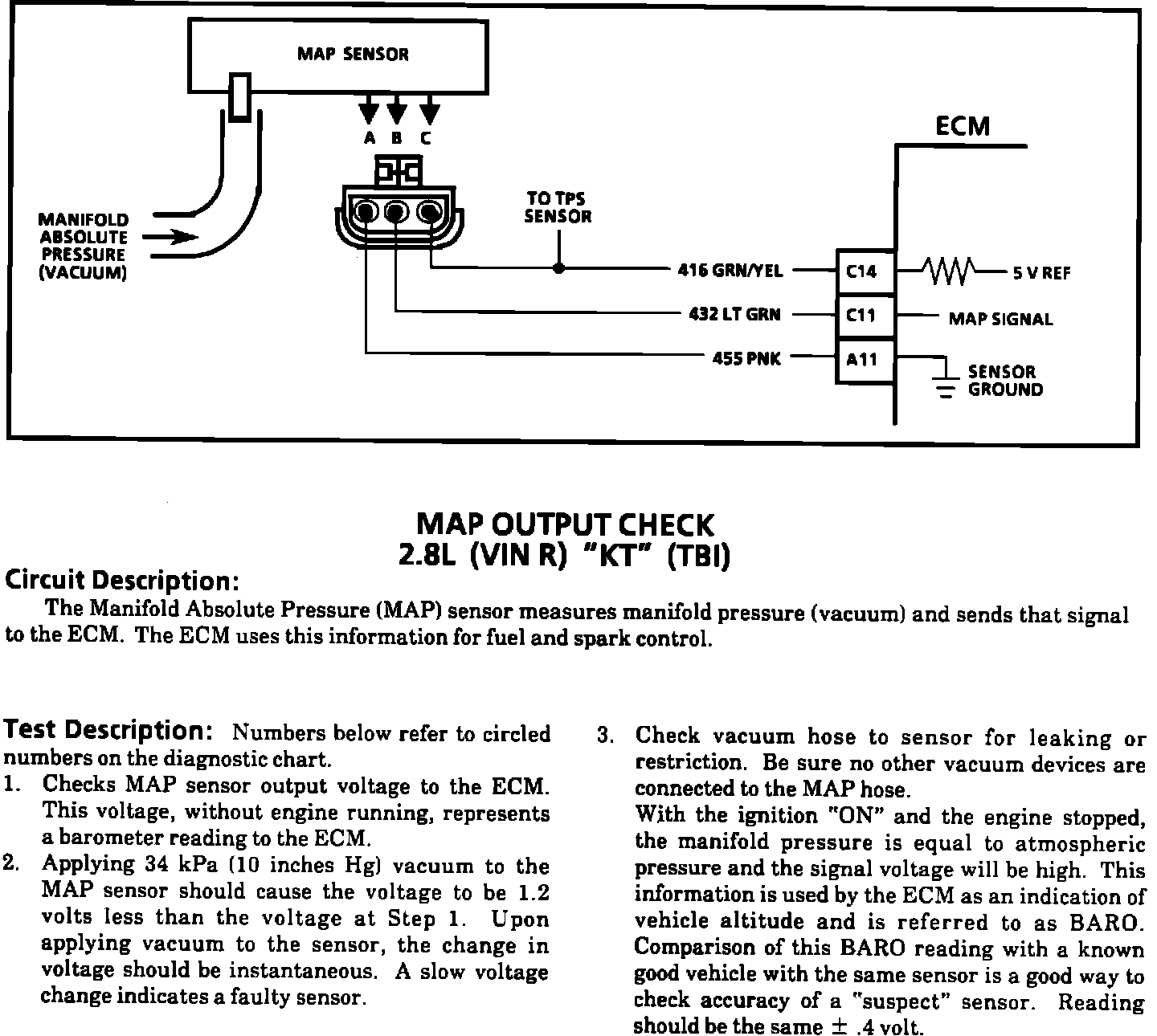

TEST DESCRIPTION
MAP Output Test Description:
