Electronic Control Module (ECM) Connections
>>
Outputs
>>
Exhaust Gas Recirculation (EGR) Control Module Control
Exhaust Gas Recirculation (EGR) Control Module Control

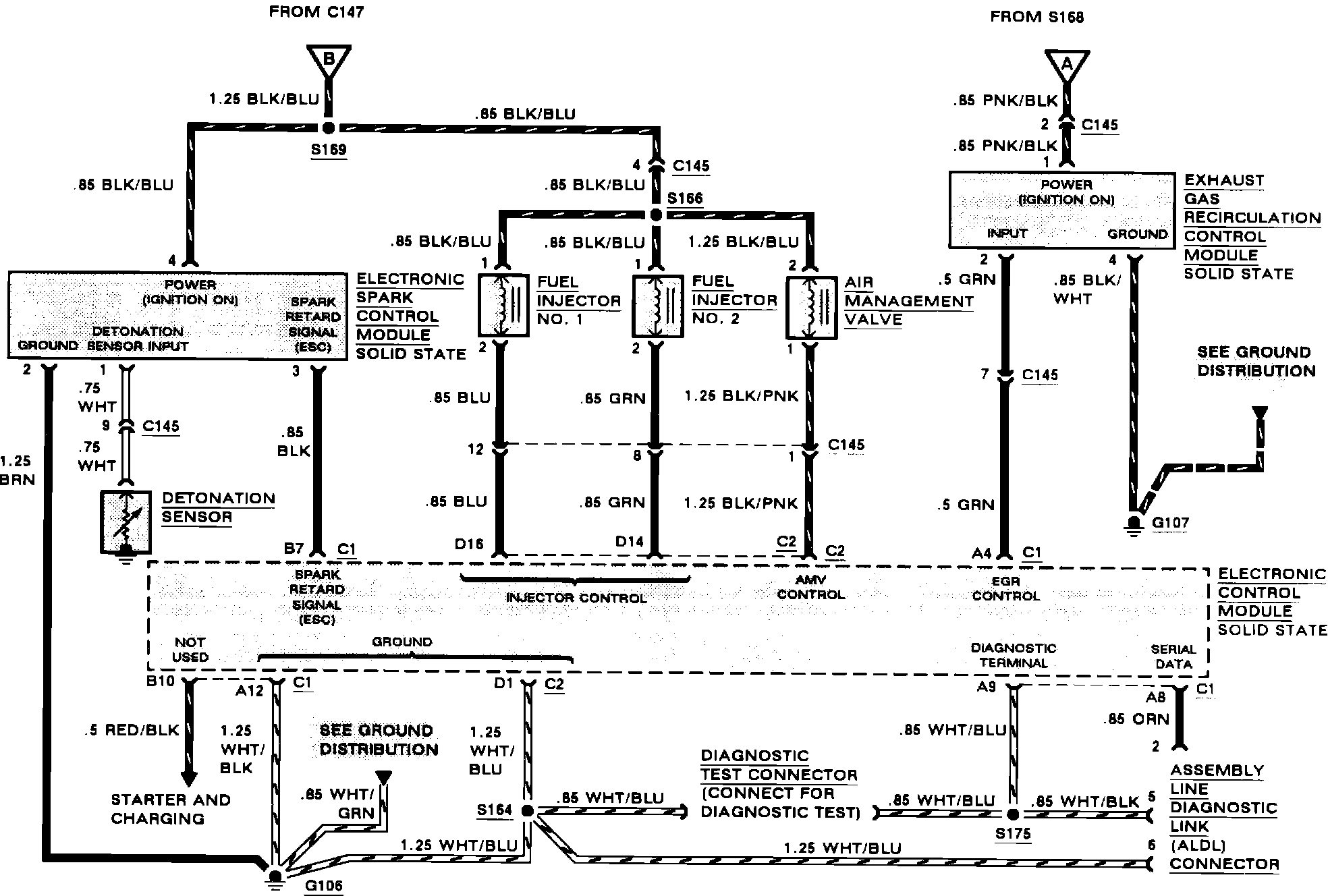

Engine Controls (Fuel Injectors, ECM Grounds, Engine Data Sensors):
