Engine Controls - Tests W/Codes - 2.6L
>>
Diagnostic Circuit Check
>>
Code 13: O2 Sensor Circuit
Code 13: O2 Sensor Circuit

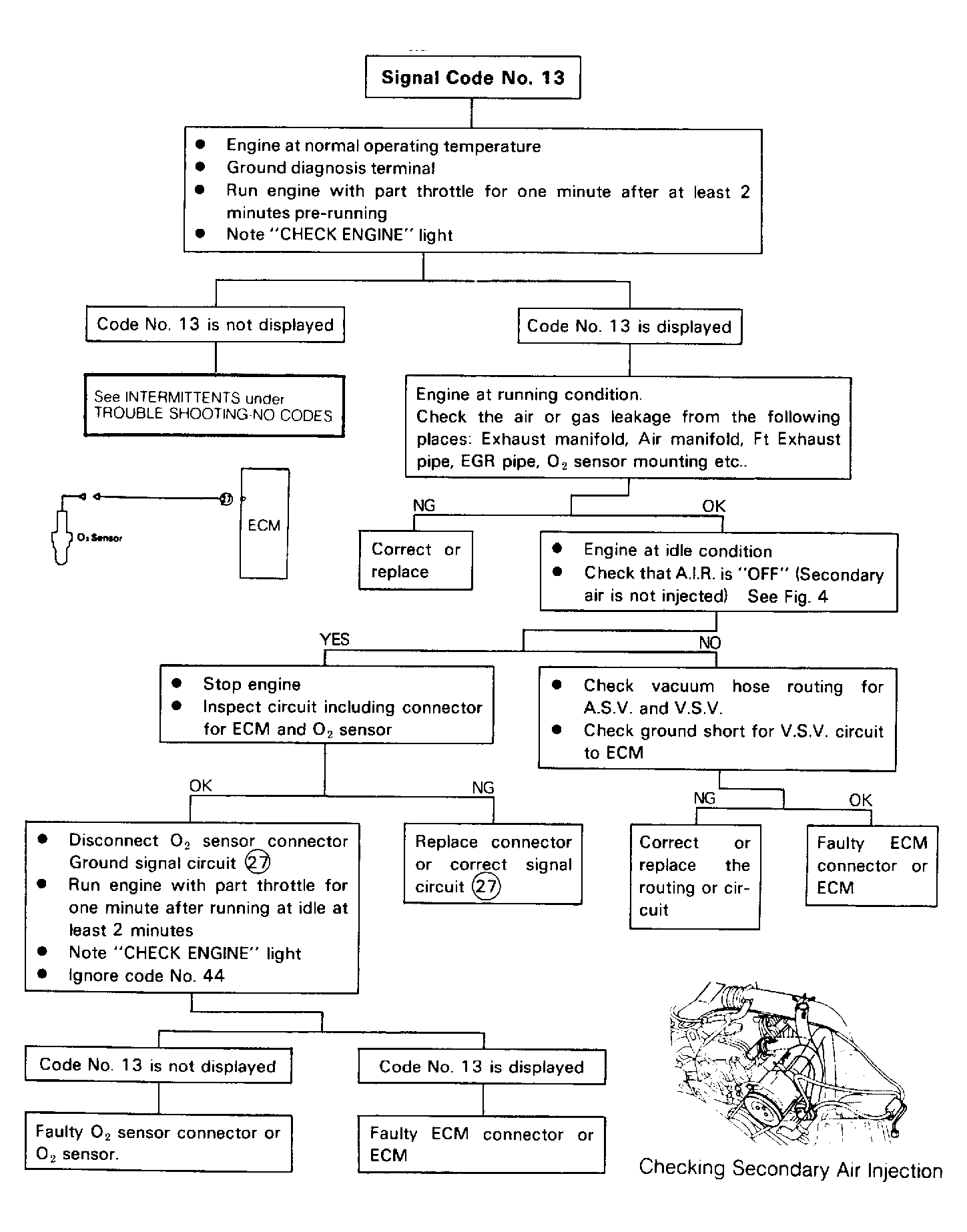

Fig 1: Code 13: Circuit Diagram & Flow Chart O2 Sensor Circuit
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
