Water Temperature Sensor

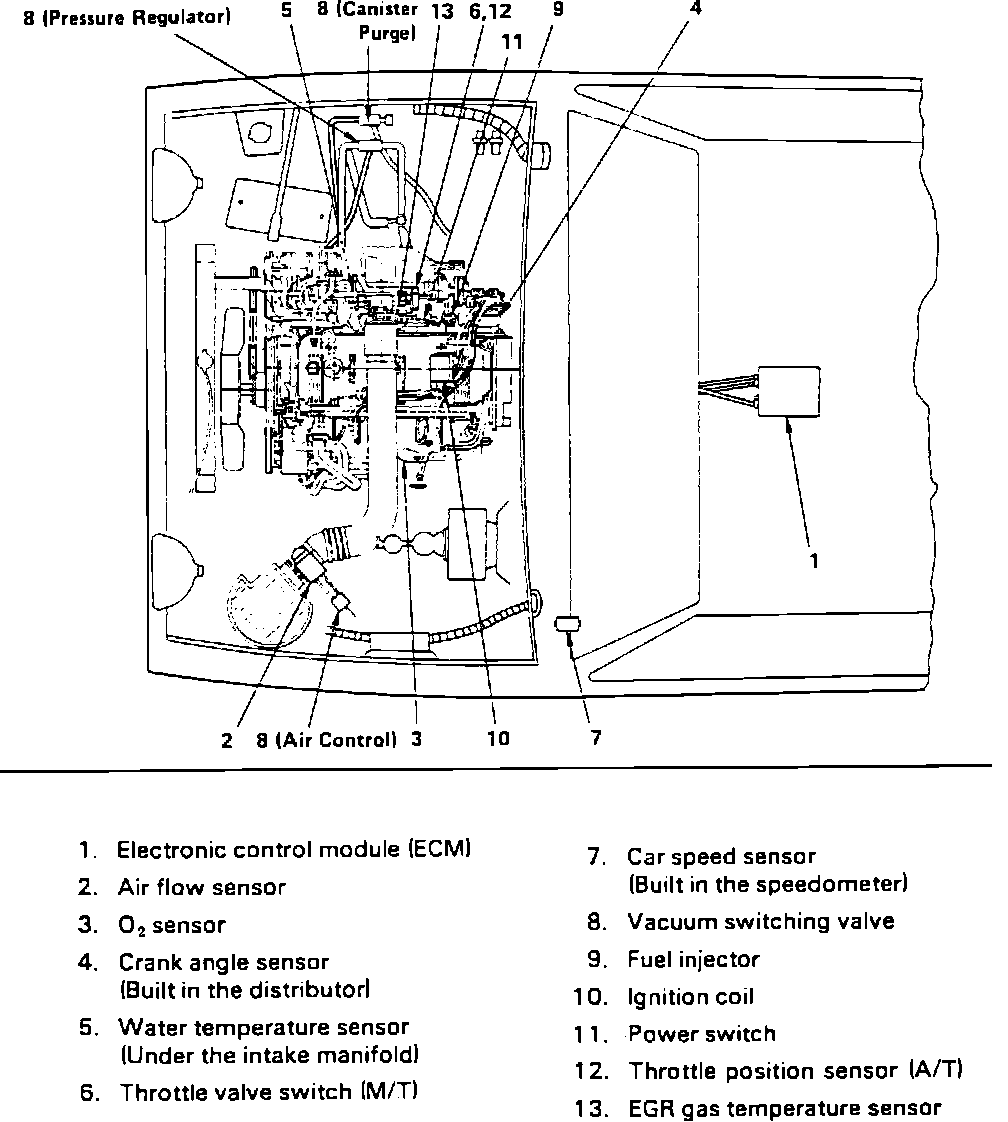

Engine Compartment Component Locations.:




Under Intake Manifold

Applicable to: 1990 Models w/4ZE1 Engine
