Engine Control Module

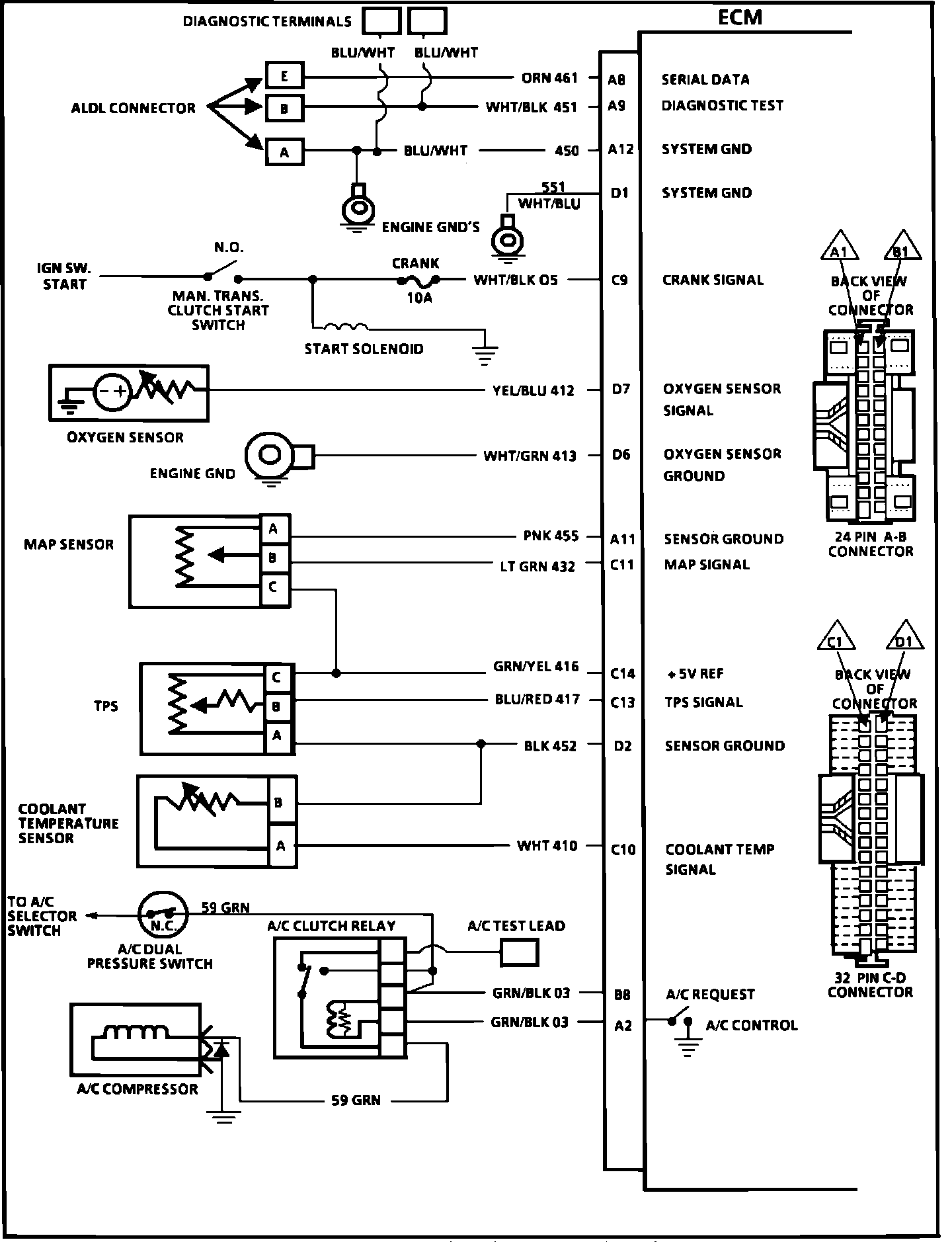

ECM Wiring Diagram (Part 1):

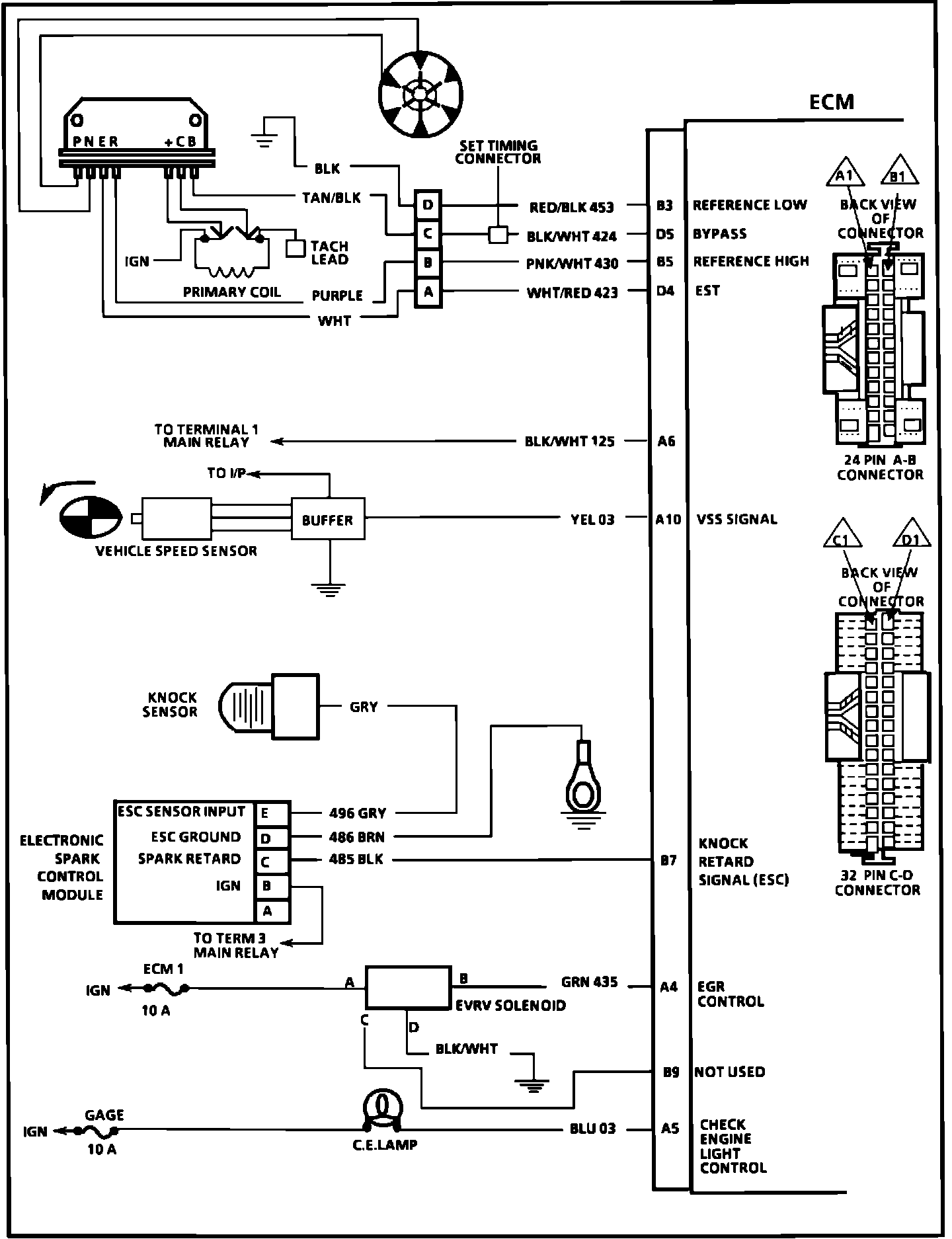

ECM Wiring Diagram (Part 2):

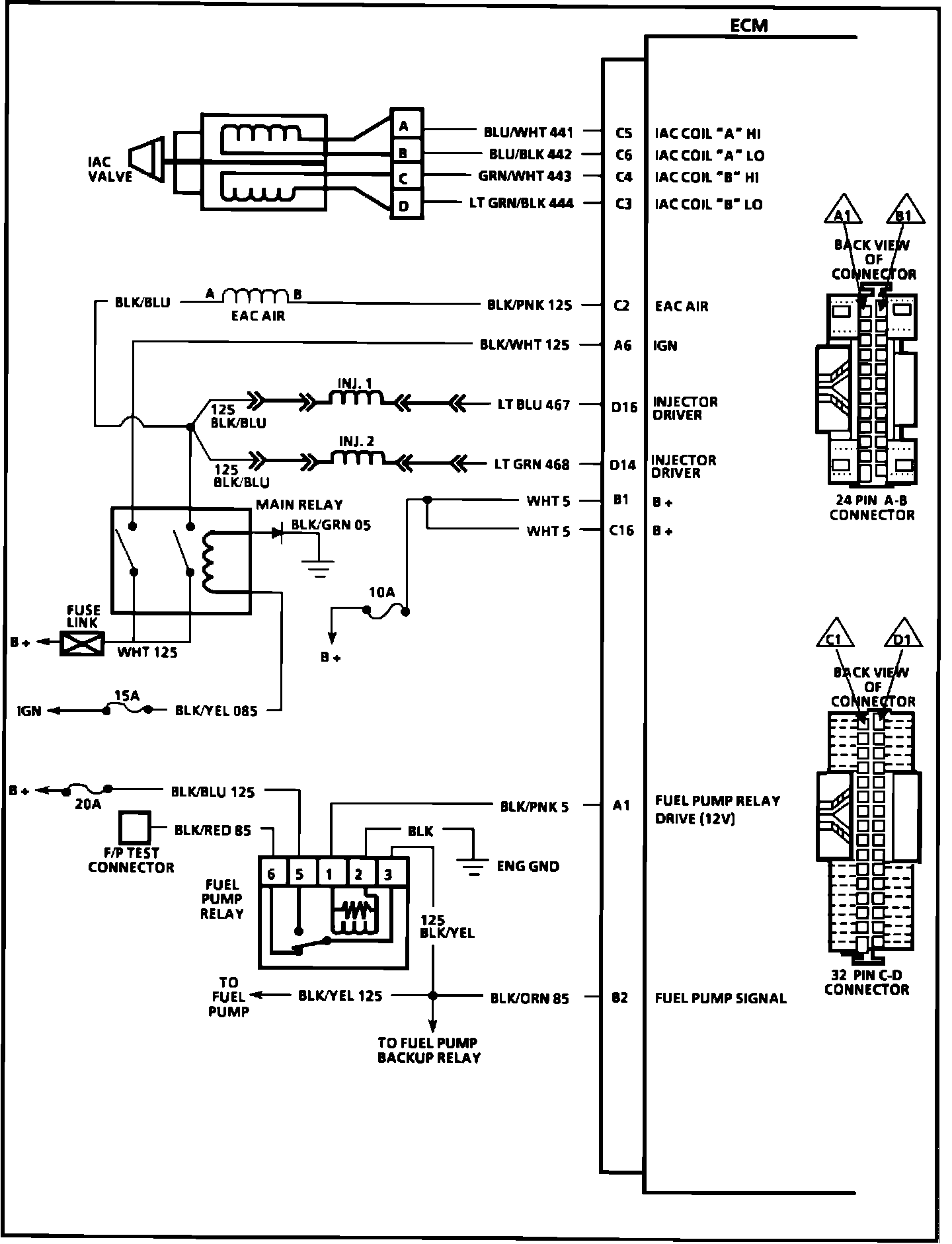

ECM Wiring Diagram (Part 3):
