Torque Specifications

Nm (ft lb)

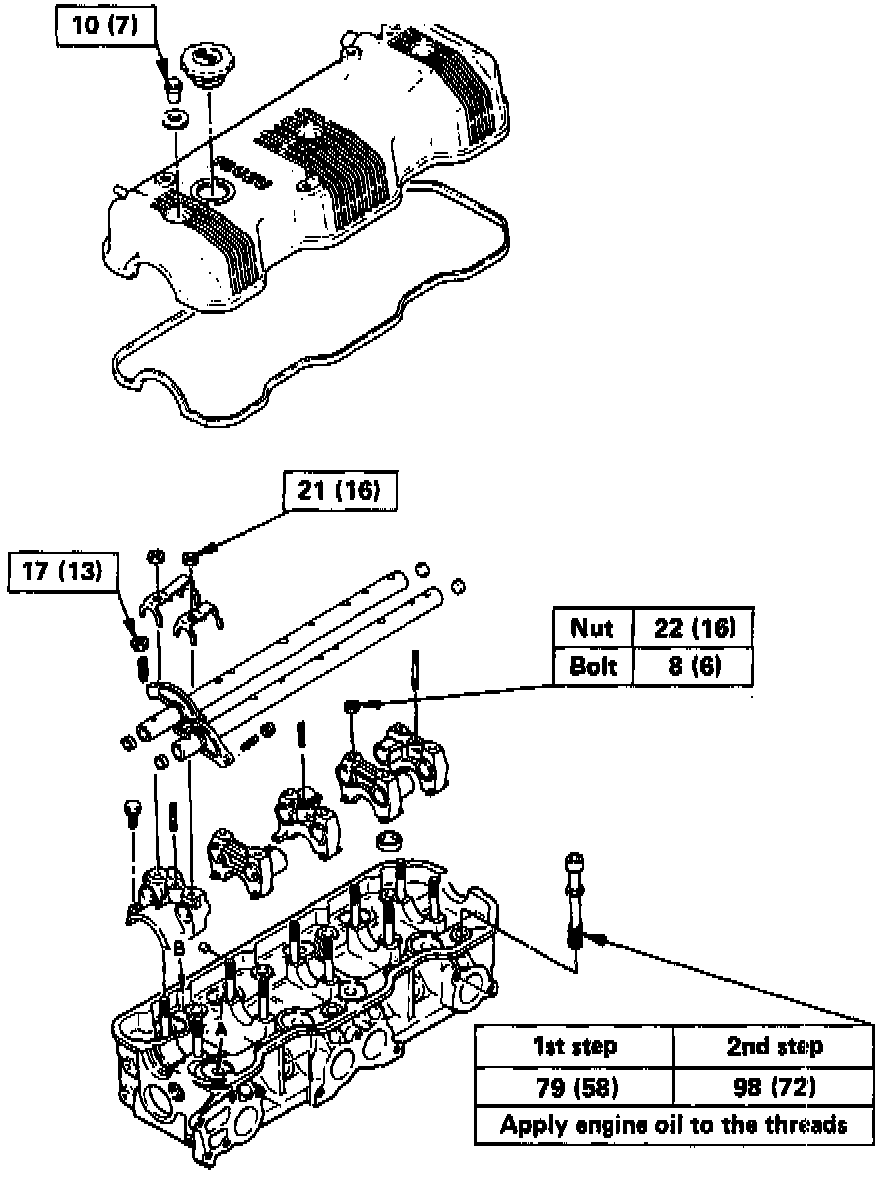

Cylinder Head:

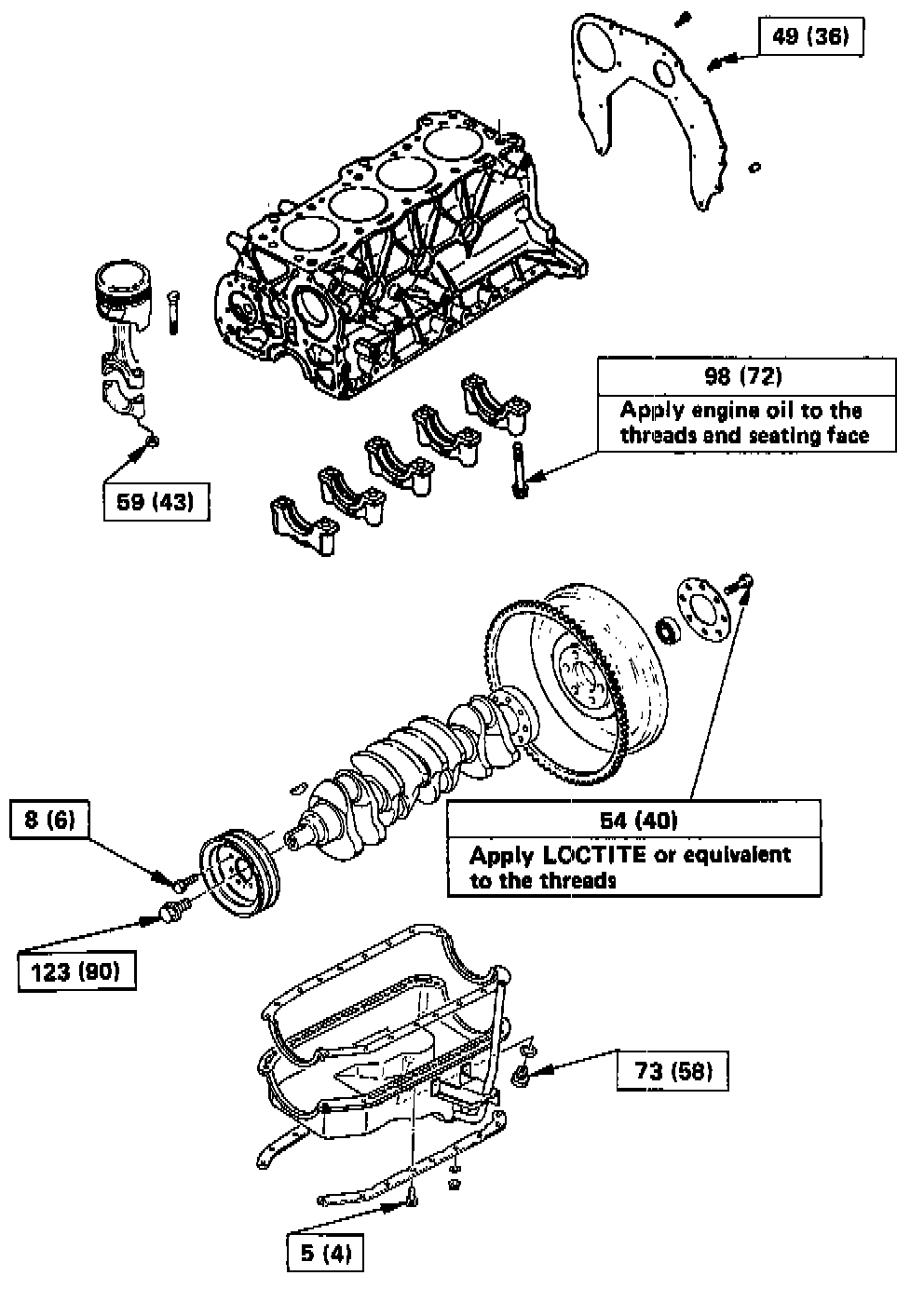

Block:

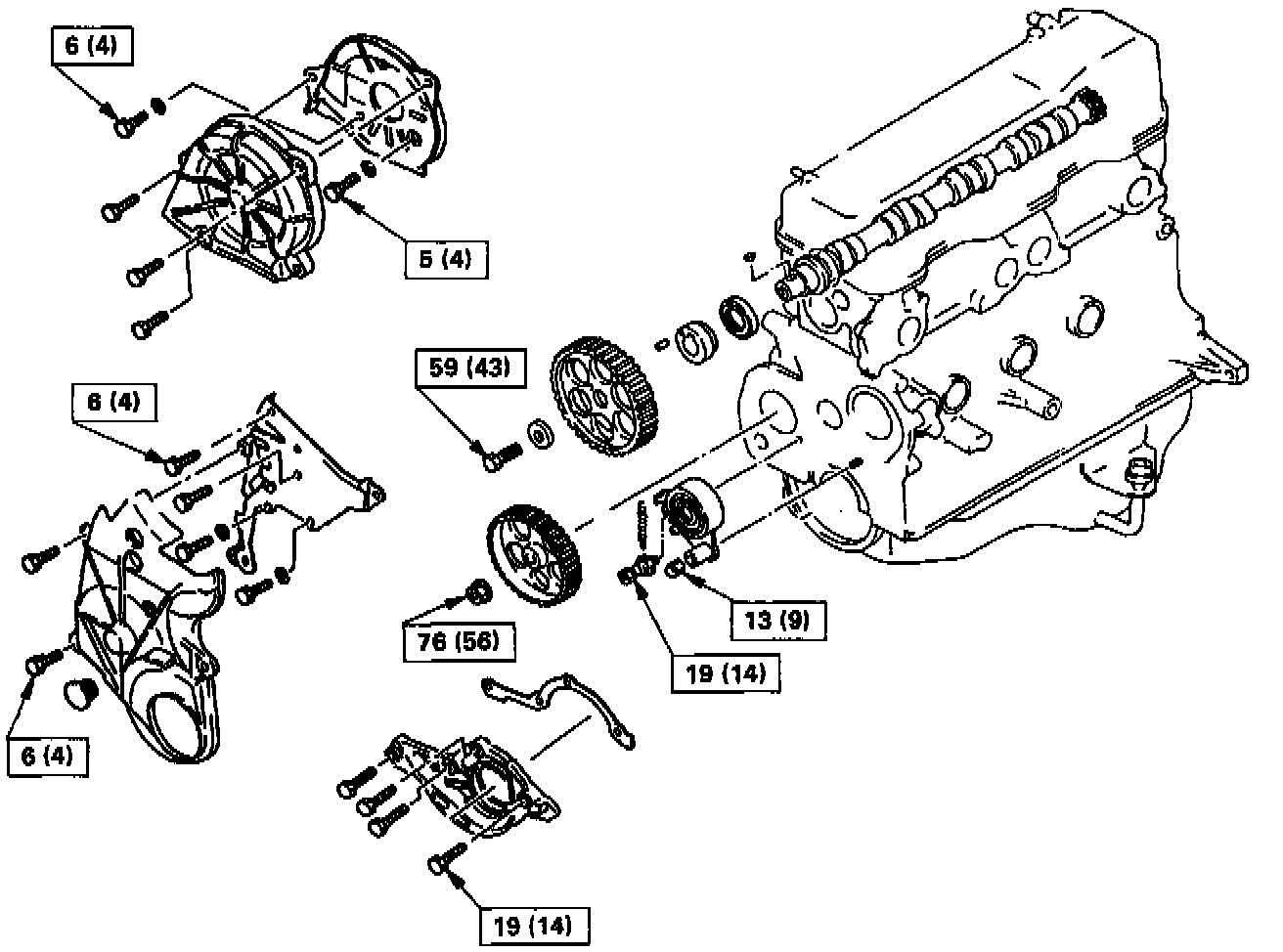

Timing Components:

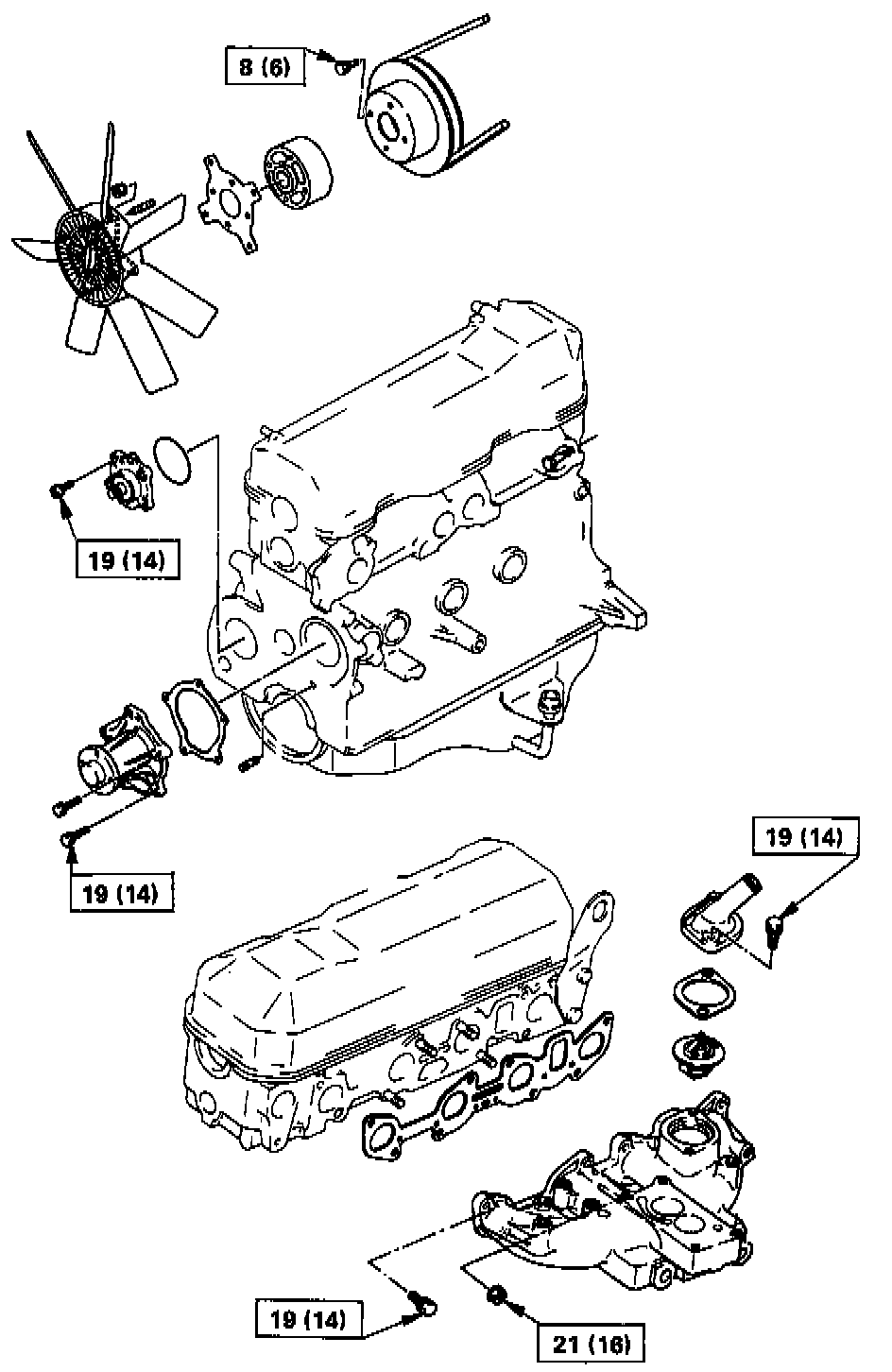

Intake Manifold And Water Pump:

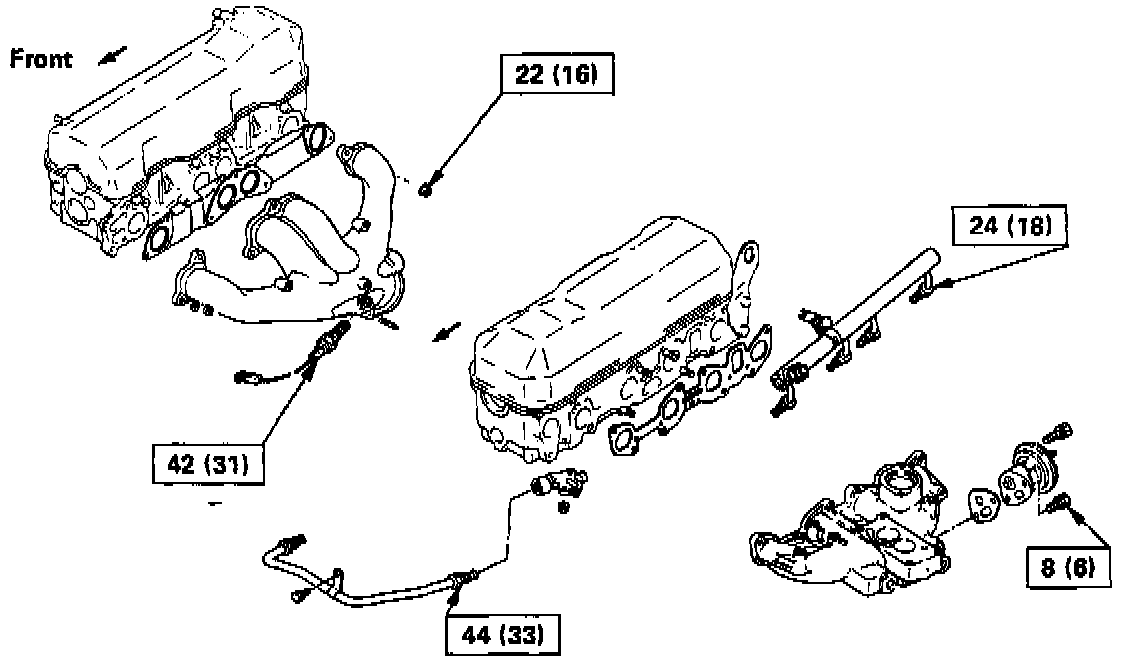

Exhaust Manifold And EGR:

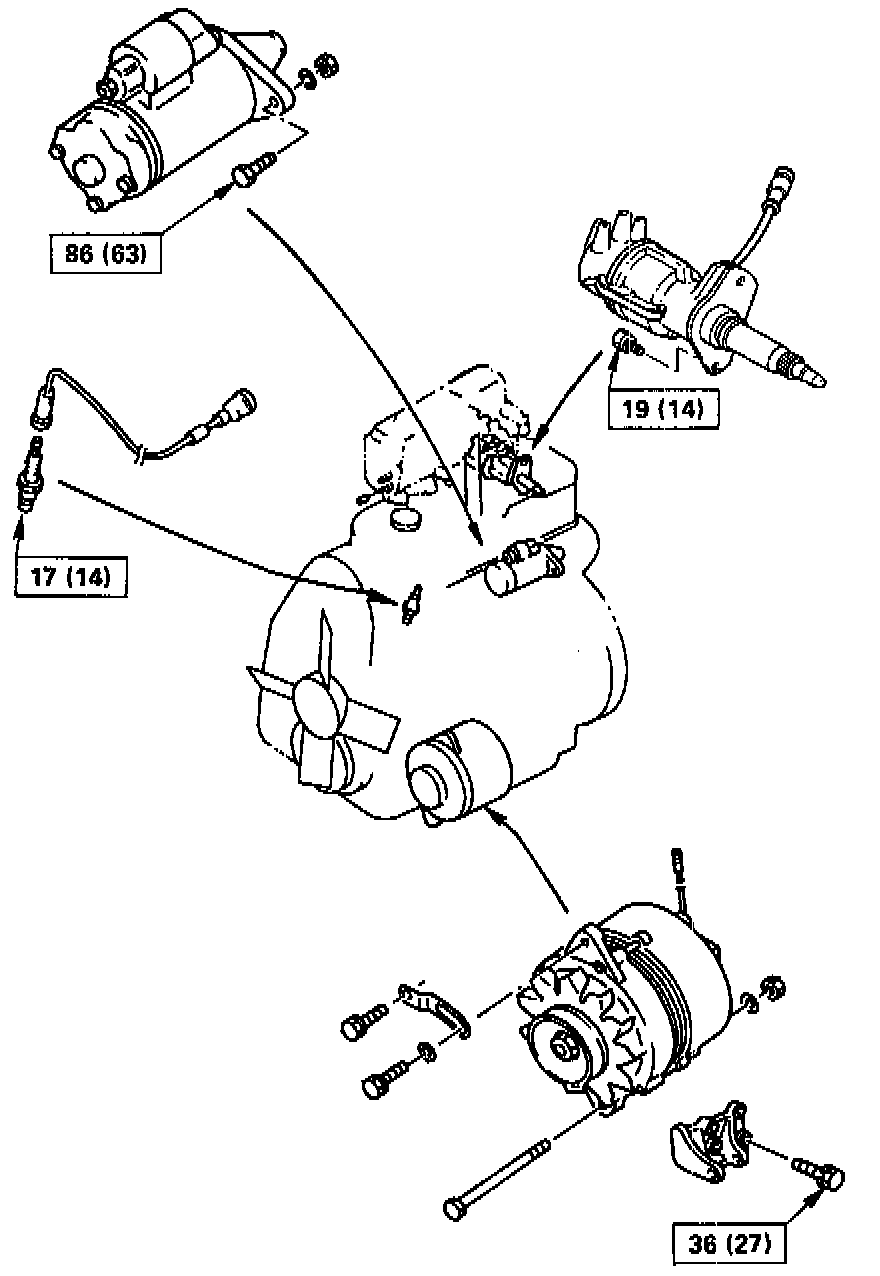

Electrical:

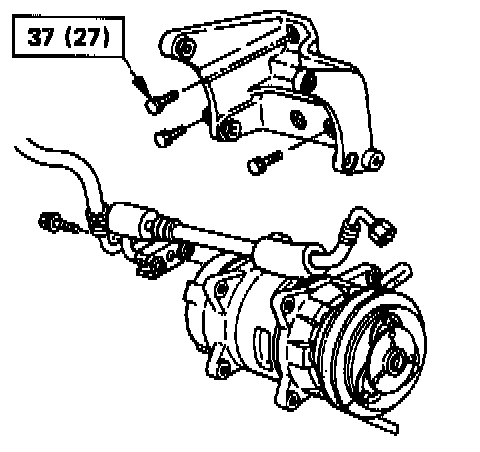

A/C Compressor:

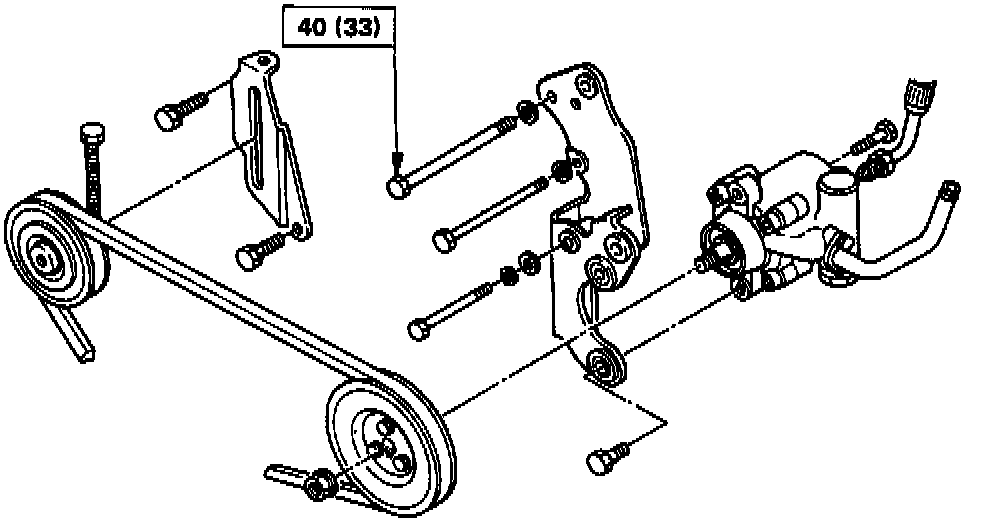

Power Steering Pump:

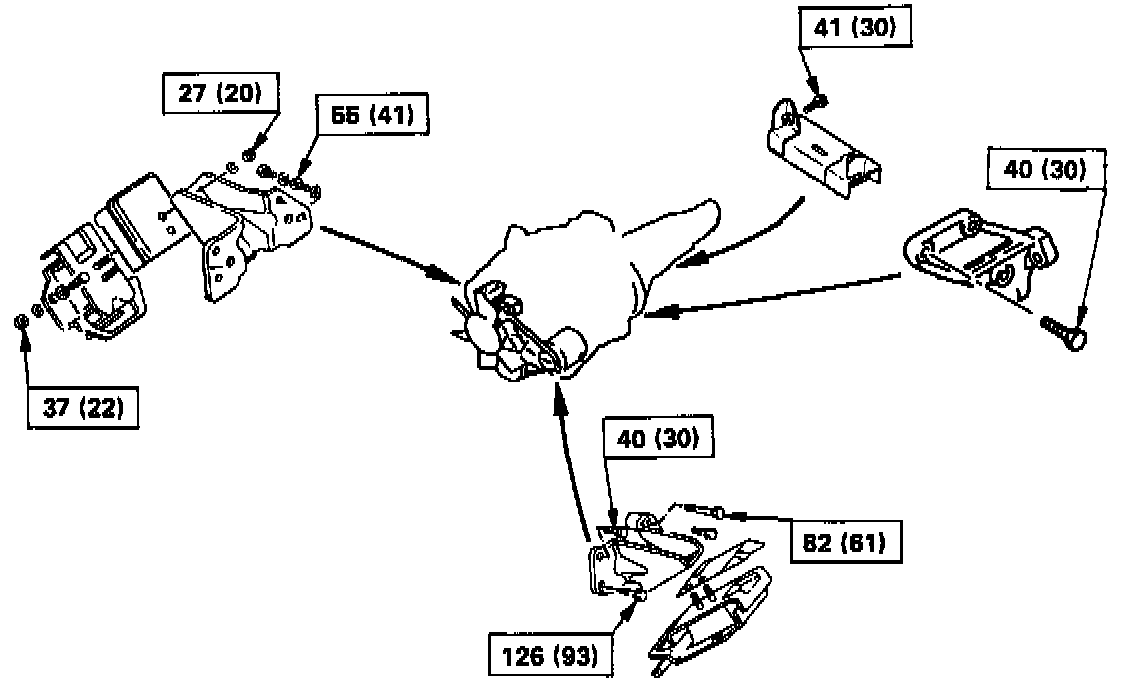

Mounts:
