Home >> Isuzu >> 1989 >> Trooper II V6-2827cc 2.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

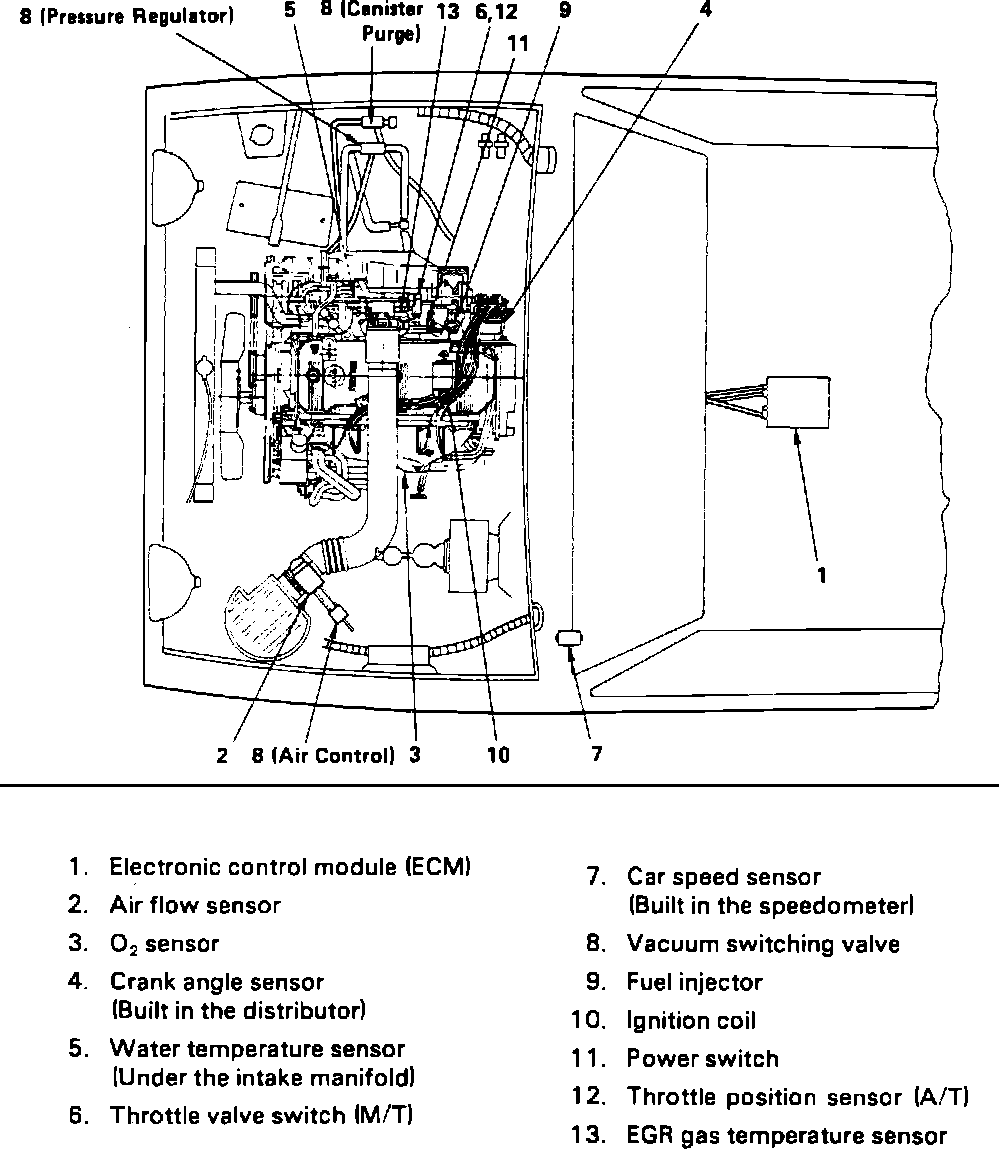

Engine Compartment Component Locations.:





Below Console

Applicable to: 1989 Models
