Home >> Isuzu >> 1989 >> Impulse L4-2.3L (4ZD1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> Engine Control Module

Engine Control Module

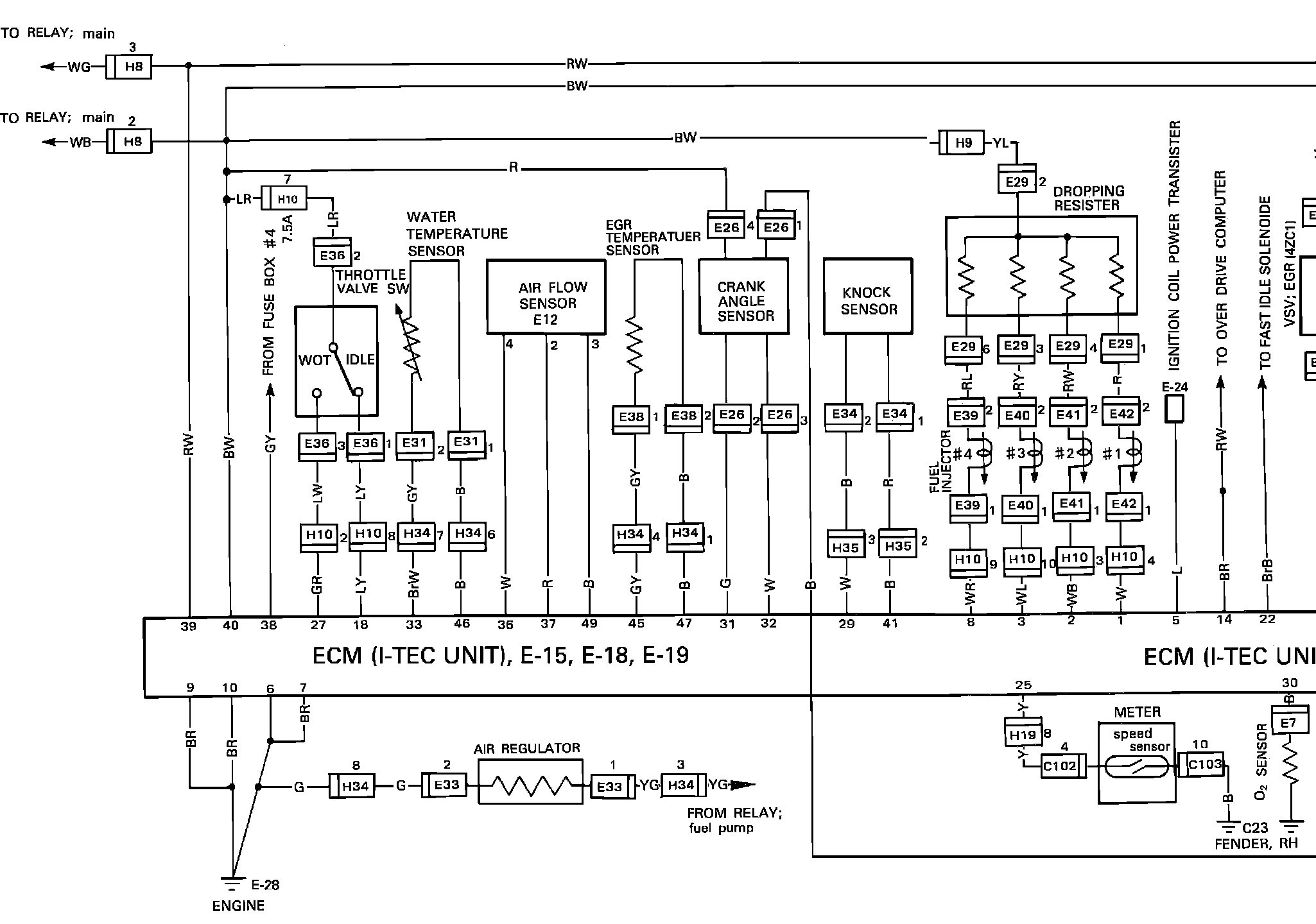

w�& I-Tec System Wiring Circuit:
