Home >> Isuzu >> 1989 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Testing and Inspection >> Non-Turbo

Non-Turbo

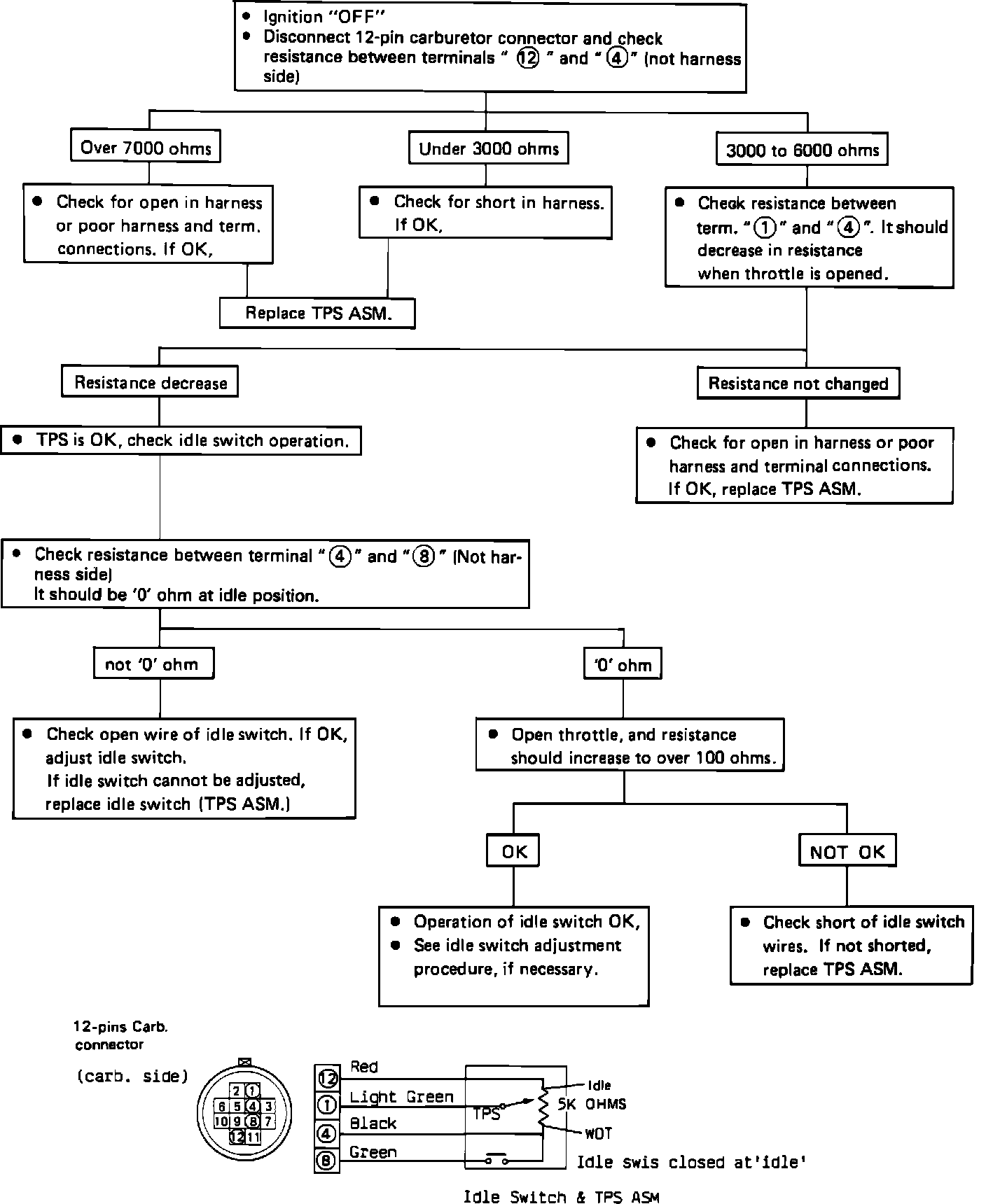

Idle Switch And TPS Diagnostic Chart:
