Home >> Isuzu >> 1989 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Speed Control Set Speed Inoperative

Speed Control Set Speed Inoperative

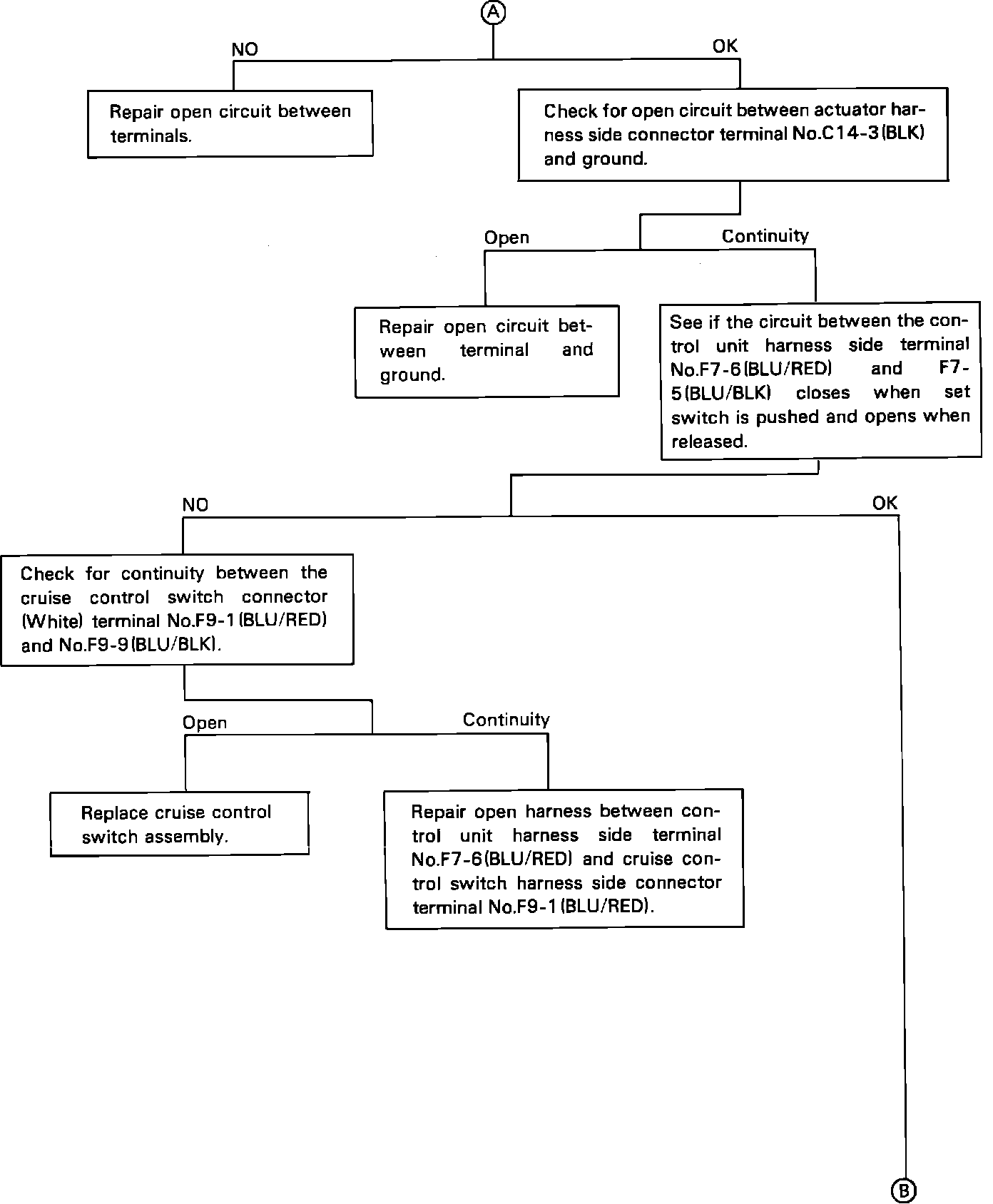

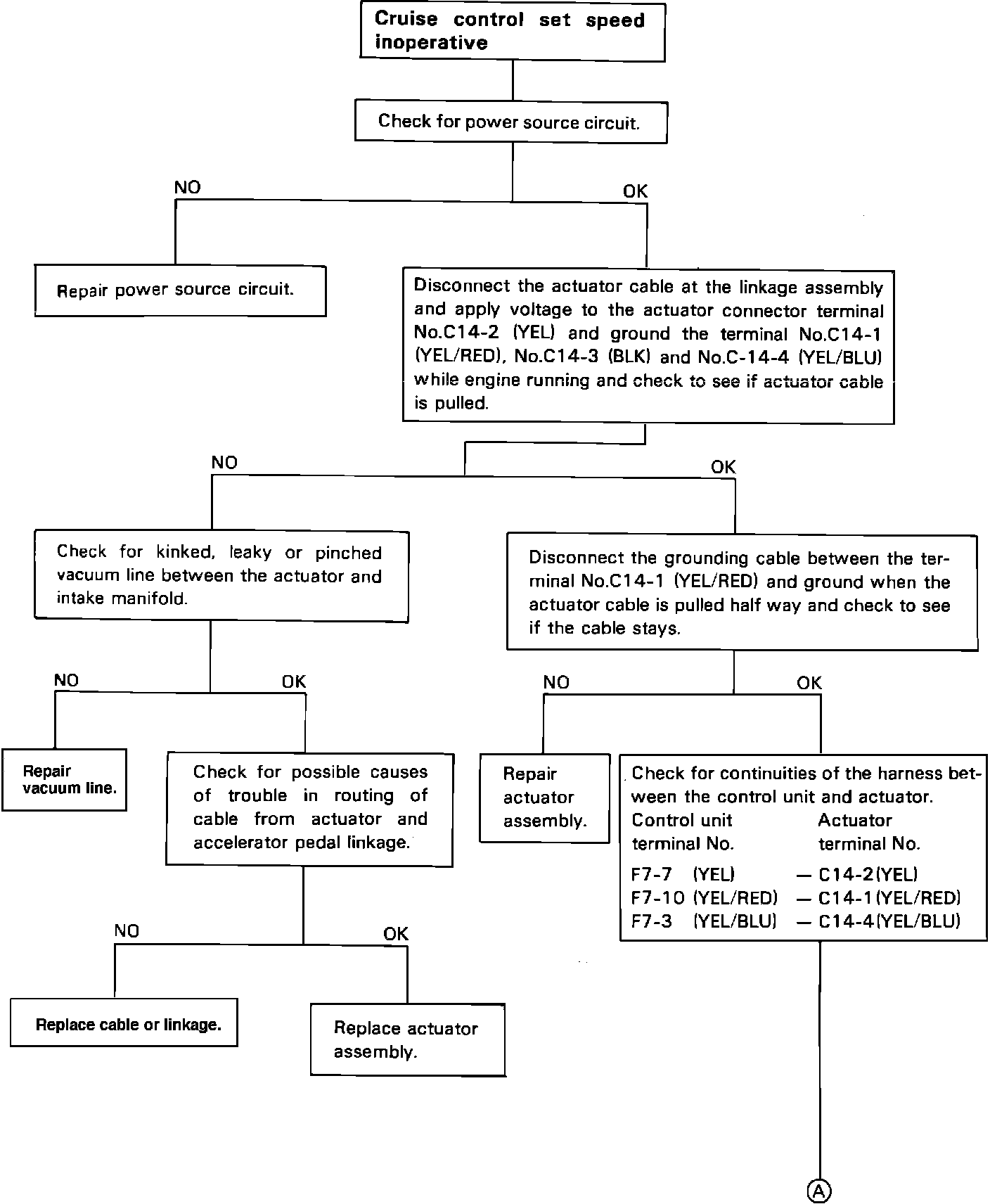

Fig. 21 Speed control set speed inoperative (Part 1 of 3).:

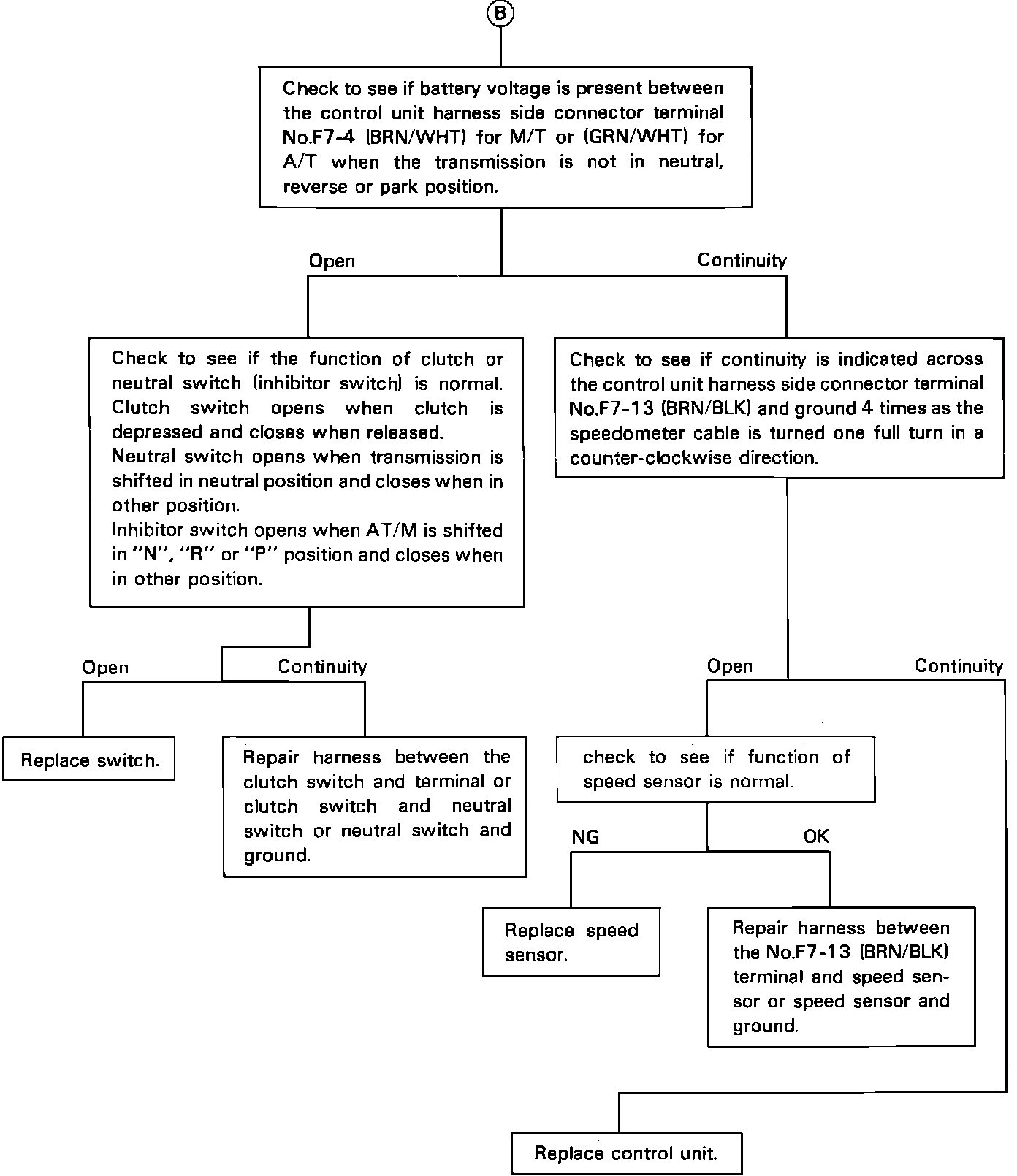

Fig. 21 Speed control set speed inoperative (Part 2 of 3).:



Fig. 21 Speed control set speed inoperative (Part 3 of 3).:
