Diagnostic Circuit Check

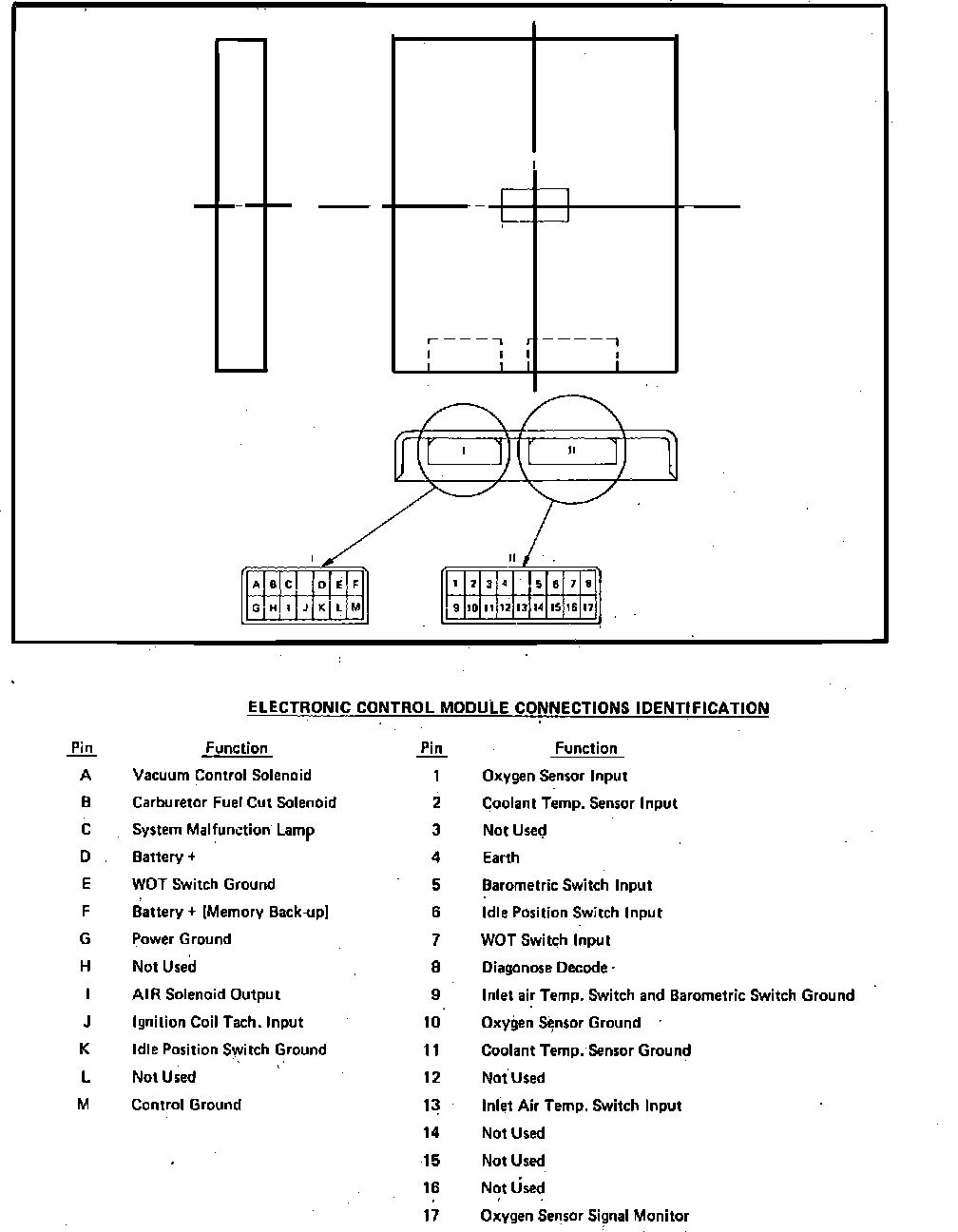

Fig. 6 Electronic control module terminal identification.:

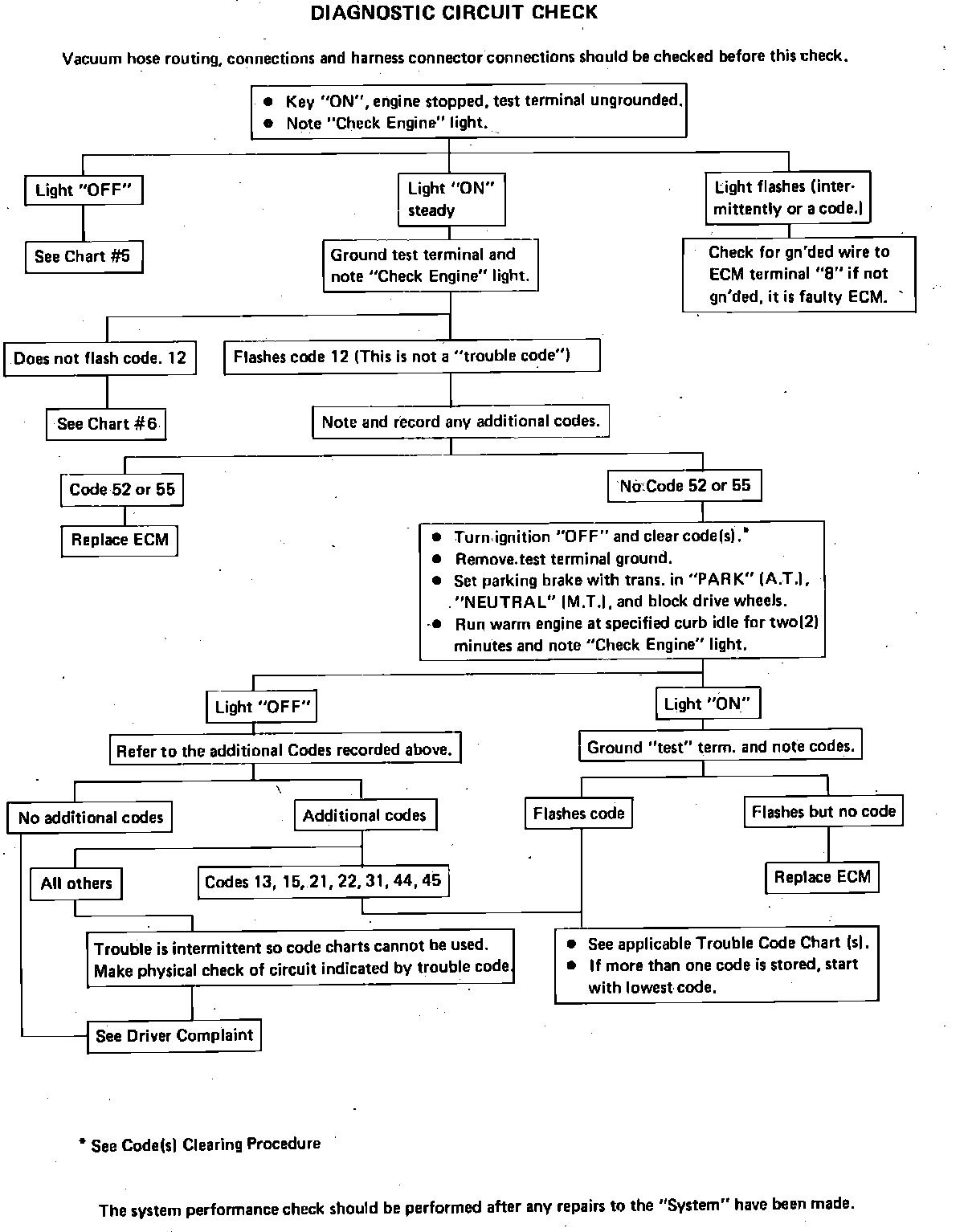

Fig. 8 Diagnosis circuit check.:

During the following procedures, it may be necessary to identify the ECM terminals. Refer to Fig. 6 for identification.
Refer to Fig. 8 for Diagnostic Circuit Check.
