Home >> Isuzu >> 1987 >> Pickup L4-2254cc 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

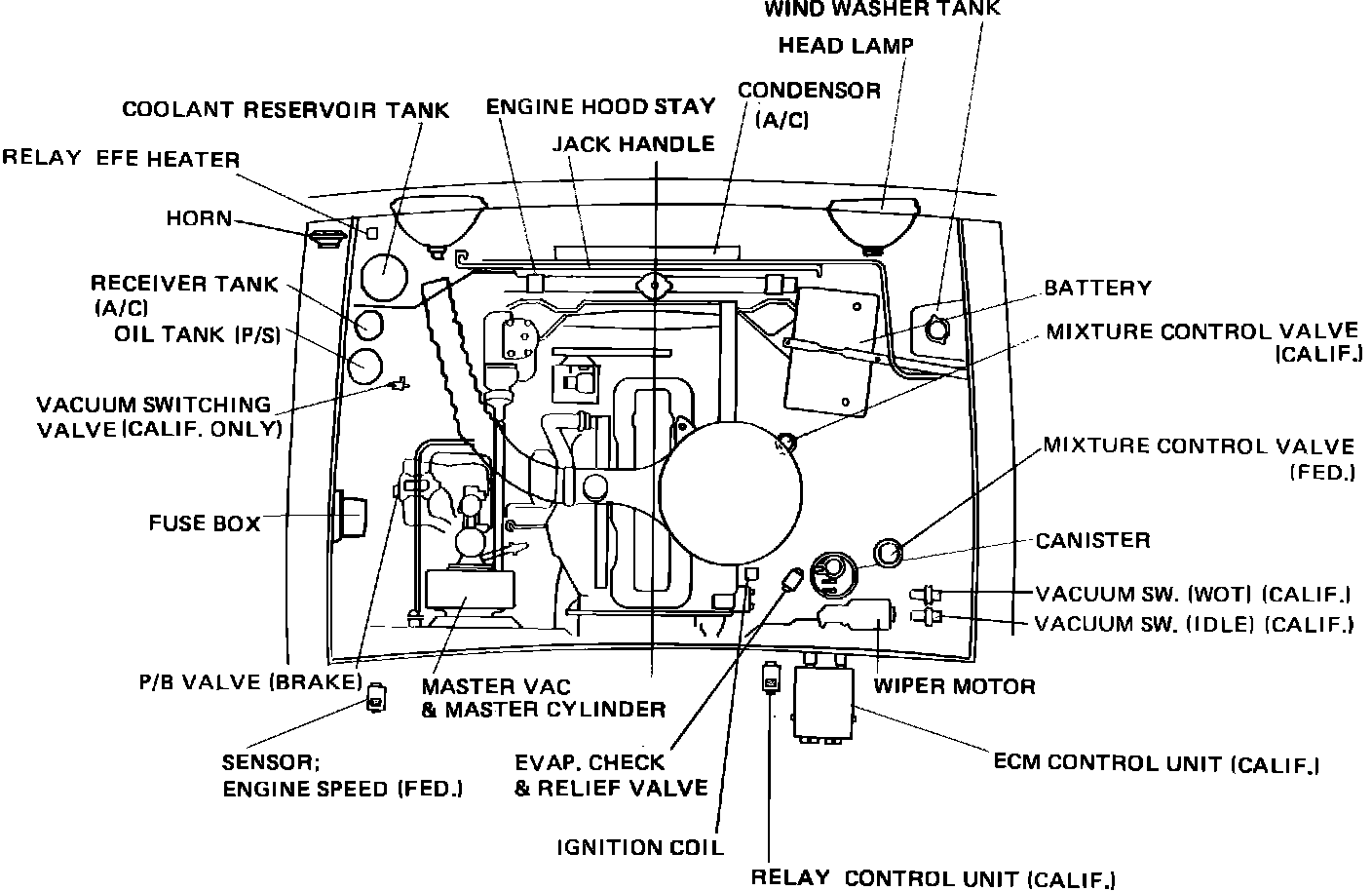

Fig. 234 Underhood Unit Location:
