Home >> Isuzu >> 1987 >> Impulse L4-1994cc 2.0L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams

Starting System: Diagrams

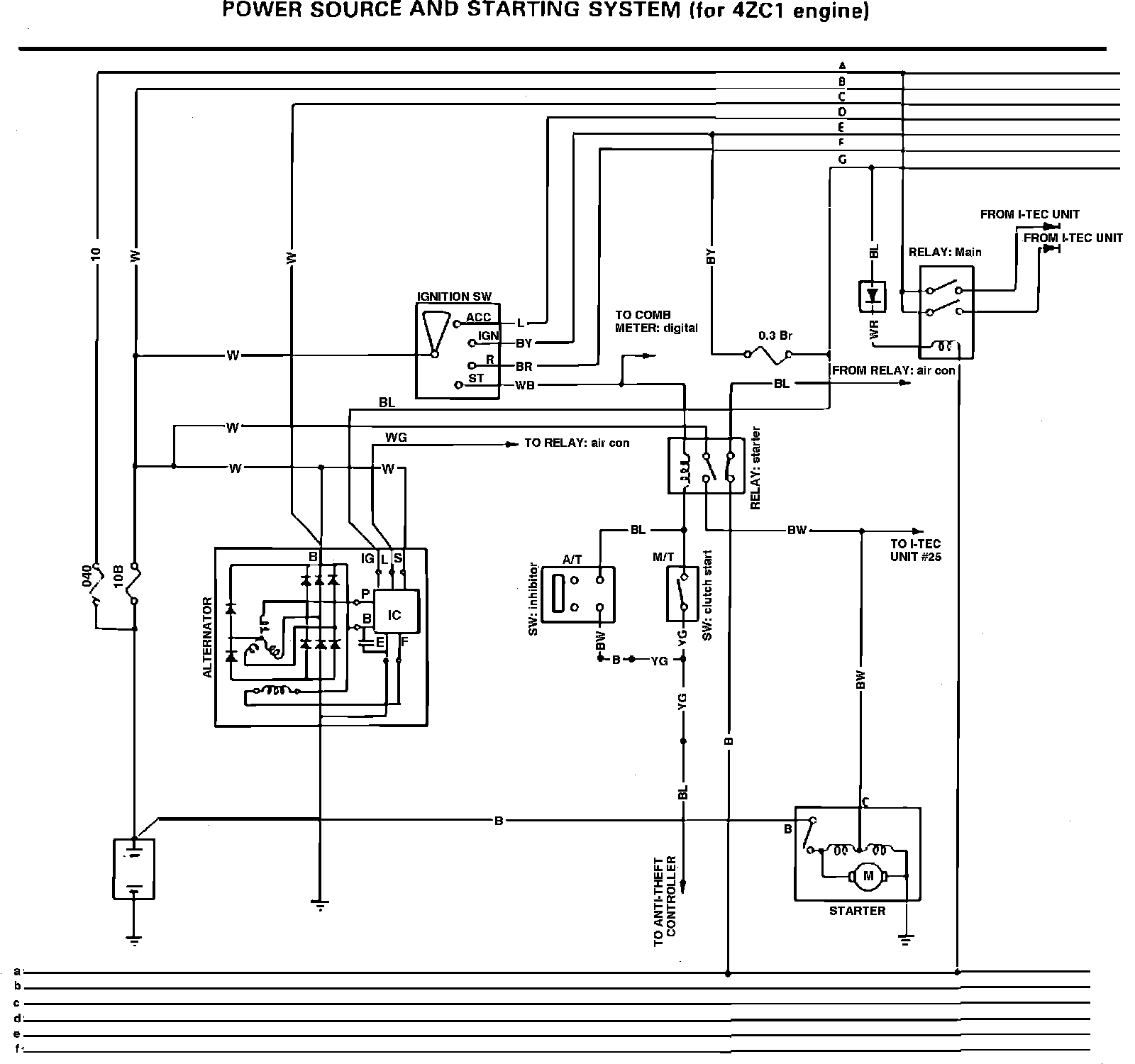

Power Source & Starting System:
