Home >> Isuzu >> 1987 >> Impulse L4-1994cc 2.0L >> Repair and Diagnosis >> Cruise Control >> Diagrams

Cruise Control: Diagrams

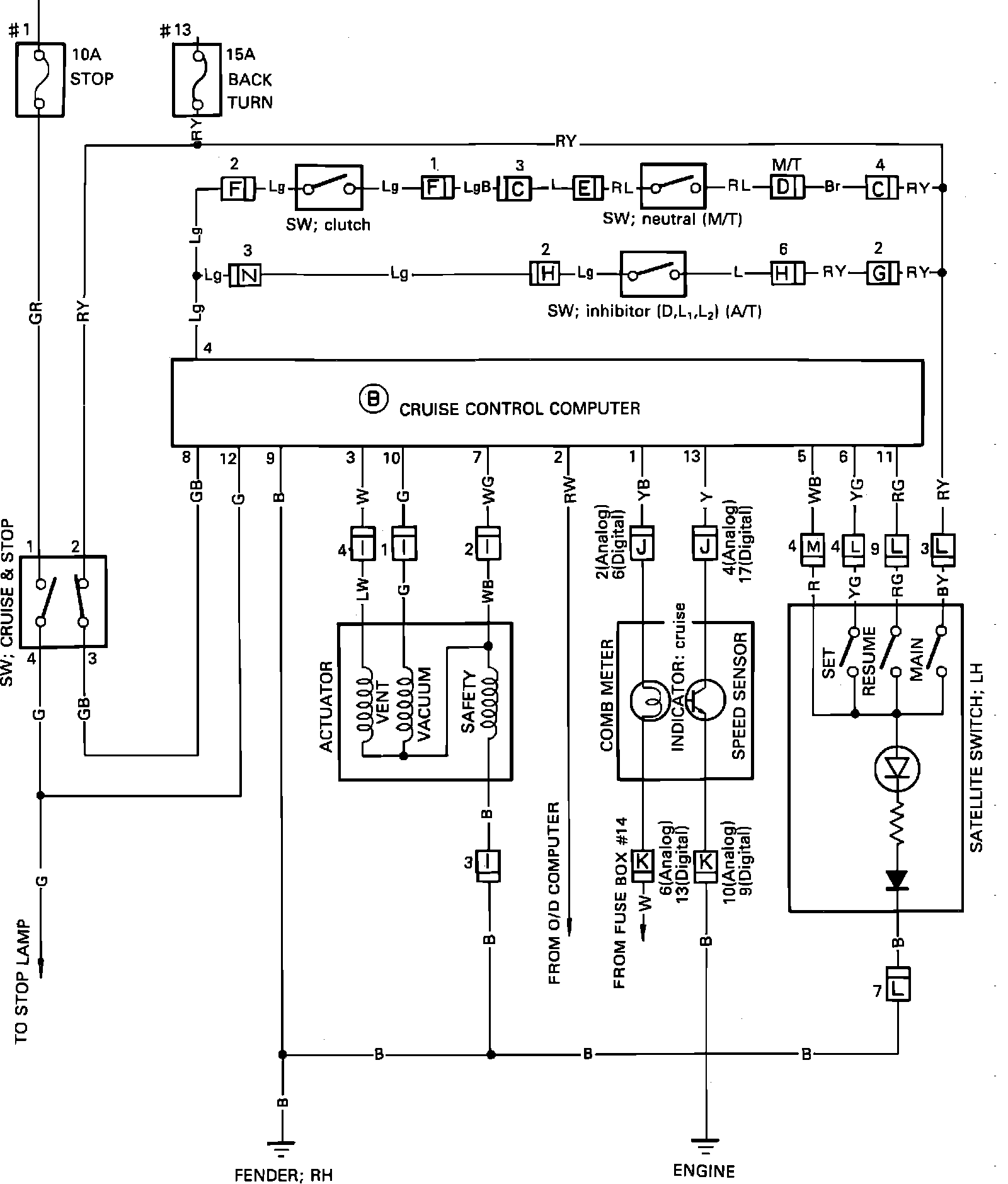

Cruise Control Wiring Circuit:
