Engine Compartment Reference Diagram

Fig. 2 Engine compartment reference diagram:

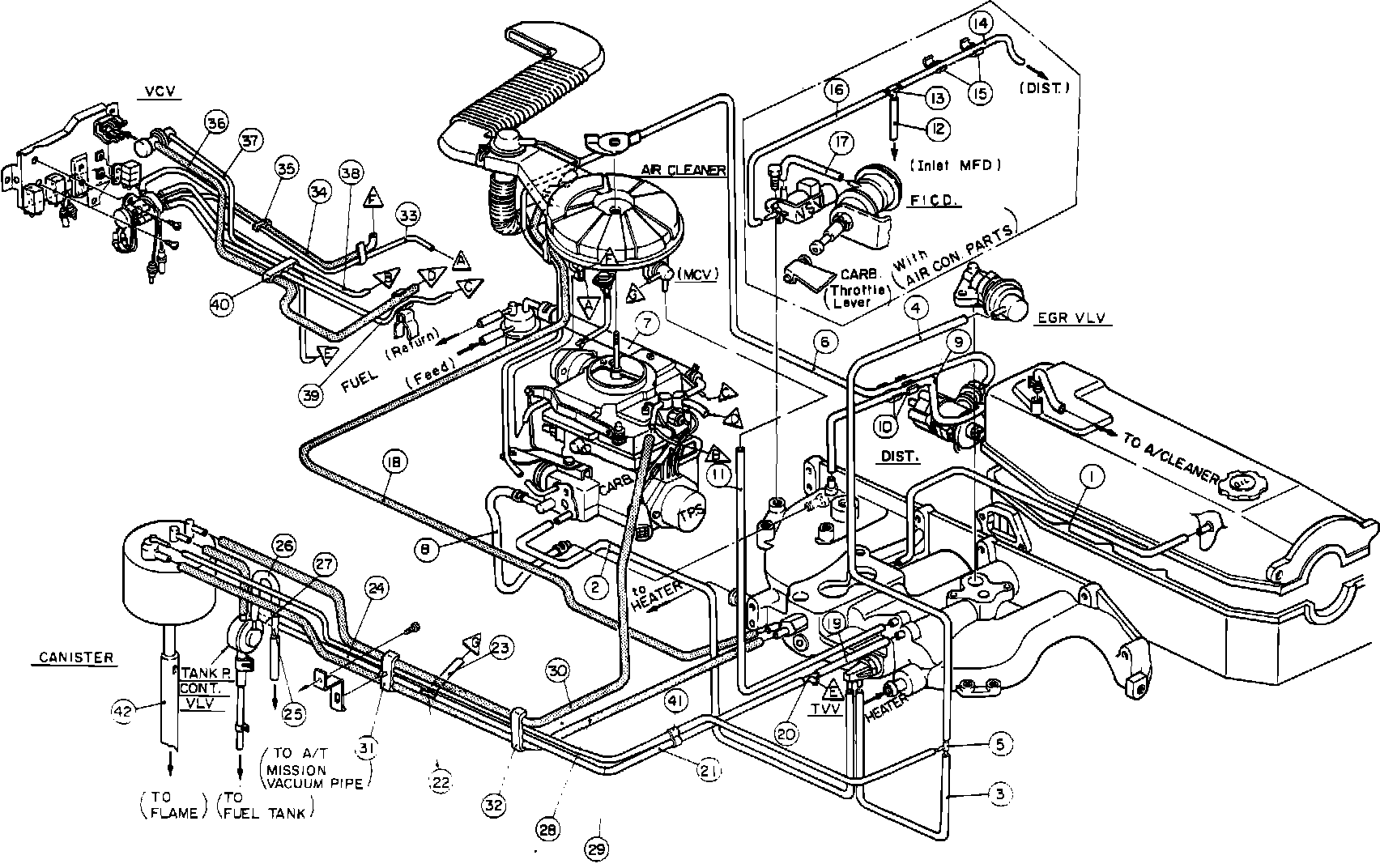

Fig. 2 Engine compartment reference diagram:
