Home >> Isuzu >> 1982 >> Pickup L4-1817cc (G180z) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Full Close Switch >> Testing and Inspection

Throttle Full Close Switch: Testing and Inspection

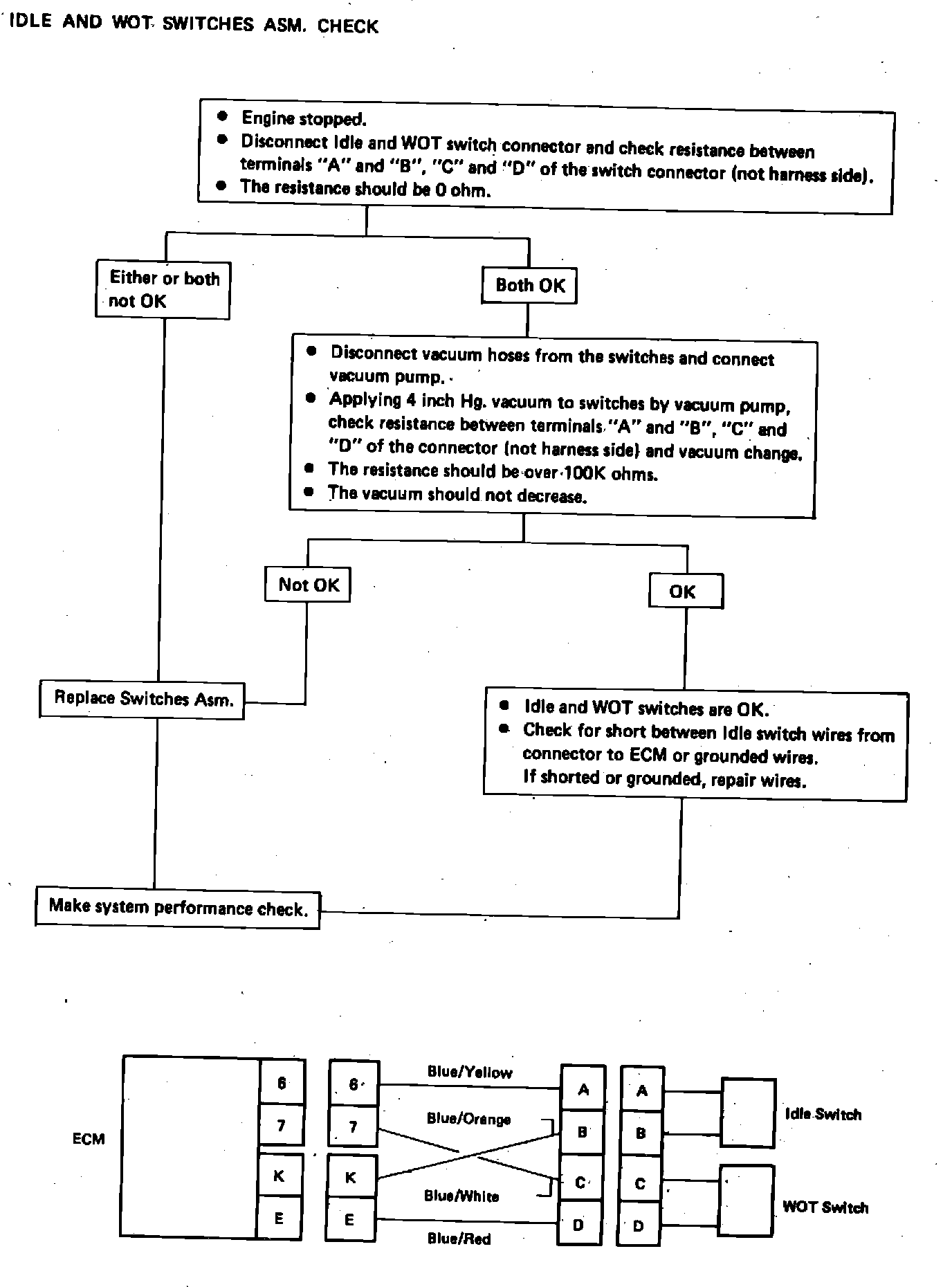

Fig. 46 Idle & WOT switch assembly check.:
