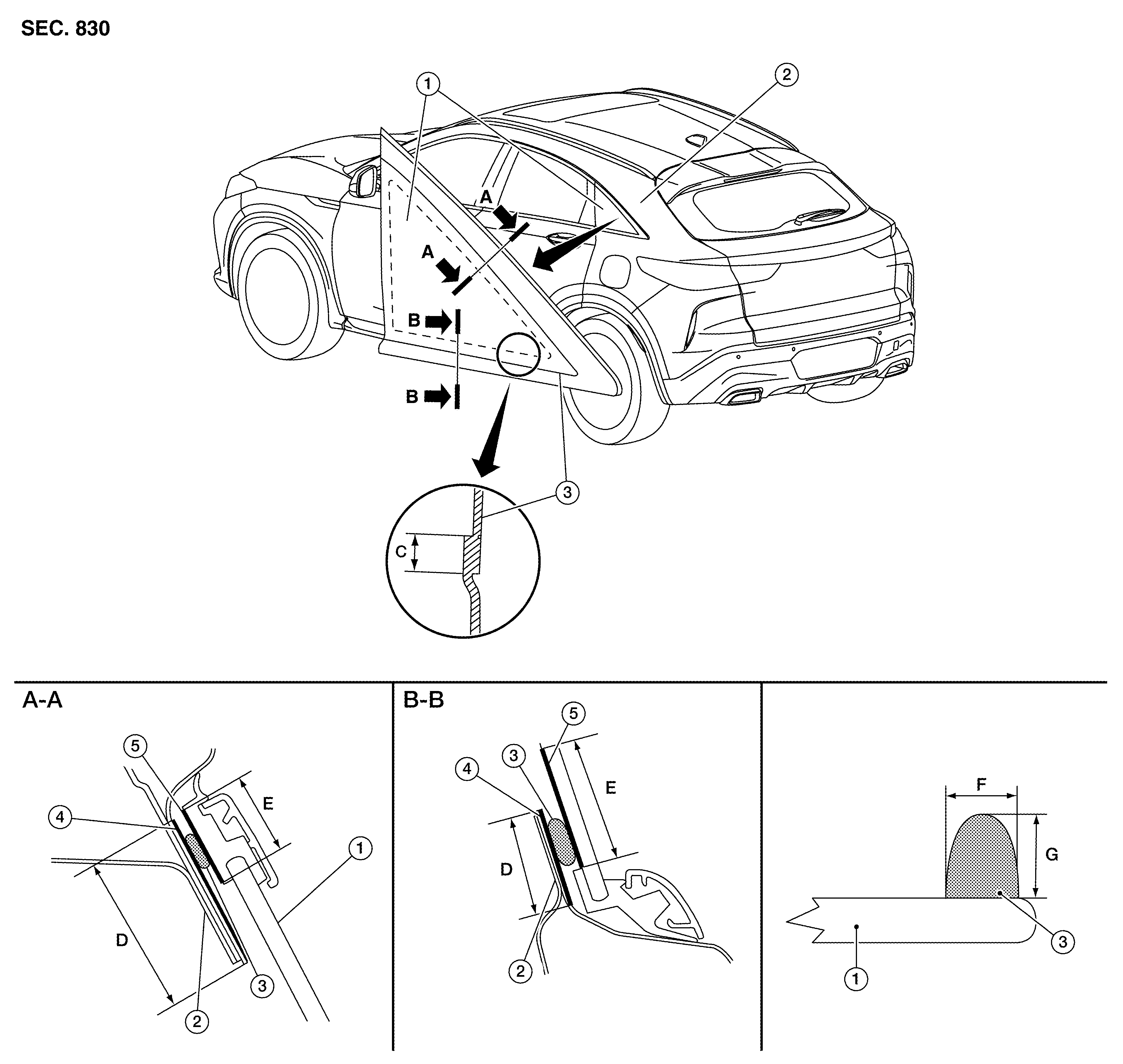

Exploded View

GNSDB140468Courtesy of NISSAN NORTH AMERICA, INC.
1. Quarter window glass 2. Body side outer 3. Adhesive
4. Body primer 5. Glass primer C. 30 mm (1.18 in)
D. 20 mm (0.79 in) E. 15 mm (0.59 in) F. 7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
G. 12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
