Yaw Rate/Side G Sensor
>>

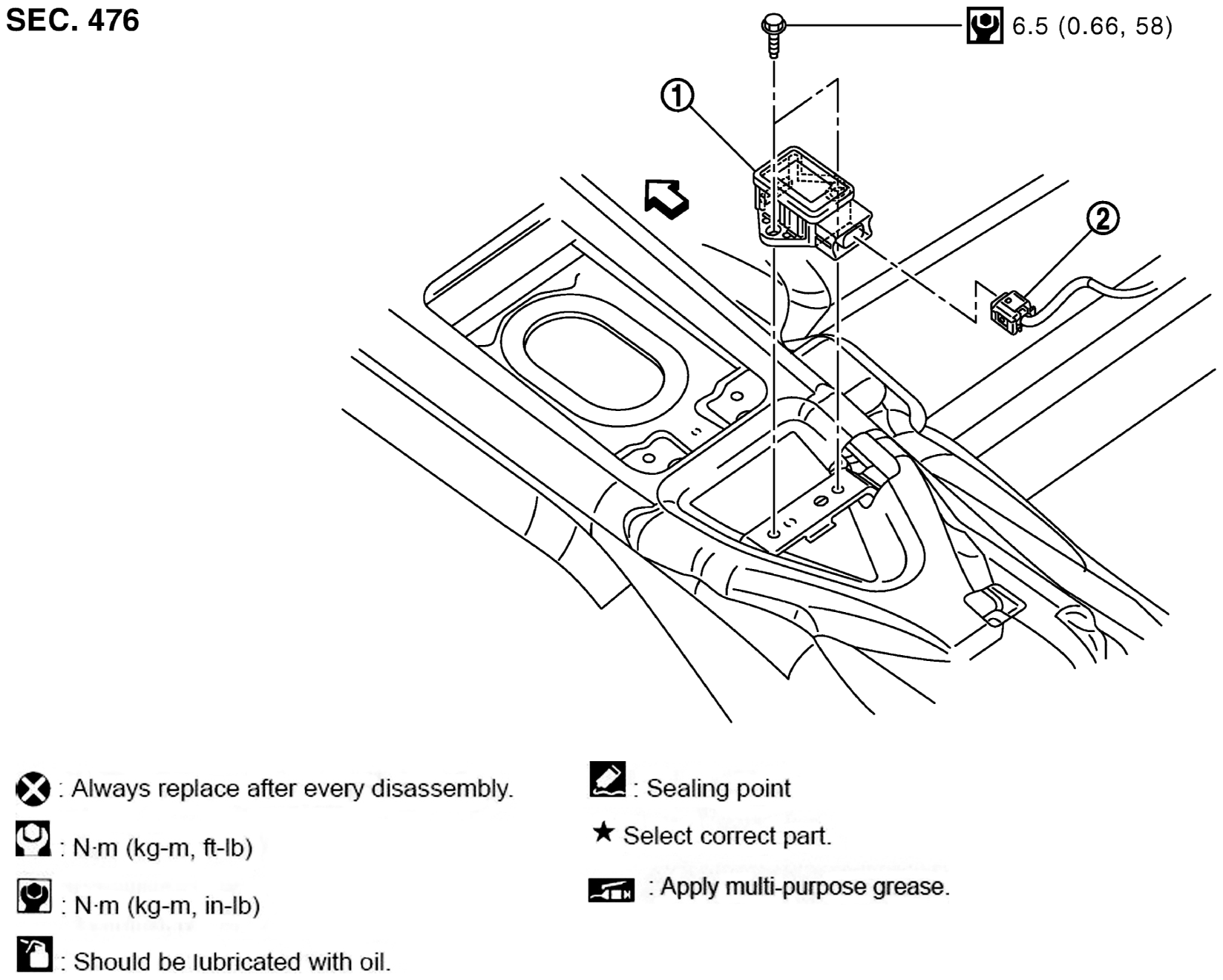

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Yaw Rate/Side G Sensor
2.
Harness connector
: Vehicle front
Refer to
COMPONENTS
for symbols in the figure.
