Q40 AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (VDC/TCS/Abs)
>>
System Description
>>
TCS
>>
System Diagram
System Diagram

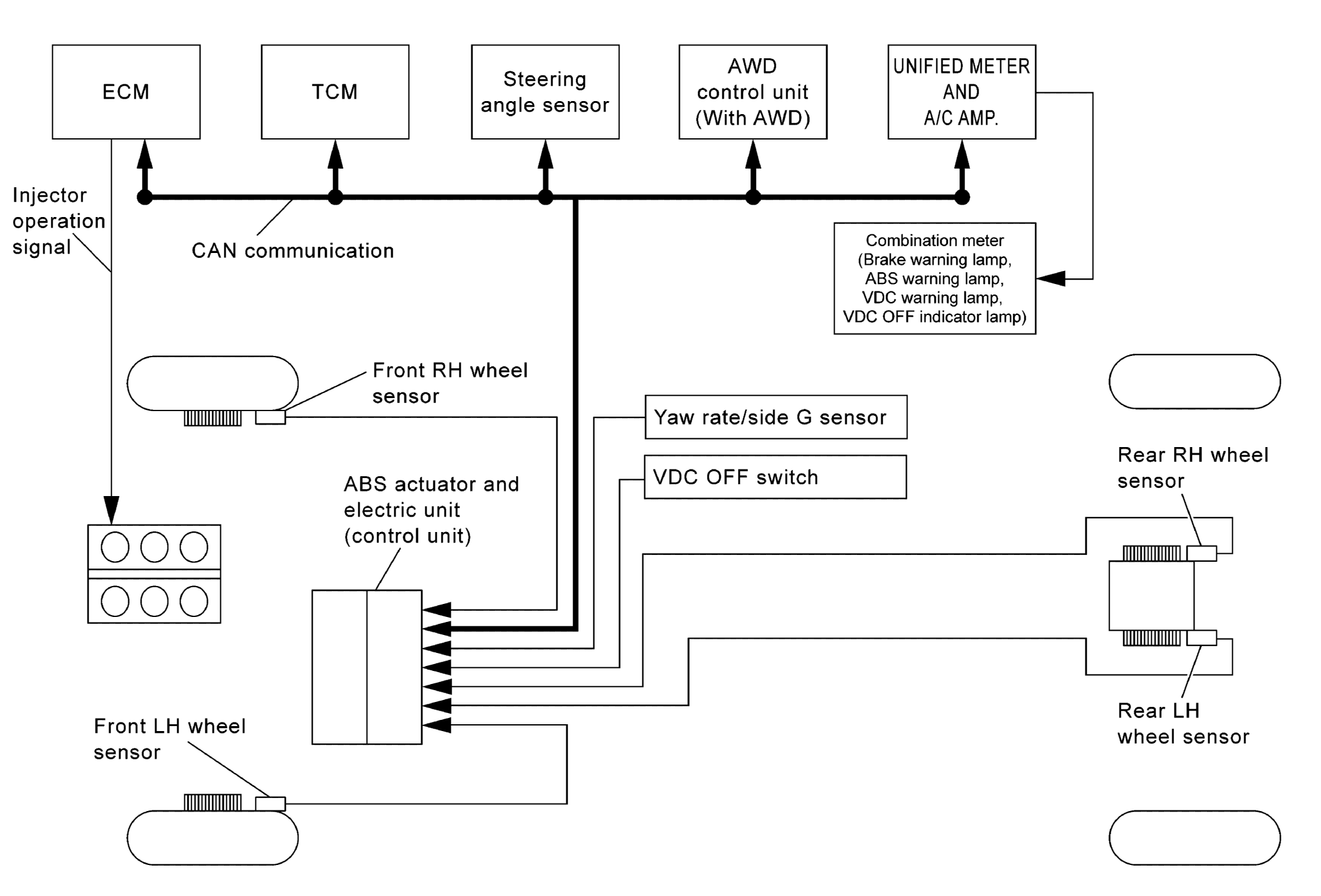

Fig 1: Traction Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
