Front Regulator
>>
Exploded View
Exploded View

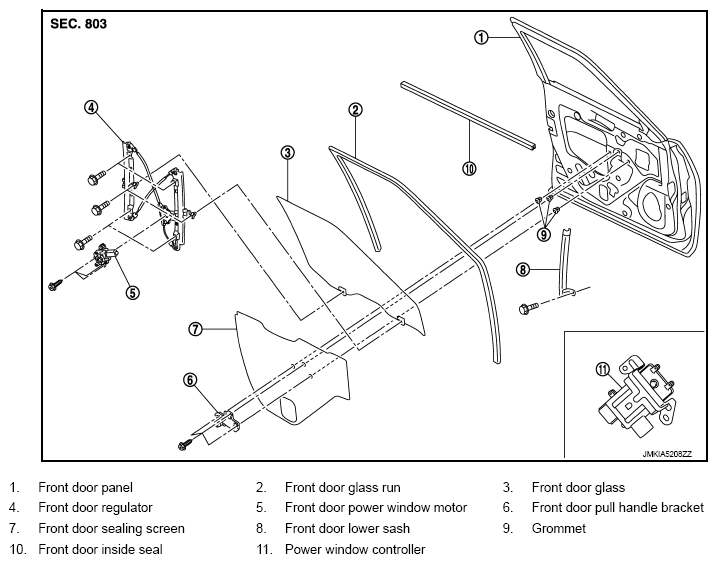

Fig 1: Identifying Exploded View Of Front Regulator
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
