Component Description

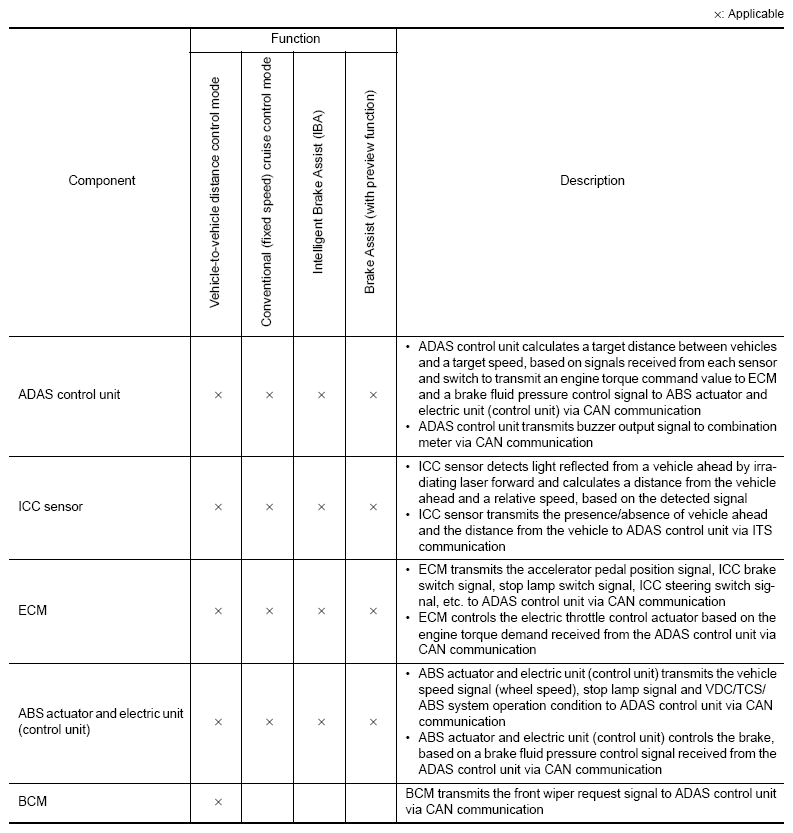

Fig 1: Brake Control System Components Function Chart (1 Of 2)
G08257527Courtesy of NISSAN NORTH AMERICA, INC.

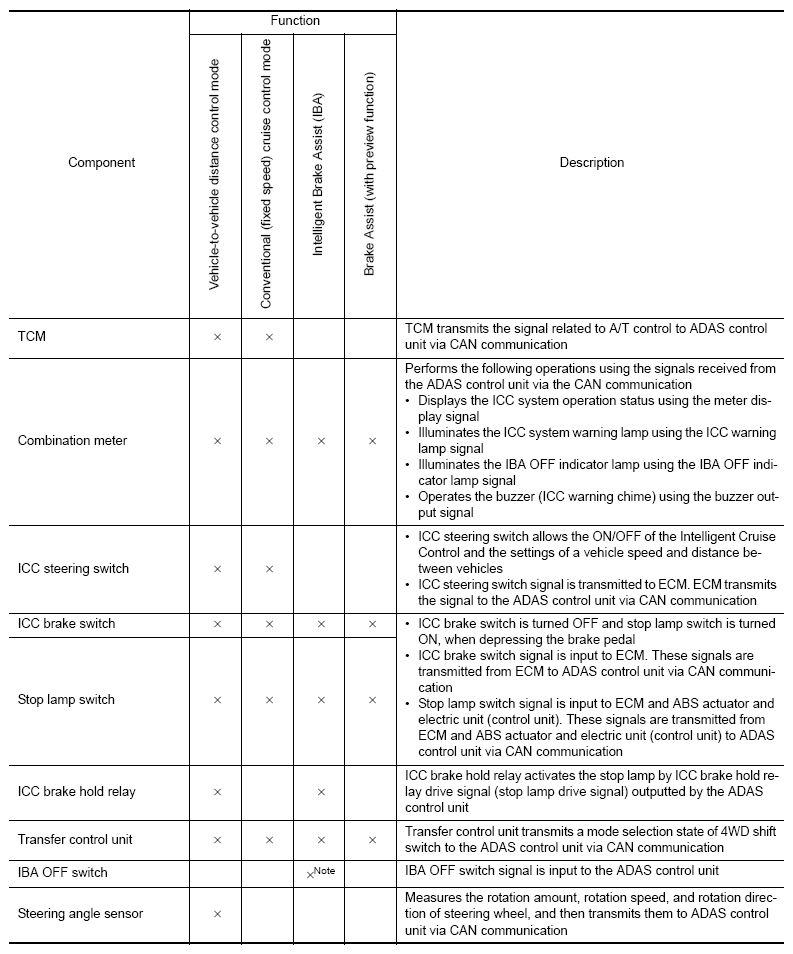

Fig 2: Brake Control System Components Function Chart (2 Of 2)
G08257528Courtesy of NISSAN NORTH AMERICA, INC.
