VK56VD: Exploded View
>>
Disassembly
VK56VD: Exploded View: Disassembly

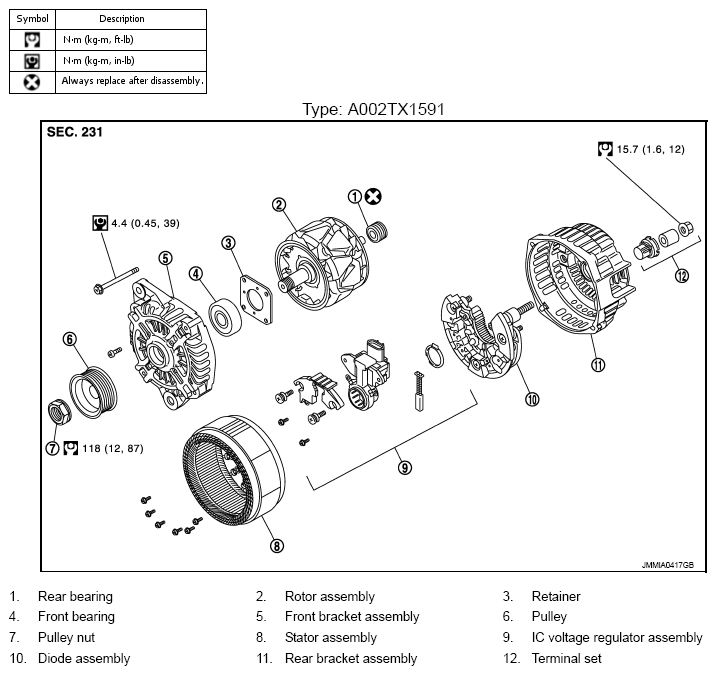

Fig 1: Disassembled View Of Alternator With Torque Specifications (VK56VD)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
