System Description
>>
Description
>>
Engine Lubrication System
Engine Lubrication System

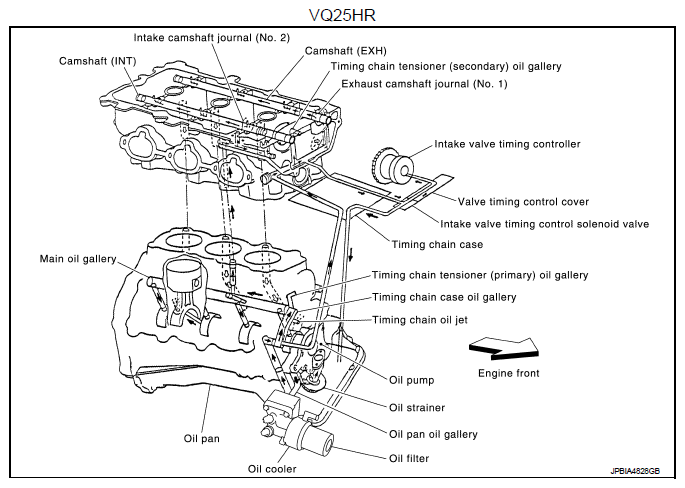

Fig 1: Engine Lubrication System Flow Diagram (VQ25HR)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Without oil cooler for 2WD models.
Fig 2: Engine Lubrication System Flow Diagram (VQ37VHR)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
