Exploded View

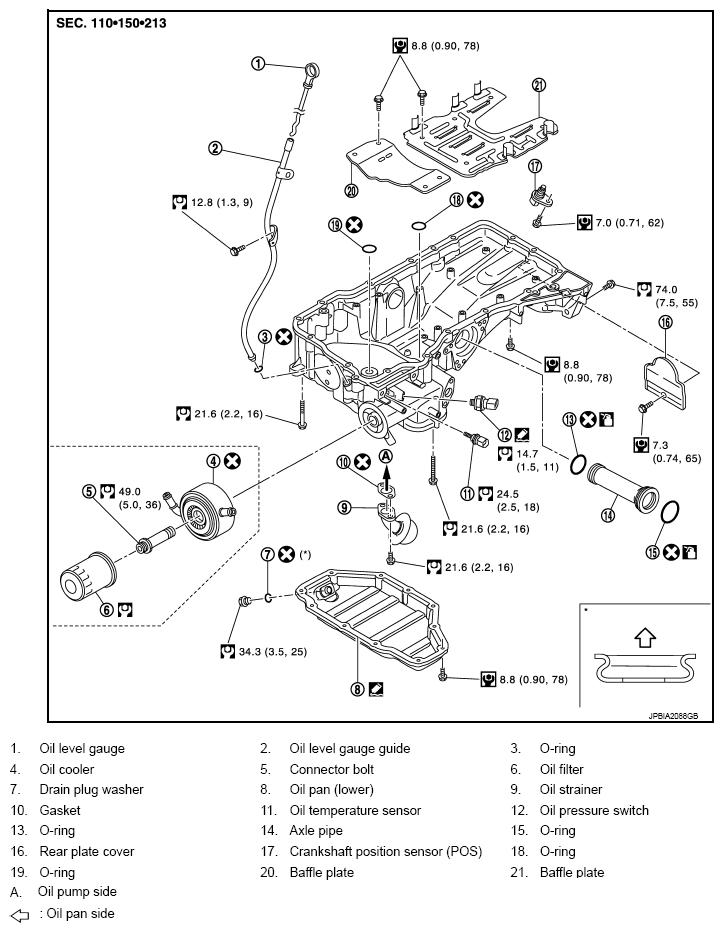

Fig 1: Exploded View Of Oil Pan (Upper) With Torque Specifications

G08215232

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
