Exploded View

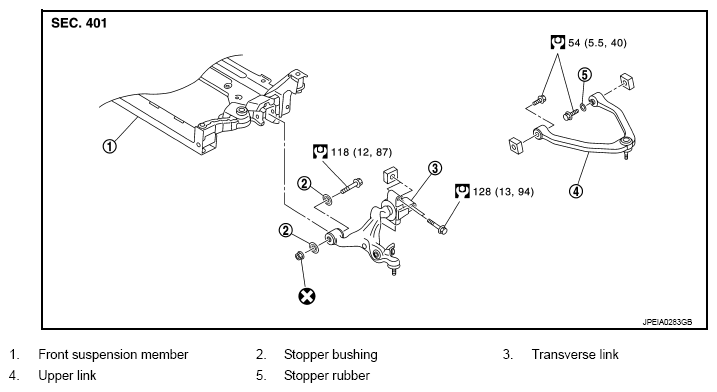

Fig 1: Exploded View Of Transverse Link With Torque Specifications

G08194218

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
