2WD : Exploded View

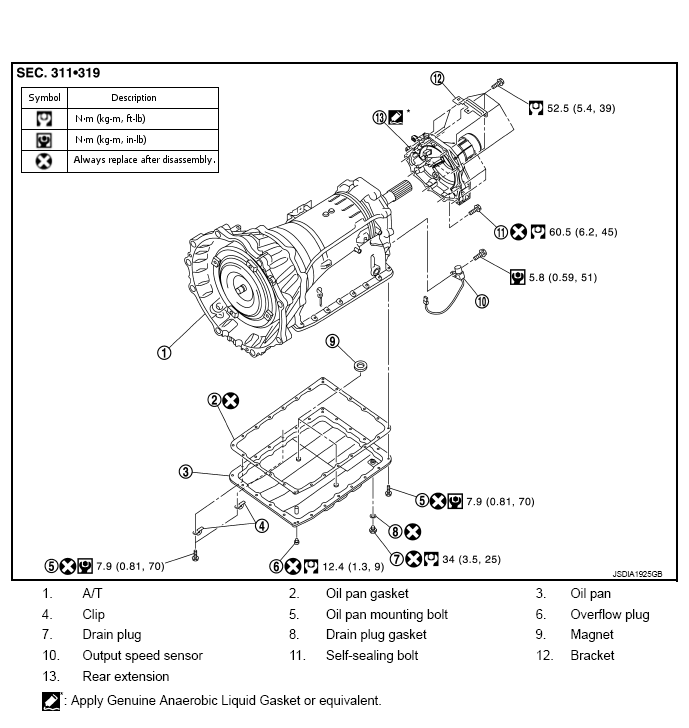

Fig 1: Output Speed Sensor Replacement Components With Torque Specifications (2WD)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
