Home
>>
Infiniti
>>
2011
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Windshield Glass
>>
Exploded View
Exploded View

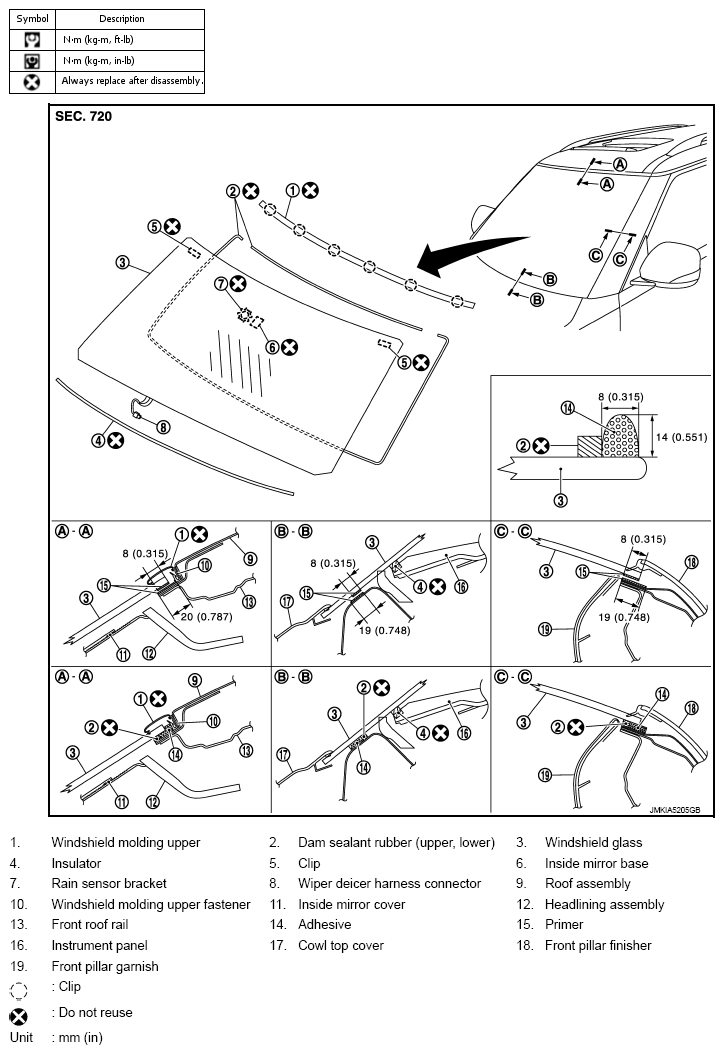

Fig 1: Windshield Glass Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
