Rear Regulator
>>
Exploded View
Exploded View

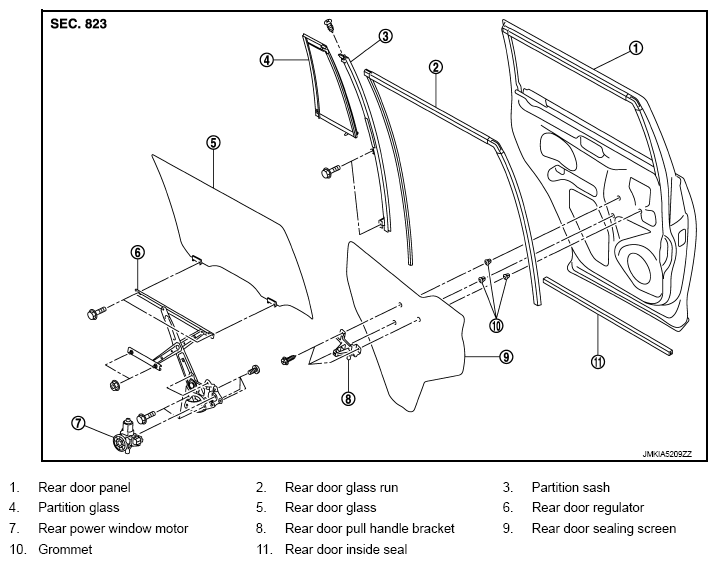

Fig 1: Identifying Rear Regulator Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
