Home
>>
Infiniti
>>
2009
>>
FX50
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
On-Vehicle Repair
>>
Front Door Glass
>>
Exploded View
Exploded View

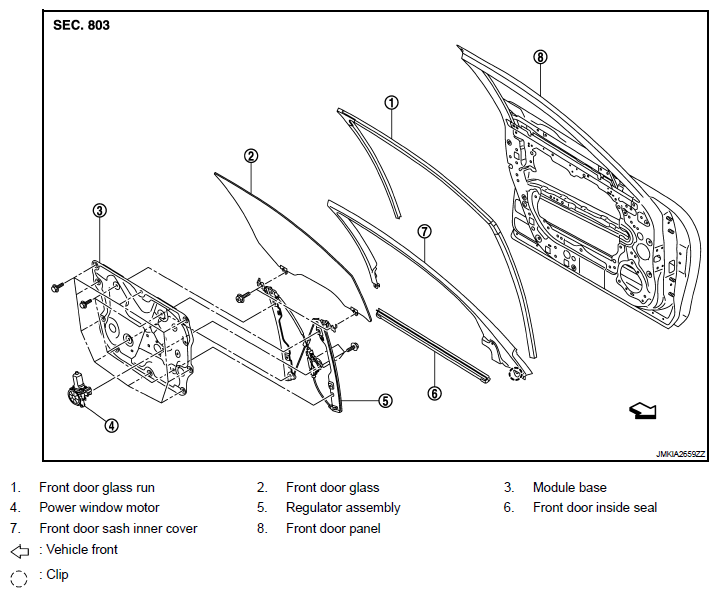

Fig 1: Exploded View Of Front Door
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
