Exploded View
Exploded View

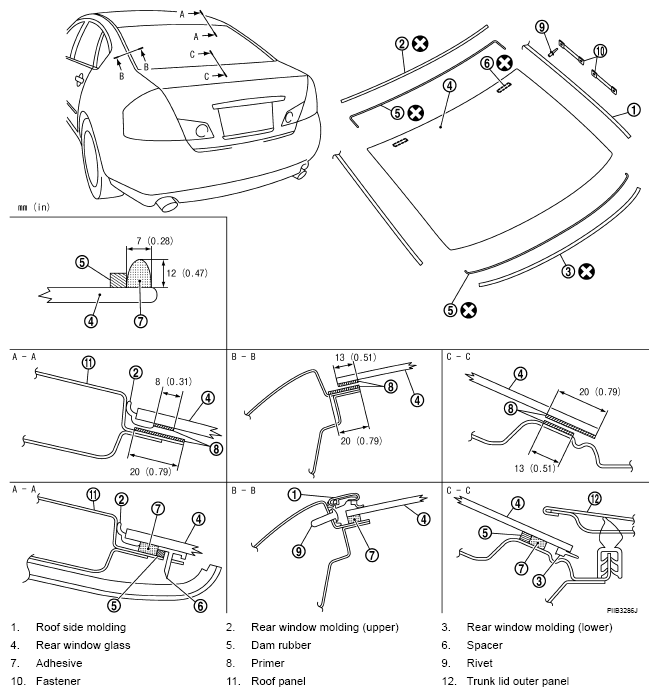

Fig 1: Identifying Rear Window Glass And Molding Gap Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
CONTENTS
for symbols in the figure.
