Power Window System: Schematic

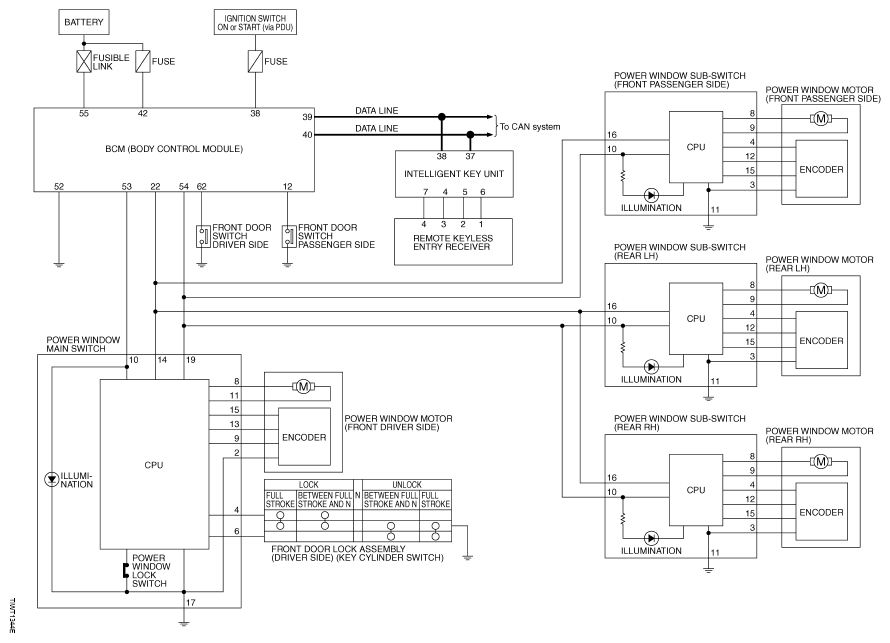

Fig 1: Power Window System - Schematic Diagram

G05212559

Courtesy of NISSAN MOTOR CO., U.S.A.
