Evaporative Emission Line Drawing

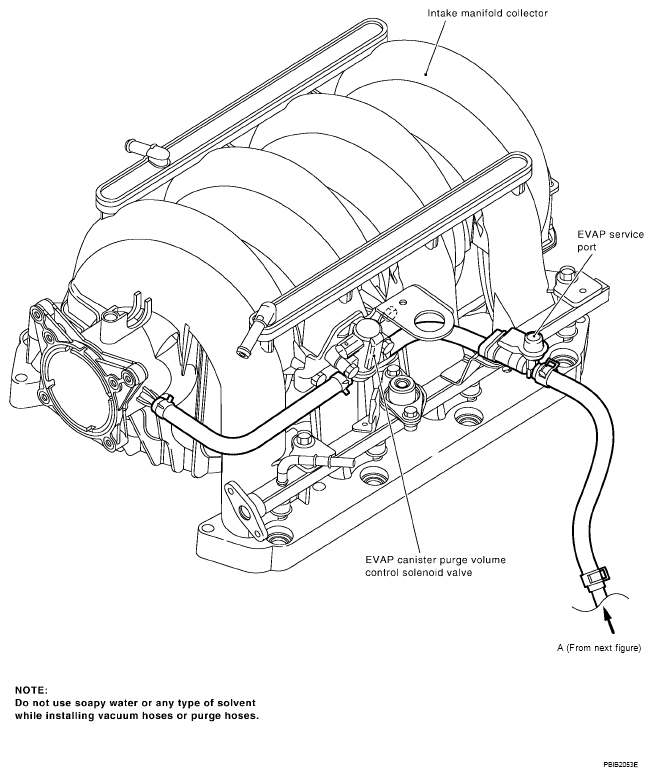

Fig 1: Evaporative Emission Line Drawing (1 Of 2)
G04899991Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Evaporative Emission Line Drawing (2 Of 2)
G04899992Courtesy of NISSAN NORTH AMERICA, INC.
