Automatic Transmission: Overhaul: Components

For GI, go to GENERAL INFORMATION .

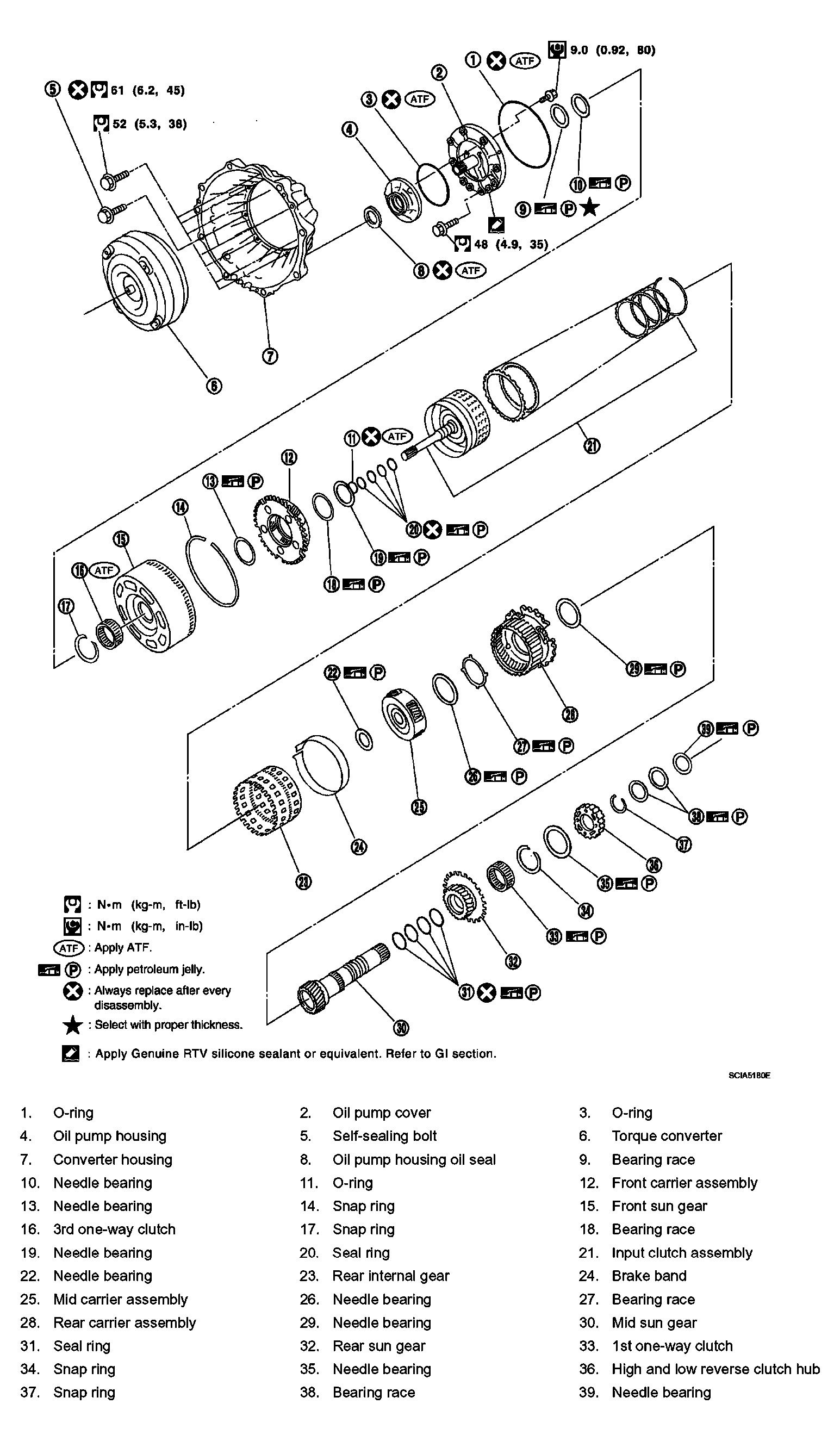

Fig 1: Overhaul Replacement Components With Torque Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

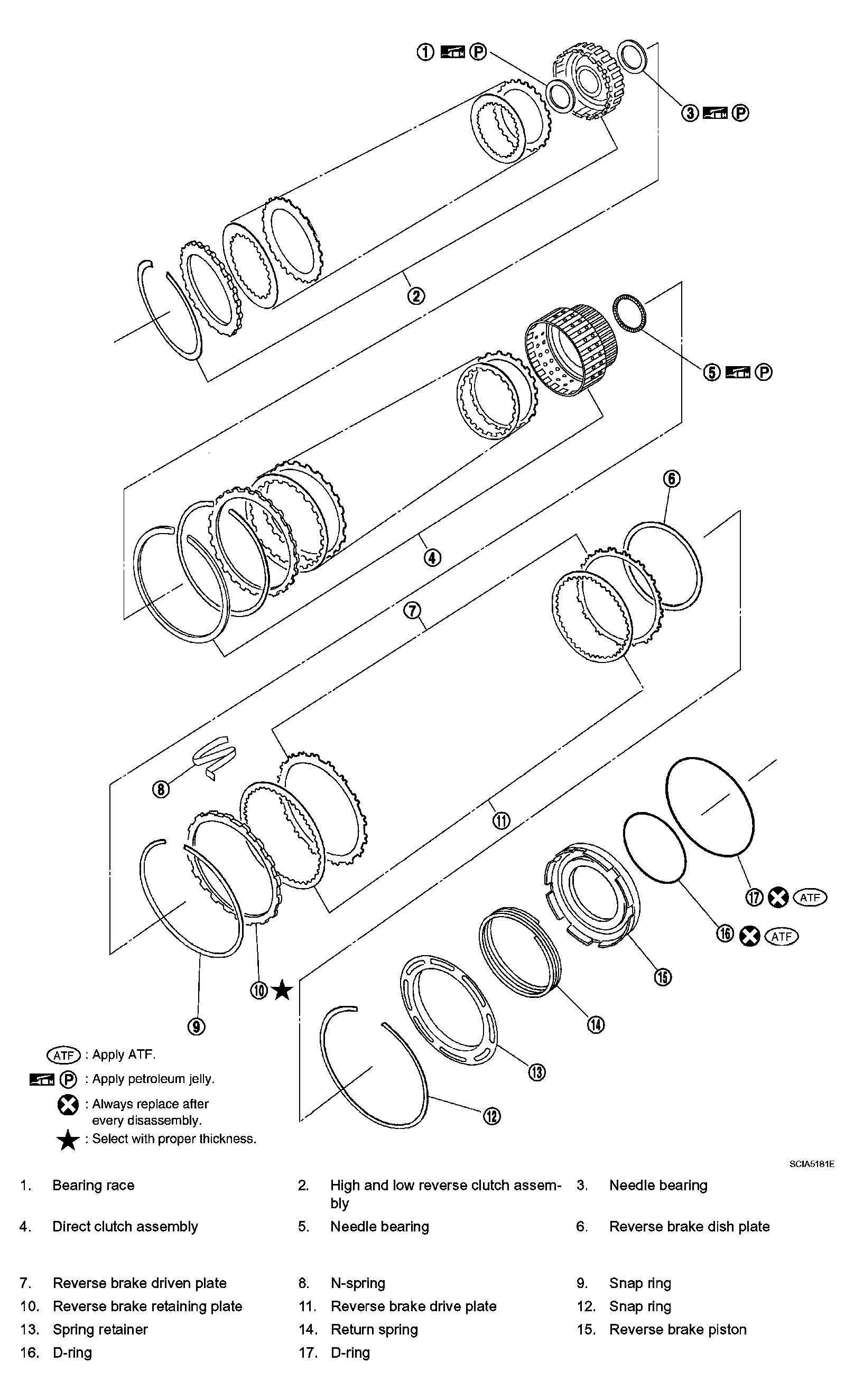

Fig 2: Overhaul Replacement Components With Torque Specifications (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

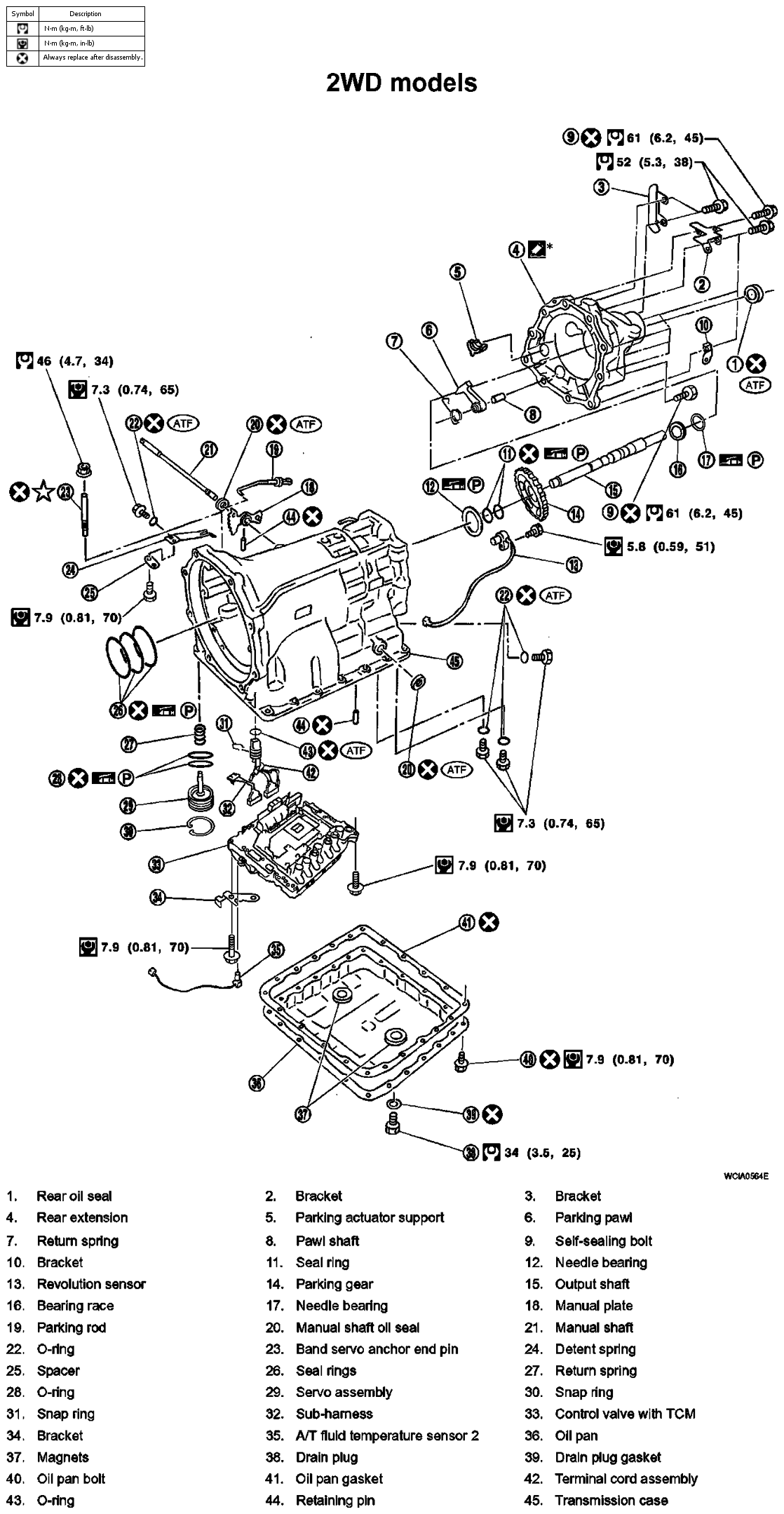

Fig 3: Overhaul Replacement Components With Torque Specifications 2WD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

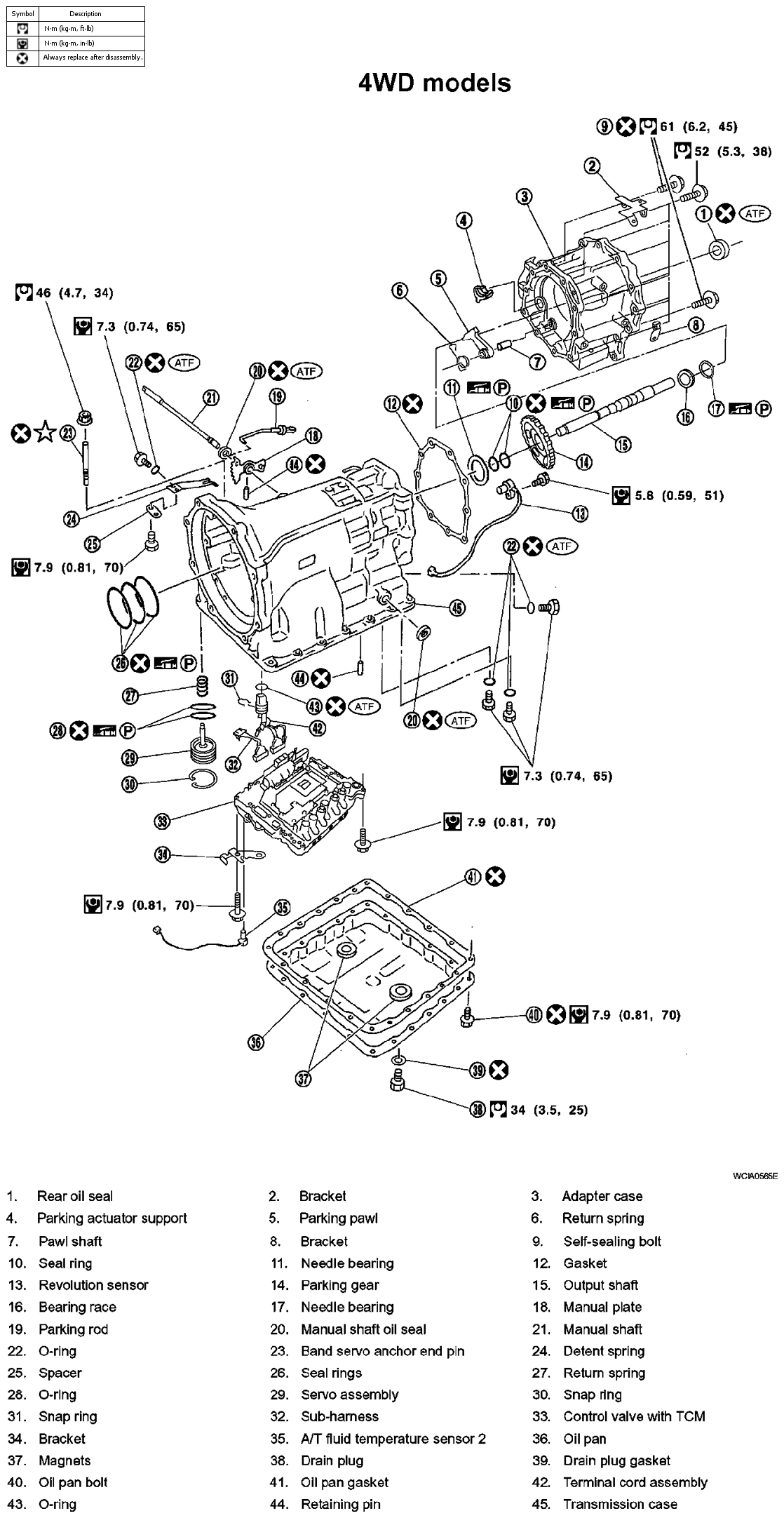

Fig 4: Overhaul Replacement Components With Torque Specifications 4WD Models

Courtesy of NISSAN MOTOR CO., U.S.A.
